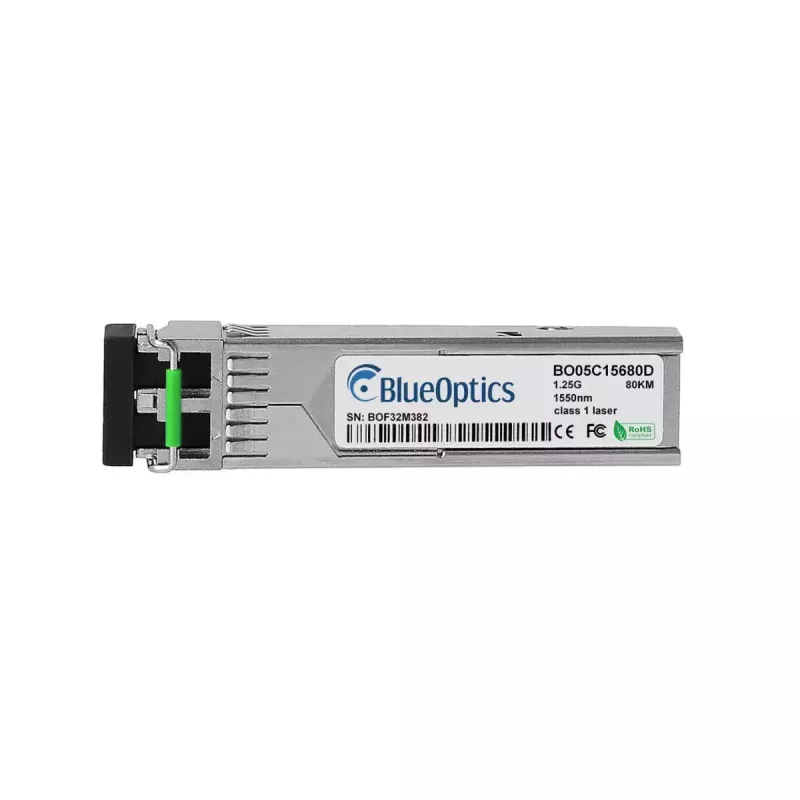

Μονάδα πομποδέκτη SFP BlueOptics 55107207501-BO 1250 Mbit/s

The BlueOptics 55107207501-BO 1250 Mbit/s SFP transceiver module is a compact fiber optic interface designed for SFP-compatible networking equipment. It supports a single-channel data rate up to 1250 Mbit/s and uses an LC fiber connector for duplex multimode or singlemode links. The module is finished in silver and features a compact SFP form factor suitable for switches, routers and media converters where a small, hot-pluggable fiber port is required. Built to meet CE, FCC and RoHS standards, it is specified with a mean time between failures (MTBF) of 1,000,000 hours for long-term reliability.

Advantages

The module offers standardized SFP form factor compatibility and a modest power and size profile for easy installation in crowded racks. With an LC connector and support for 1.25 Gigabit Ethernet signaling, it provides interoperability with common fiber network equipment. Compliance with CE, FCC and RoHS ensures regulatory conformity and environmental safety, while the specified MTBF indicates a design aimed at continuous operation.

Suitable for

• Connecting switches or routers to fiber backbone links
• Extending network segments between buildings or data rooms
• Integration into media converters and SFP ports of networking devices
• Replacing or upgrading existing SFP fiber transceivers

Key specifications

• Maximum data transfer rate: 1250 Mbit/s (1.25 Gbit/s)
• Maximum transfer distance: up to 80,000 m (depending on fiber type and link budget)
• Ethernet interface type: 1.25 Gigabit Ethernet signaling
• Fiber optic connector: LC duplex
• Form factor: SFP (small form-factor pluggable), hot-pluggable
• Weight: approximately 0.02 kg
• Color: silver
• Reliability: MTBF approximately 1,000,000 hours

How to use

Insert the SFP transceiver into an available SFP slot on compatible network equipment while the device is powered according to the manufacturer's hot-plug guidance. Connect the LC fiber patch cable to the module’s LC duplex connector, ensuring correct transmit/receive alignment and that the fiber type and connector polish match the installed transceiver. Configure the network device’s port settings (speed, duplex, optical diagnostics) as required by the network design and verify link status via the device management interface or link LEDs.

Recommendations

Handle the transceiver and fiber connectors using proper ESD precautions and avoid touching optical end faces. Use appropriate fiber cables and verify link budgets for the intended distance. Store protective dust caps on unused connectors to prevent contamination. Refer to the host equipment documentation for supported modules and any firmware compatibility notes before installation.
