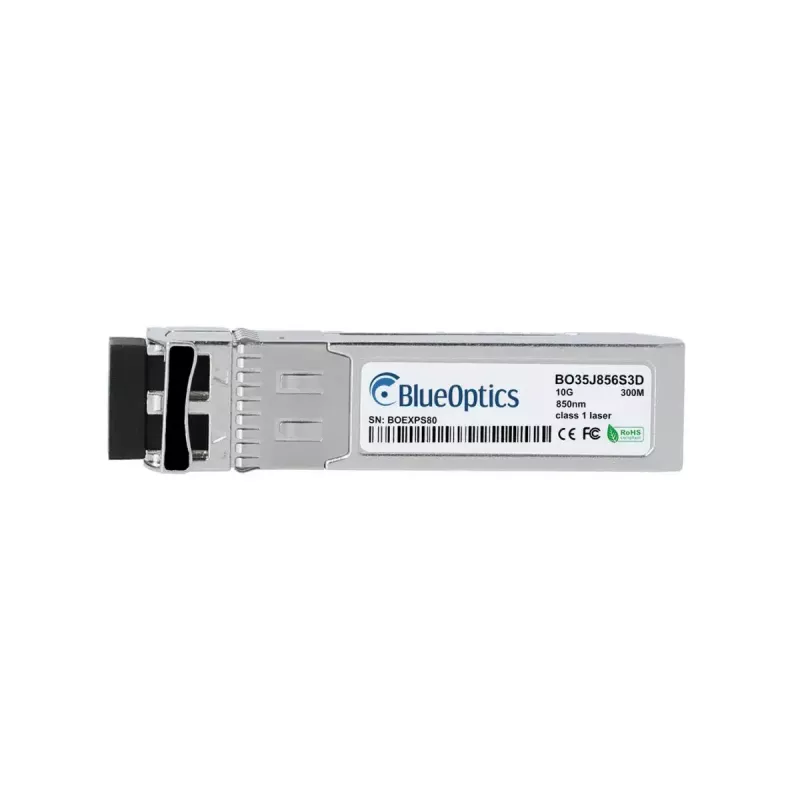

Μονάδα πομποδέκτη SFP BlueOptics 10G-SFP-USR-BO 10000 Mbit/s

The BlueOptics 10G-SFP-USR-BO is a compact fiber optic SFP+ transceiver module designed for 10 Gbit/s networks. Housed in a metal casing and weighing approximately 20 g, the module supports 10G data transmission over multimode fiber with LC duplex connectors and is built to MSA-compliant mechanical and electrical specifications. With an advertised MTBF of 1,000,000 hours, the transceiver is intended for integration into network switches, routers, storage systems and other devices that accept SFP+ pluggable optics.

Advantages

The module provides full SFP+ interface compatibility and supports high-speed optical links up to 10,000 Mbit/s while maintaining a small form factor and metal housing for mechanical durability. Compliance with MSA mechanical and electrical standards facilitates interoperability with a wide range of hardware platforms. The transceiver is lightweight and designed for long operational life, with an MTBF figure that indicates reduced maintenance cycles and consistent availability for link-critical applications.

Suitable for

• 10 Gbit/s Ethernet links in data centers and enterprise networks
• High-speed connections between switches, routers and storage systems
• Short-reach multimode fiber links using LC duplex connectors
• Environments requiring compact SFP+ pluggable optics with metal housings

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)

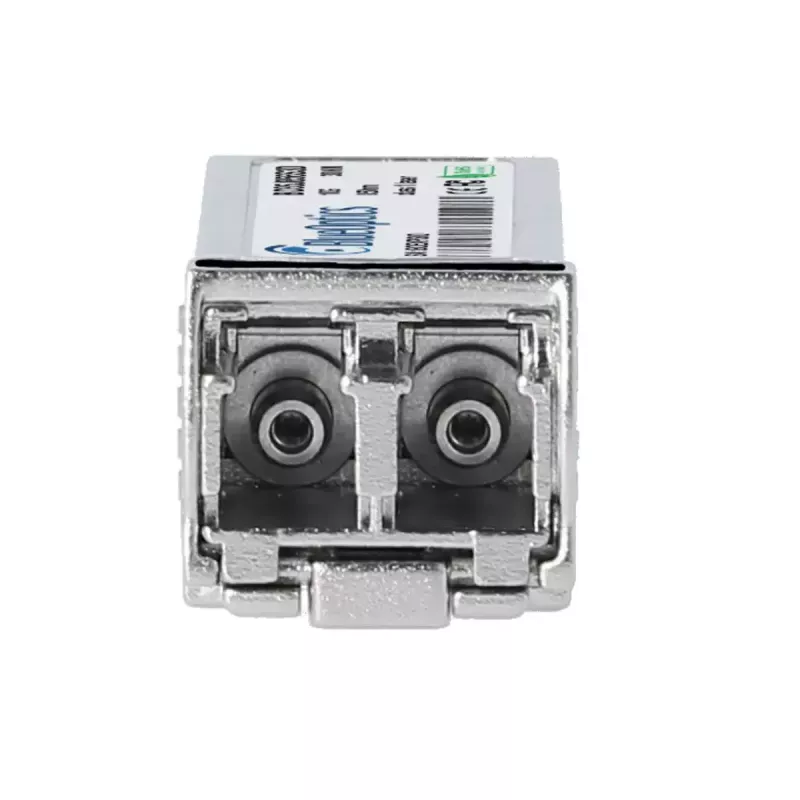

• Connector type: LC duplex (multimode fiber)
• Housing: metal for mechanical durability
• Weight: 0.02 kg
• Product colour: silver
• MTBF: 1,000,000 hours (manufacturing rating for operational life)

How to use

Insert the BlueOptics 10G-SFP-USR-BO transceiver module into a compatible SFP+ port on your switch, router or storage device, ensuring proper alignment and latch engagement. Connect LC duplex multimode fiber patch cords to the transmit and receive ports, observing correct polarity. Verify link negotiation and speed settings on the host device; the module supports 10 Gbit/s operation and typically autonegotiates with compatible hardware. If the host supports digital diagnostics (DDM/DOM), enable the feature in device firmware or management interfaces to monitor optical and electrical parameters in real time.

Recommendations

Use multimode fiber patch cords and patch panels rated for 10 Gbit/s short-reach applications and keep connectors clean to ensure optimal optical performance. Confirm host device compatibility with MSA-compliant SFP+ transceivers and check that DDM/DOM functionality is supported if monitoring is required. For best results, test the transceiver in your specific hardware and cabling environment before large-scale deployment.
