Μονάδα πομποδέκτη οπτικών ινών Trendnet TI-MGBS10

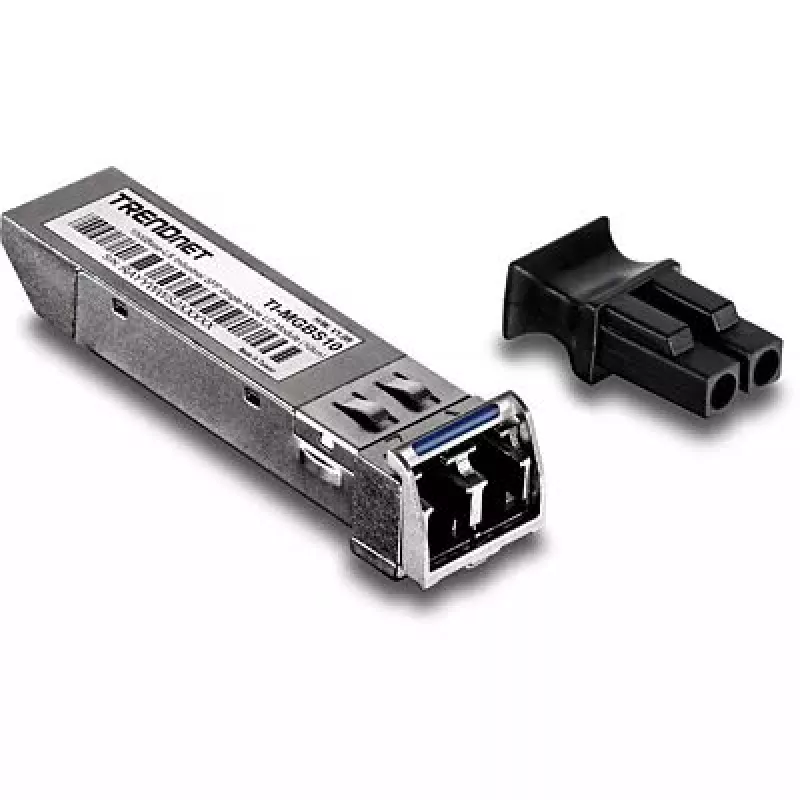

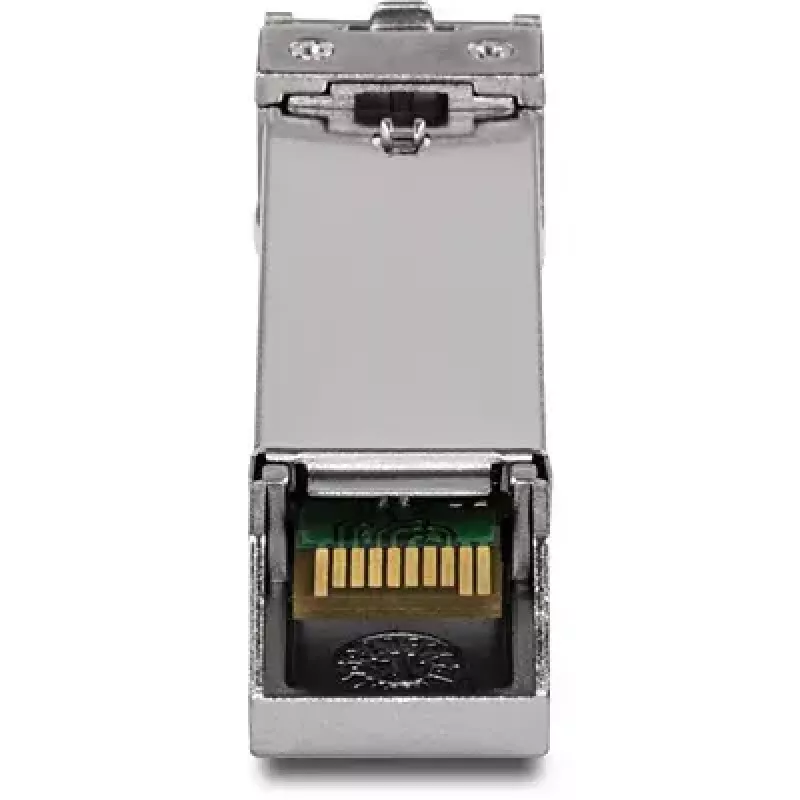

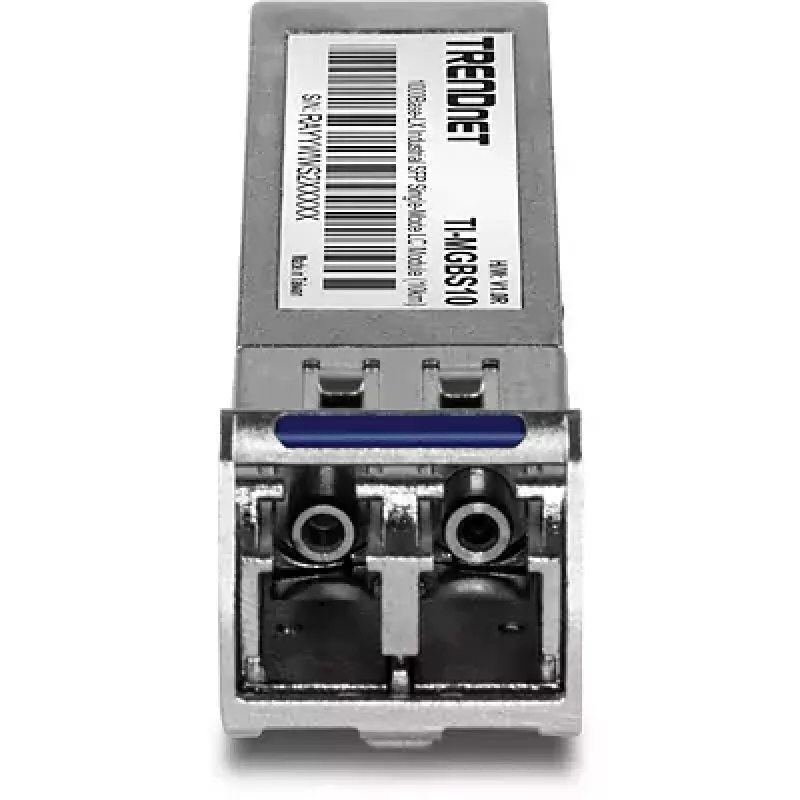

The Trendnet TI-MGBS10 is a 1000Base-LX industrial SFP single-mode transceiver module designed for use in industrial networking equipment. It fits standard SFP slots on industrial switches and fiber converters, uses a Duplex LC connector and supports gigabit single-mode fiber links up to 10 kilometers. The compact metal housing and compliance with MSA, FCC and CE ensure reliable physical compatibility and regulatory conformity while typical power consumption is approximately 1 W.

Advantages

The TI-MGBS10 provides stable gigabit single-mode connectivity over long distances with low power consumption and a small metal form factor suitable for constrained spaces. Compatibility with standard SFP interfaces and Duplex LC connectors simplifies installation in a wide range of industrial network devices. The module is built to operate across industrial temperature ranges and meets common industry standards for interoperability.

Suitable for

• Industrial switches and managed Ethernet equipment
• Fiber media converters and uplink ports
• Long-distance single-mode fiber links up to 10 km
• Environments requiring compact, low-power SFP transceivers

Key specifications

• Model: TI-MGBS10
• Standard: 1000Base-LX (Gigabit Ethernet)
• Interface: SFP, Duplex LC connector
• Maximum data rate: 1250 Mbit/s
• Wavelength: 1310 nm
• Maximum link distance: up to 10 km
• Typical power consumption: ~1 W
• Housing: metal; colour: grey
• Dimensions: 13 × 57 × 8.5 mm
• Weight: 0.019 kg
• Compliance: MSA, FCC, CE

How to use

Insert the TI-MGBS10 into a compatible SFP slot on an industrial switch, router or media converter until it clicks into place, and secure any retention mechanism present. Connect a single-mode Duplex LC fiber cable to the module’s LC ports, observing proper transmit/receive orientation. Configure the host device’s SFP port as required for gigabit operation. Power the host device and verify link status and network parameters via the switch or converter interface.

Recommendations

Use single-mode fiber cabling rated for the intended distance and ensure fiber connectors are clean before installation. Verify the host device supports 1000Base-LX SFP modules and consult device documentation for any required compatibility settings or firmware considerations.
