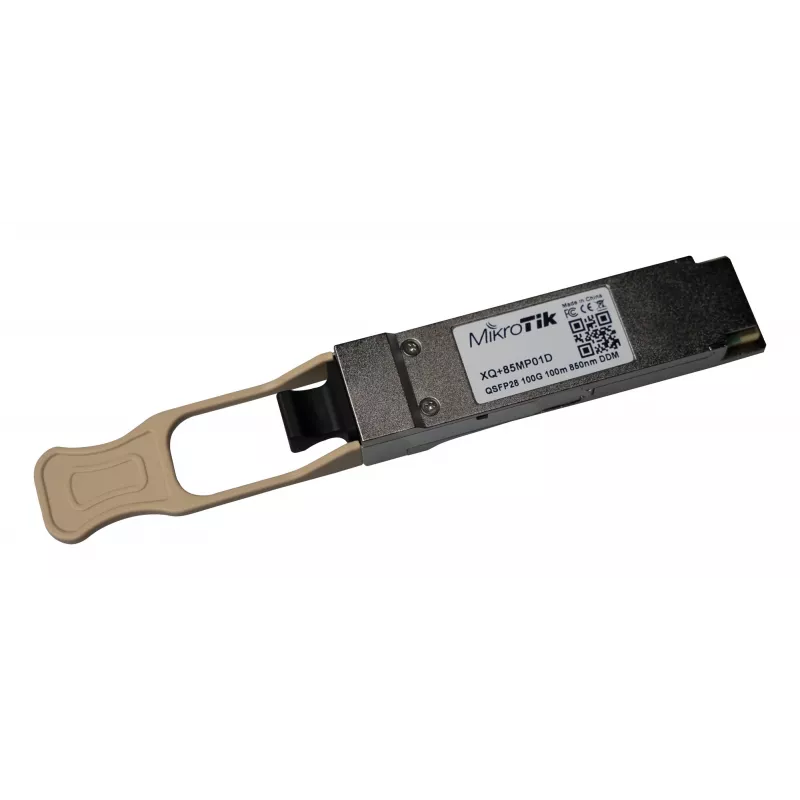

Μονάδα πομποδέκτη οπτικών ινών MikroTik XQ+85MP01D 100000 Mbit/s QSFP28

Add this QSFP module for distances up to 100 meters to your CCR2216, CRS504 or CRS518 setups and enjoy real speed and ultimate reliability. This optical module provides four independent full‑duplex channels with up to 25 Gbps per channel and an aggregate bandwidth of 100 Gbps. The module includes built‑in digital diagnostic functions such as optical power monitoring.

Advantages

The QSFP module is compatible with CCR2216, CRS504 and CRS518 devices and supports short‑reach connections up to 100 meters. Four independent full‑duplex lanes enable high aggregate throughput while preserving per‑channel performance. Integrated digital diagnostics allow real‑time monitoring of optical power and basic status parameters, facilitating maintenance and troubleshooting.

Key specifications

• Form factor: QSFP
• Maximum distance: up to 100 meters
• Channels: 4 independent full‑duplex lanes
• Per channel bandwidth: up to 25 Gbps
• Aggregate bandwidth: 100 Gbps
• Diagnostics: built‑in digital optical power monitoring

How to use

Insert the QSFP module into the appropriate QSFP port on CCR2216, CRS504 or CRS518 devices following the device safety and handling guidelines. Use compatible multimode fiber and ensure correct polarity and connector type. Verify link status and diagnostic readings through the device management interface after installation.

Recommendations

For reliable operation, use certified multimode fiber and compatible transceivers, keep connectors clean, and monitor optical power levels via the module's diagnostic functions to detect signal degradation early.
