Μονάδα πομποδέκτη οπτικών ινών BlueOptics X1672A-R5-BO SFP+ 300m

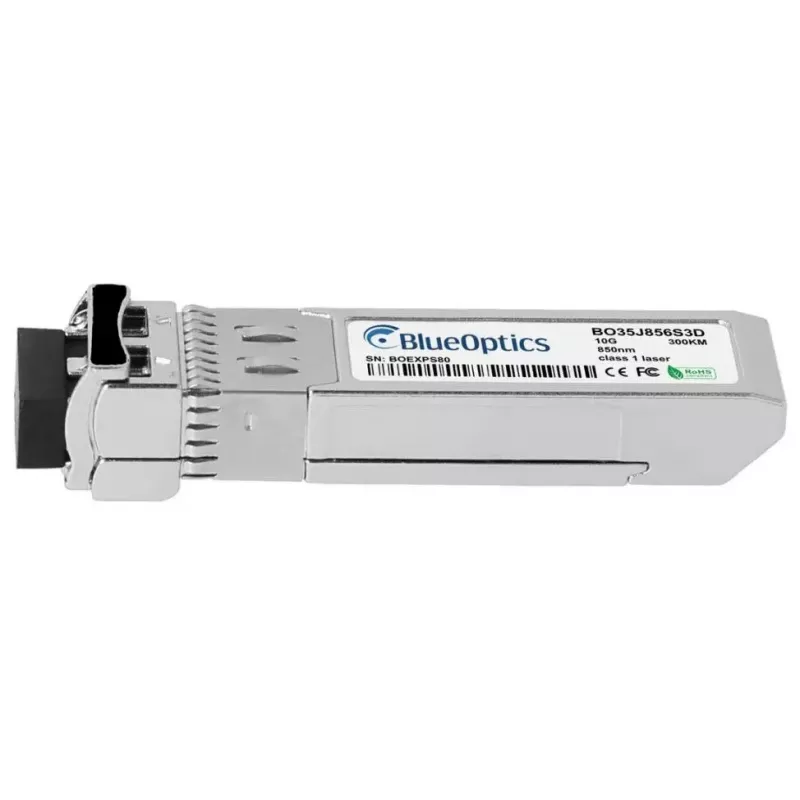

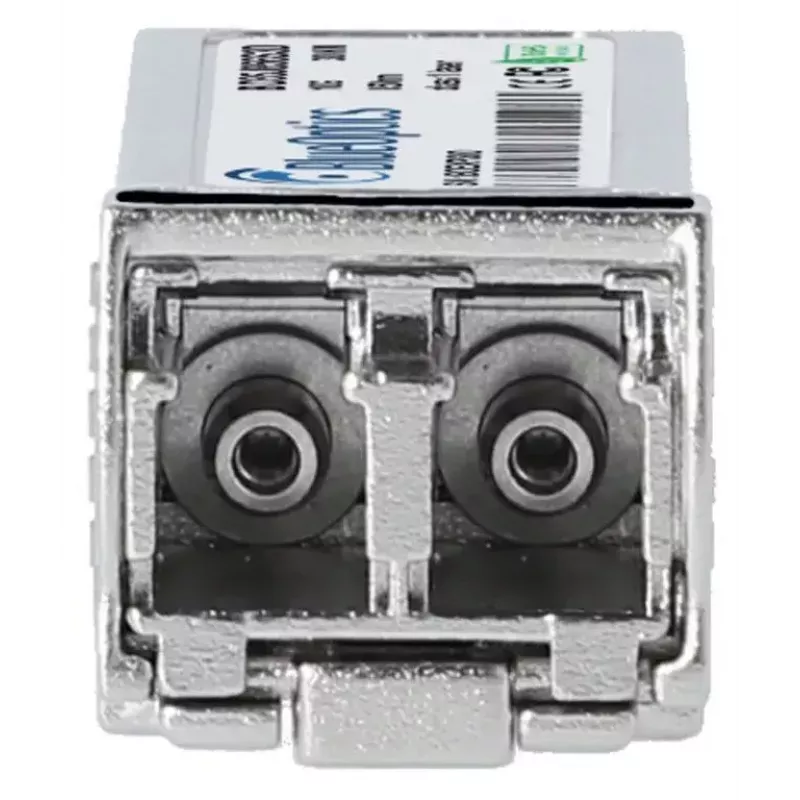

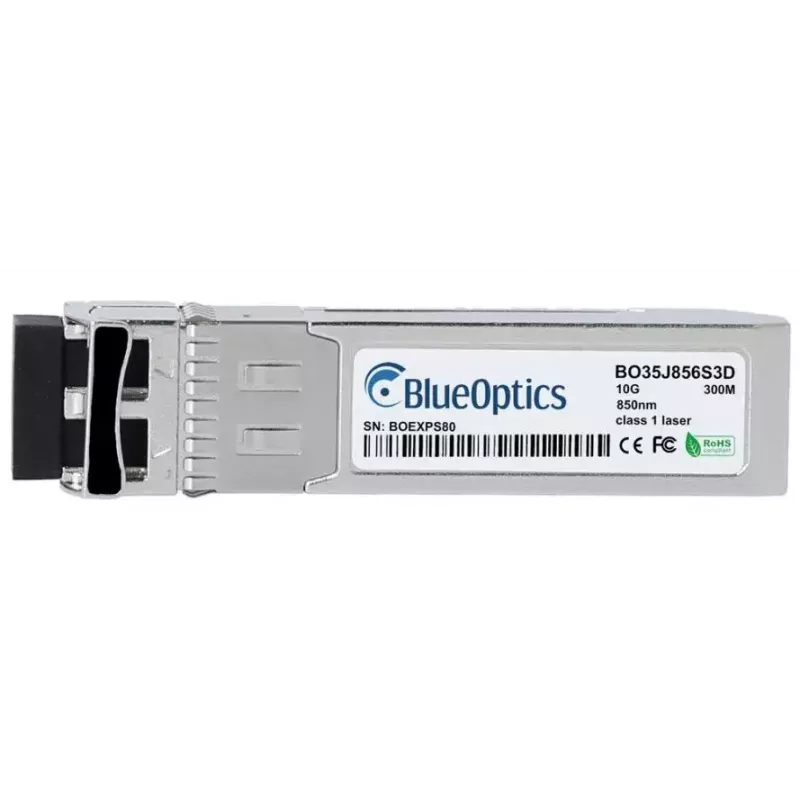

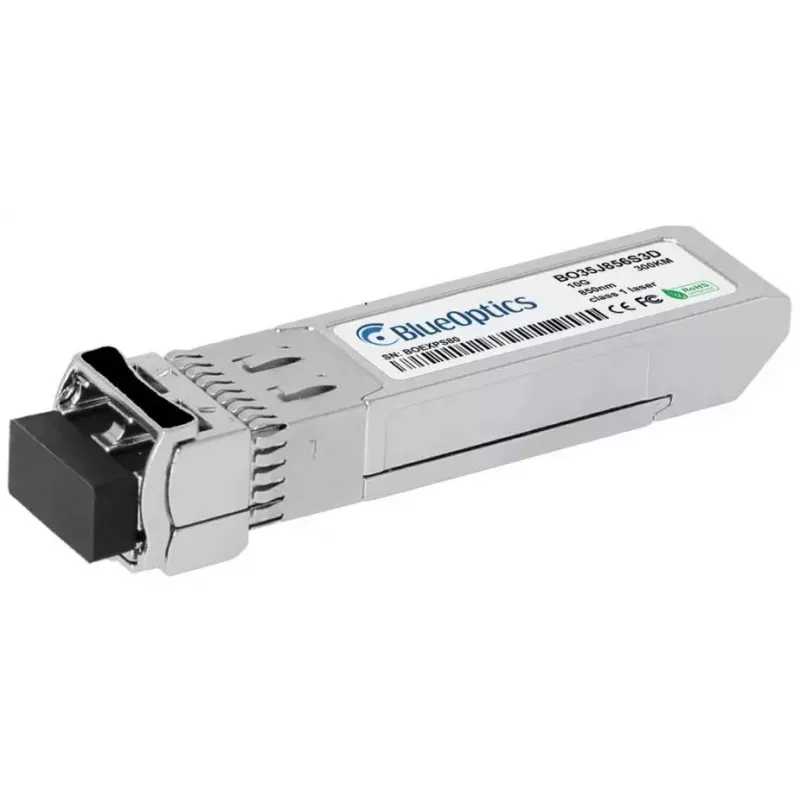

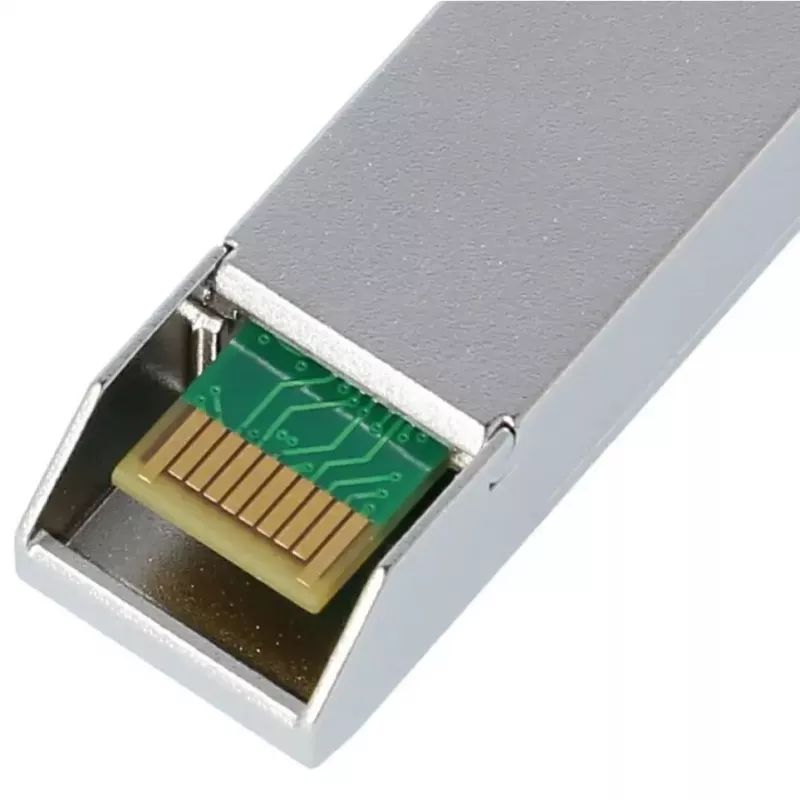

The BlueOptics X1672A-R5-BO SFP+ 300m is a fiber optic transceiver module designed for 10G high-speed data transmission over multimode fiber. Built in an aluminium housing and weighing approximately 20 grams, this SFP+ module uses LC duplex connectors and operates at 850 nm for both transmit and receive, supporting transmission distances up to 300 meters. The module follows MSA-compliant SFP+ form-factor standards and is suitable for use in networking equipment that accepts LC duplex 10GBASE-SR optics.

Advantages

The module provides 10GBASE-SR performance with simultaneous send and receive capability via LC duplex optical connections and is compatible with equipment that supports standard SFP+ 10G optics. Its aluminium enclosure offers a durable and lightweight solution for rack and chassis installations. The transceiver supports Digital Diagnostics Monitoring (DDM/DOM) for real-time reporting of operating parameters such as supply voltage, laser bias current, optical output/received power and temperature, facilitating remote diagnostics and maintenance.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP+ module into a compatible SFP+ port on a switch, router or storage device until it clicks into place, then connect LC duplex multimode fiber patch cords to the Tx and Rx ports. Verify device compatibility and enable any necessary port settings in your equipment’s management interface. If available, enable DDM/DOM monitoring in the host device to view realtime diagnostics for supply voltage, laser current, optical power and temperature. Follow standard ESD precautions during handling and use protective caps on unused connectors to avoid contamination.

Recommendations

For optimal performance, use multimode OM3/OM4 patch cords and maintain clean connector endfaces. Confirm that the host hardware supports SFP+ 10GBASE-SR modules and DDM/DOM if diagnostic monitoring is required. When replacing optics, power down or disable the port if recommended by the equipment vendor, and perform link tests after installation to ensure expected throughput and signal levels.
