Μονάδα πομποδέκτη οπτικών ινών BlueOptics AA1419051-E6-BO 40000 m

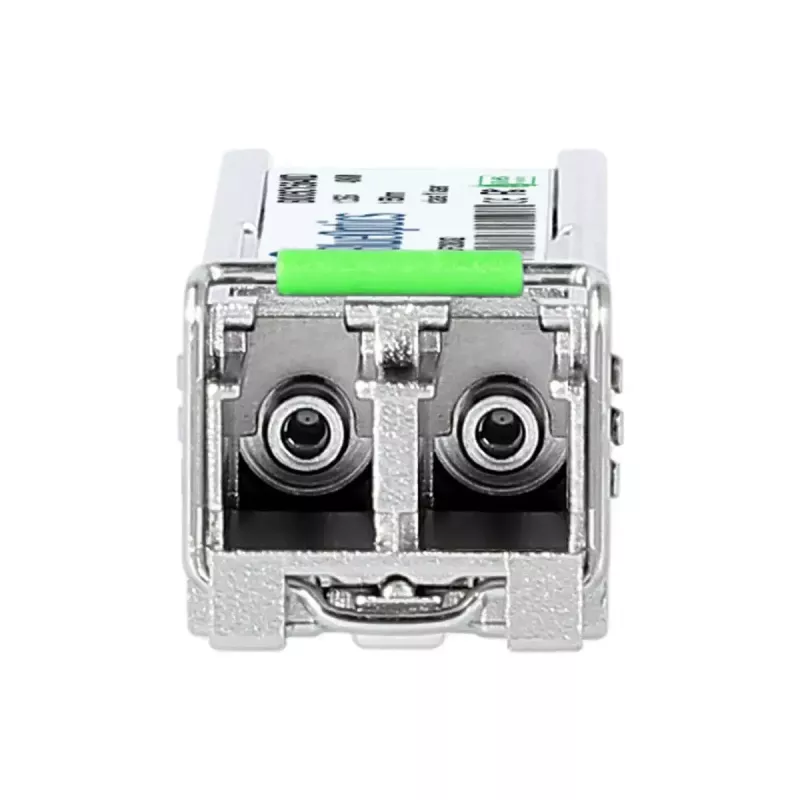

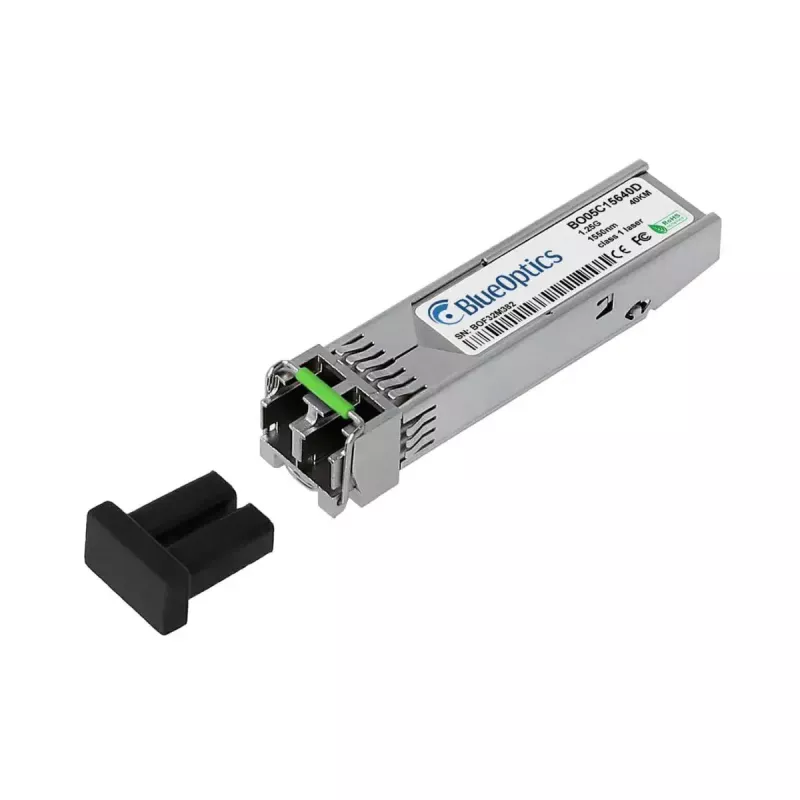

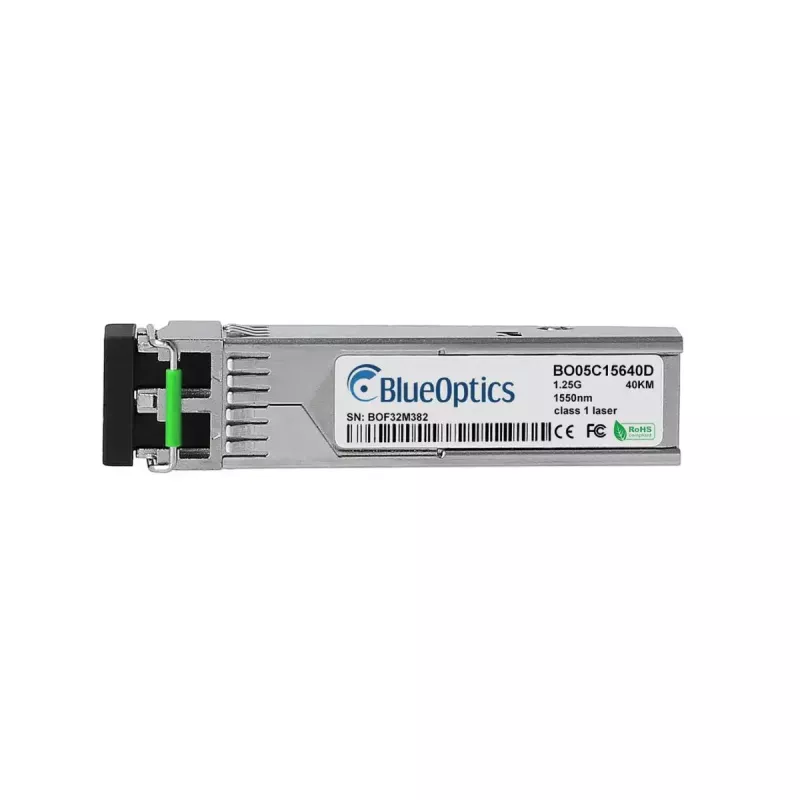

The BlueOptics AA1419051-E6-BO is a single‑mode SFP fiber optic transceiver module designed for long-distance high‑speed links up to 40,000 m. Housed in an aluminium casing and weighing approximately 40 g, this compact module provides LC duplex connectivity and supports optical transmission and reception at 1550 nm. It follows MSA mechanical standards for SFP modules and is intended for use in network equipment that accepts standard SFP transceivers.

Advantages

This transceiver delivers reliable single‑mode optical transmission over extended distances while remaining lightweight and robust due to its aluminium housing. It supports widely used optical protocols and interfaces, enabling interoperability with major networking platforms that accept standard SFP modules. The module is compatible with LC duplex cabling and offers digital diagnostic monitoring (DDM/DOM) capabilities when supported by the host device, allowing remote logging of supply voltage, laser bias current, optical output and input power, and internal temperature.

Suitable for

• Long‑reach Ethernet connections up to 40 km
• Interconnects between switches, routers and storage systems
• Optical uplinks in enterprise and carrier networks
• Replacement or spare SFP ports in compatible hardware

Key specifications

• Interface type: SFP (Small Form‑Factor Pluggable)
• Optical wavelength: 1550 nm (transmit and receive)
• Maximum link distance: up to 40,000 m (40 km) over single‑mode fiber
• Connector: LC duplex
• Supported data rate: 1.25 Gbps (1000BASE‑EX / Gigabit applications)
• Housing material: aluminium
• Weight: approx. 0.04 kg
• Digital diagnostics: DDM/DOM compliant with SFF‑8472 (if supported by host)

How to use

Insert the SFP module into a compatible SFP slot on your switch, router or other networking device while the device is powered down or following the vendor’s hot‑swap instructions. Connect LC duplex single‑mode fiber patch cords to the transceiver’s LC ports, ensuring correct transmit/receive orientation. Verify link status in the host device and enable or confirm DDM/DOM monitoring in the equipment firmware if you require real‑time diagnostic data. Follow your equipment vendor’s guidance for firmware compatibility and any required configuration to accept third‑party SFP modules.

Recommendations

To ensure optimal performance, use high-quality single‑mode LC duplex cables and keep connectors clean. Check host device compatibility and firmware settings before deployment and enable digital diagnostics only if the host supports SFF‑8472. For long-term stability, secure fiber runs to avoid bending below the manufacturer’s minimum bend radius and install modules in environments that meet the equipment’s thermal and humidity specifications.
