Μονάδα πομποδέκτη οπτικών ινών BlueOptics AA1419015-E5-BO SFP LC αλουμίνιο

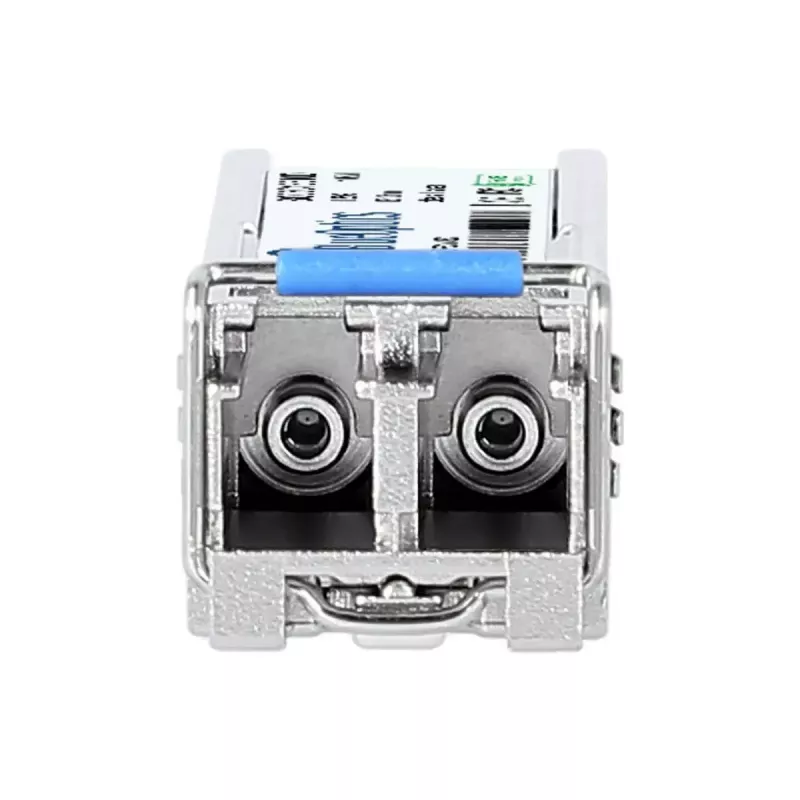

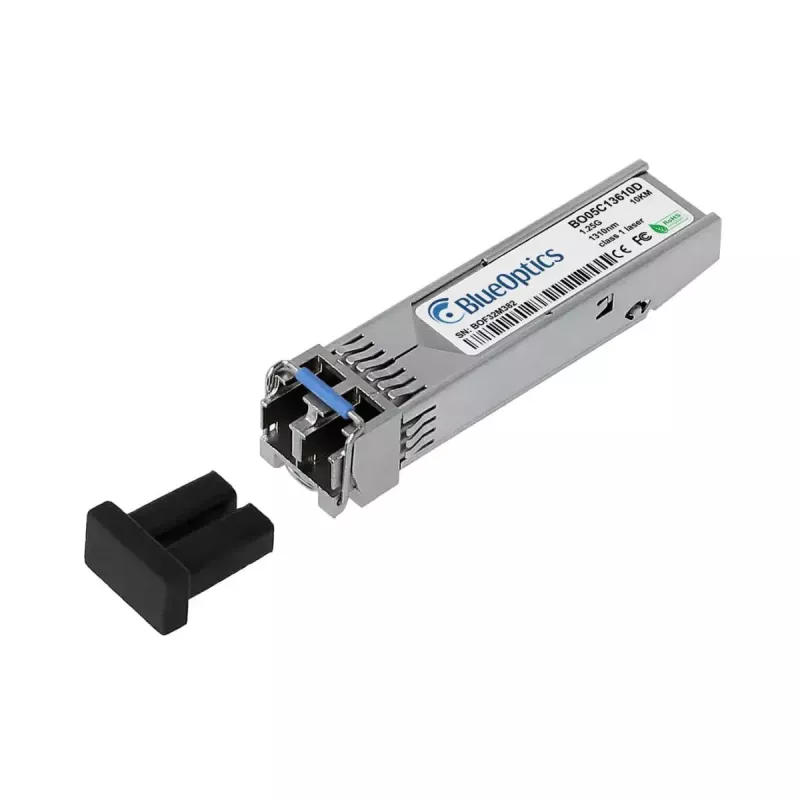

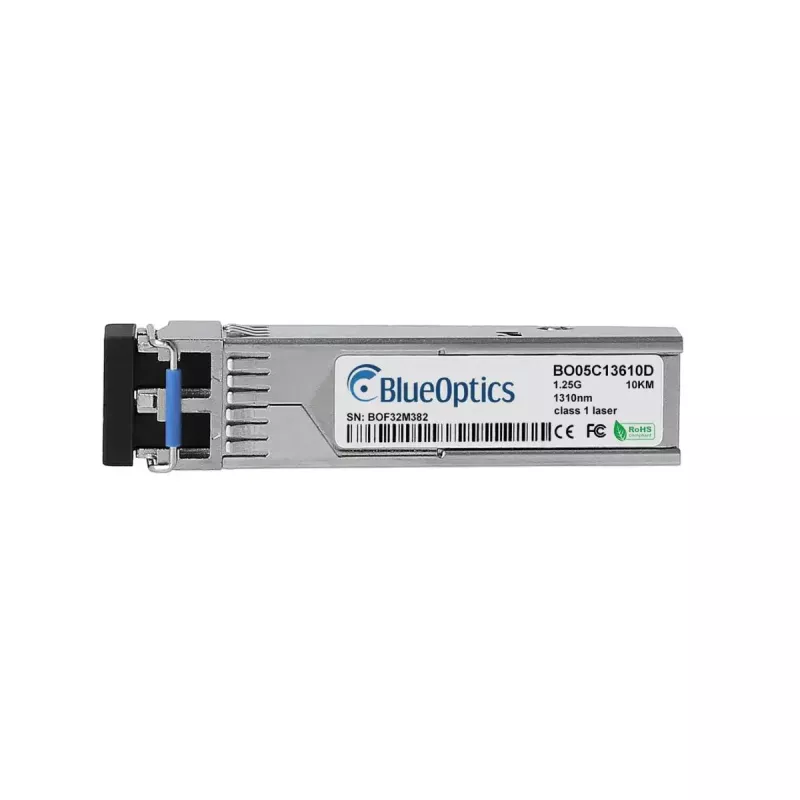

The BlueOptics AA1419015-E5-BO SFP LC Aluminium is a single-port fiber optic transceiver module designed for 1000BASE-LX applications. Constructed with an aluminium housing and an LC duplex connector, this SFP module supports single-mode fiber transmission and weighs approximately 20 g. It follows MSA-compliant SFP form factor conventions and is intended for use where reliable gigabit optical links are required over longer distances.

Advantages

This module provides standardized SFP connectivity with an LC interface and an aluminium casing that offers mechanical durability while remaining lightweight. It supports 1000BASE-LX optical transmission using single-mode fiber and is compatible with devices that accept MSA-compliant SFP transceivers. The transceiver is engineered for interoperability with common network hardware that supports the corresponding original module type and includes support for optical data transfer up to typical gigabit rates.

Suitable for

• Gigabit Ethernet uplinks between switches and routers over single-mode fiber
• Longer-distance optical links in campus and metro networks
• Interconnecting storage systems and servers where SFP ports are available
• Replacement or spare transceiver in MSA-compliant networking equipment

Key specifications

• Form factor: SFP (Small Form-factor Pluggable)
• Connector: LC duplex
• Optical type: single-mode fiber support (1000BASE-LX class)
• Typical data rate: gigabit class (up to 1.25 Gbps protocol rate)
• Housing material: aluminium
• Weight: approximately 0.02 kg

How to use

Install the transceiver by inserting the SFP module into a compatible SFP slot on your switch, router or other network device until it latches. Connect LC duplex single-mode fiber patch cords to the module’s LC connector with correct transmit/receive orientation. Ensure the host device is configured to recognize standard SFP modules and that any required interface settings (speed/duplex or protocol) are set according to the network design. Power up the equipment and verify link/activity indicators and interface status in the device management console.

Recommendations

Use quality single-mode LC patch cords and, where applicable, clean connector endfaces before mating to ensure optimal signal quality. Verify that the network equipment firmware or software supports third-party or compatible SFP modules and enable DDM/DOM monitoring on the host if real-time optical diagnostics are required and supported by the hardware.
