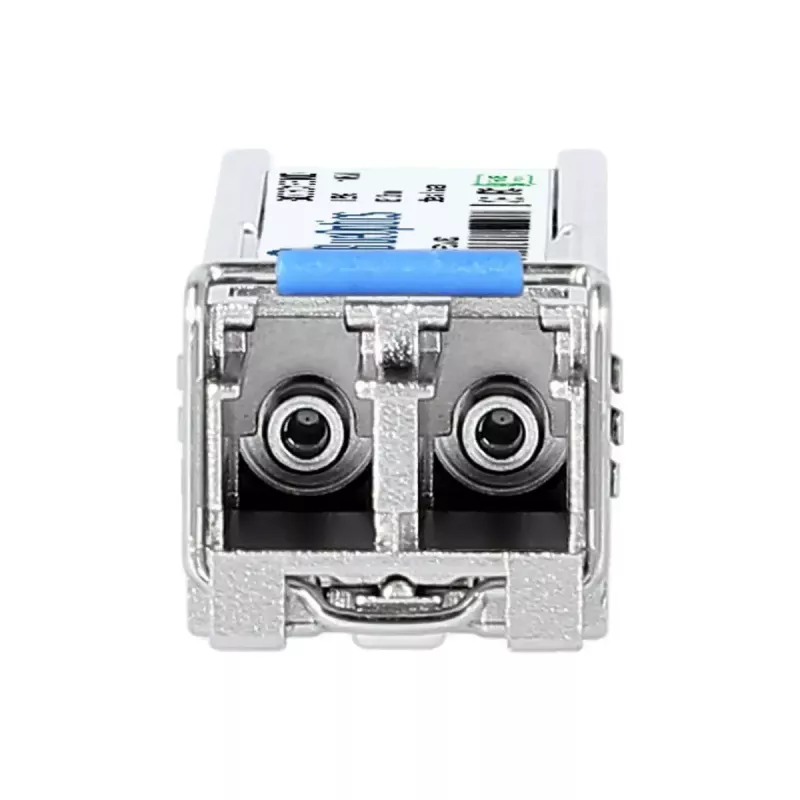

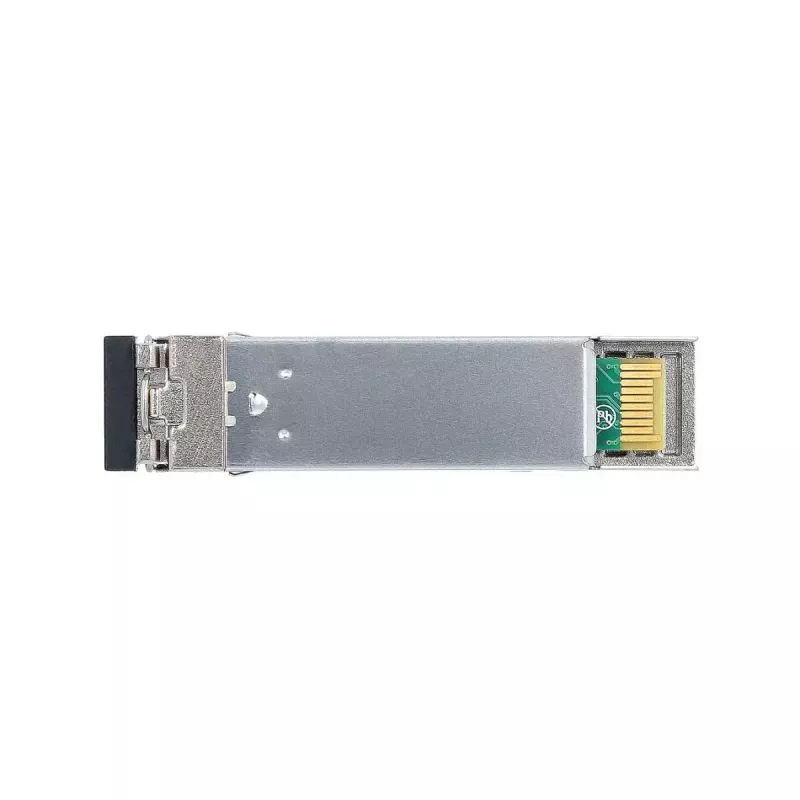

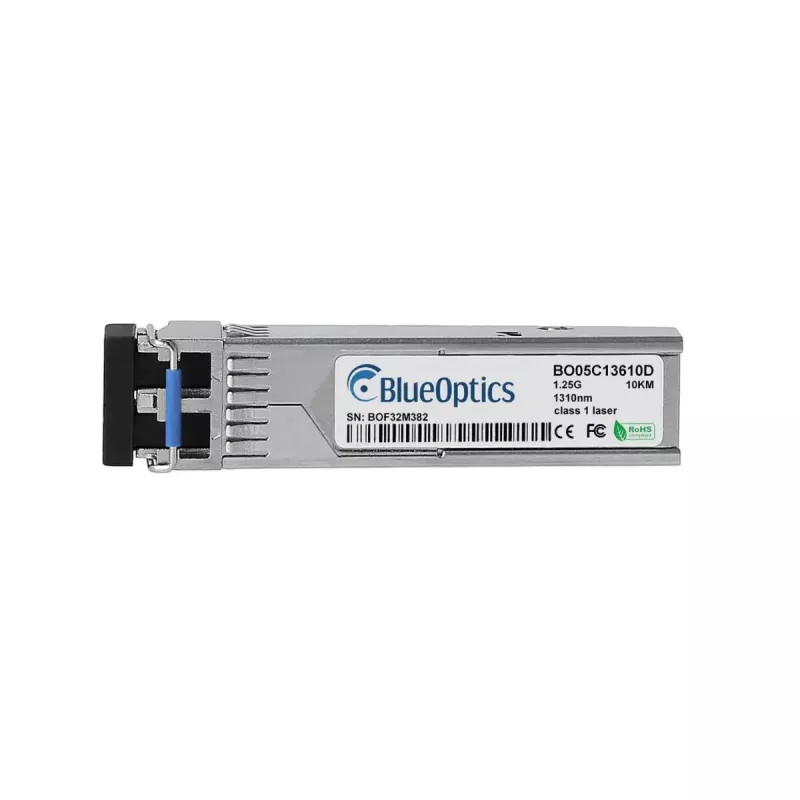

Μονάδα πομποδέκτη οπτικών ινών BlueOptics 407-10934-BO SFP 10000 m

The BlueOptics 407-10934-BO SFP 10000 m is a fiber optic transceiver module designed for high-speed single-mode links up to 10,000 metres. Encased in aluminium and weighing approximately 20 g, this SFP module implements a standard LC duplex interface and is intended for use in network equipment that accepts SFP form-factor transceivers. The module supports optical transmission and reception at 1310 nm and is suitable for Ethernet and related high-speed serial optical applications using single-mode fiber.

Advantages

The transceiver follows MSA-compatible SFP mechanical and electrical specifications, enabling plug-and-play use in devices that support standard SFP modules. Its aluminium housing provides lightweight mechanical protection and thermal dissipation. With single-mode optical operation and a 1310 nm wavelength pair for transmit and receive, the module supports long-distance links up to 10 km while remaining immune to electromagnetic interference common to copper links. The compact SFP form factor and LC duplex connector allow straightforward installation in switches, routers and other networking hardware.

Suitable for

• Long-distance single-mode Ethernet links up to 10 km
• Interconnects between switches, routers and optical patch panels
• Fiber uplinks in campus or metro networks
• Use in network hardware that accepts standard SFP transceivers

Key specifications

• Interface type: SFP (small form-factor pluggable)
• Optical wavelength: 1310 nm transmit and receive
• Maximum reach: up to 10,000 metres over single‑mode fiber
• Connector: LC duplex
• Housing material: aluminium
• Weight: approximately 0.02 kg

How to use

Insert the SFP module into an empty SFP slot on compatible network equipment following the device manufacturer’s hot‑swap guidelines. Ensure mating LC duplex patch cords are clean and properly aligned before connecting to avoid contamination or signal loss. Verify link status and transceiver diagnostics via the host device interface where supported. When removing the module, power down or follow the equipment’s recommended removal procedure to avoid hot‑plug damage if required by the hardware.

Recommendations

For optimal performance, use high-quality single-mode LC duplex patch cords and maintain clean optical endfaces. Confirm that the target hardware supports SFP modules with 1310 nm single-mode operation and, if needed, enable or check digital diagnostic monitoring (DDM/DOM) support to monitor operating parameters such as optical power and temperature.
