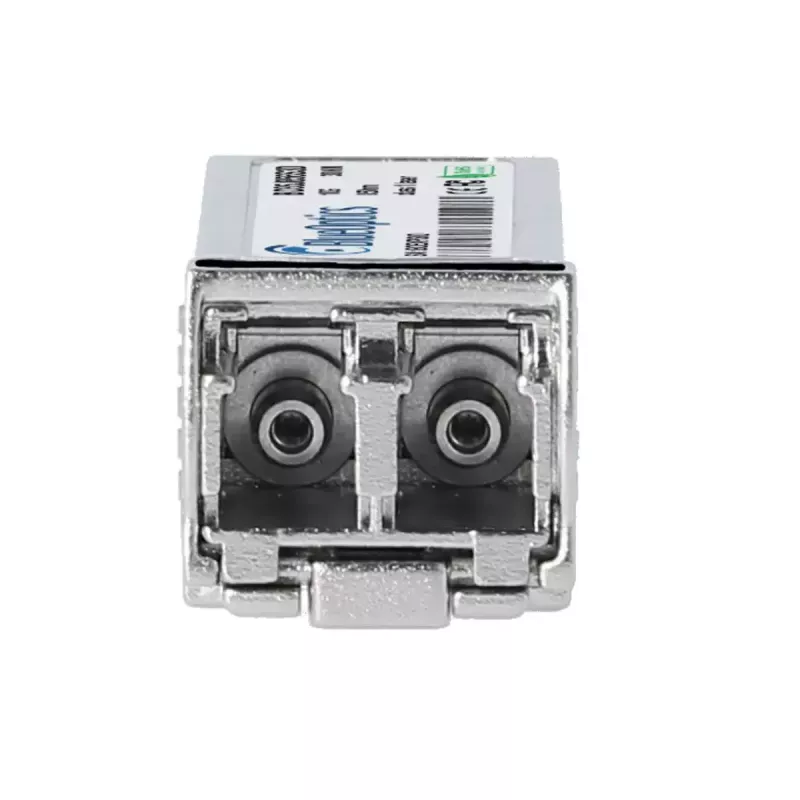

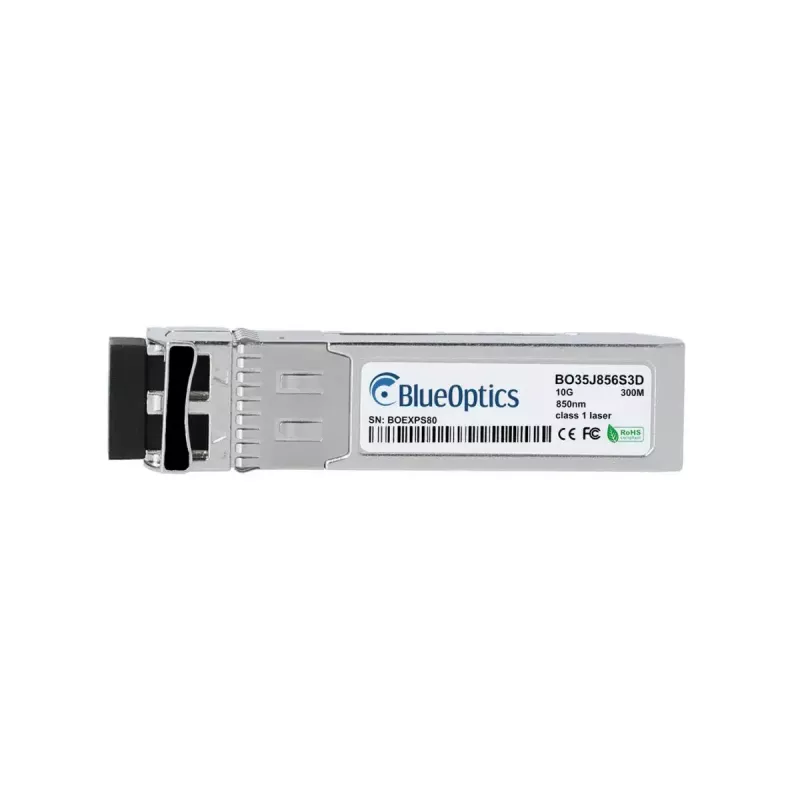

Μονάδα πομποδέκτη οπτικής ίνας BlueOptics NA-TRANS-DUALSFP-SR-BO SFP+ 300m

The BlueOptics NA-TRANS-DUALSFP-SR-BO SFP+ 300m is a fiber optic transceiver module designed for 10GBASE-SR short-range multimode fiber links. Housed in an aluminium casing and weighing approximately 20 grams, this SFP+ module uses LC duplex connectors and supports simultaneous transmit and receive operation at 850 nm. It is intended for use in network equipment that accepts MSA-compliant SFP+ transceivers and supports high-speed Ethernet and related protocols over distances up to 300 meters.

Advantages

The module provides a compact, lightweight solution for 10 Gbps optical links with standardized LC duplex connectivity and SFP+ interface compatibility. Built to MSA guidelines, it supports multimode fiber transmission at 850 nm and offers digital diagnostics monitoring when the host hardware supports DDM/DOM. The aluminium housing contributes to mechanical durability while the module’s design targets interoperability with major networking hardware that accepts compatible 10GBASE-SR SFP+ transceivers.

Suitable for

• 10 Gbps Ethernet links over multimode fiber up to 300 m
• Interconnects between switches, routers and storage systems
• High-speed links in data centers and enterprise LANs
• Applications requiring LC duplex SFP+ modules for short-range optical connections

Key specifications

• Interface type: SFP+
• Optical wavelength: 850 nm (transmit and receive)
• Supported protocol: 10GBASE-SR (10 Gbps)
• Maximum reach: up to 300 metres over multimode fiber
• Connector type: LC duplex
• Housing material: aluminium
• Weight: approx. 0.02 kg
• Digital Diagnostics Monitoring (DDM/DOM): supported when host hardware provides the interface

How to use

Install the transceiver into an SFP+ slot of a compatible switch, router, storage array or other network device while the equipment is powered down or following the vendor’s hot-swap procedure. Connect LC duplex multimode fiber patch cords between transceivers at each end, ensuring correct polarity for transmit and receive channels. Verify link status and speed in the host device management interface and enable DDM/DOM monitoring if supported to read diagnostic parameters such as supply voltage, laser bias current, output power, input power and temperature.

Recommendations

Use high-quality OM3/OM4 multimode fiber patch cords and maintain proper connector cleanliness to achieve the specified 300 m range. Confirm that the network hardware firmware or driver supports third-party SFP+ modules and DDM/DOM if remote diagnostics are required. For best reliability, pair modules with appropriate transceivers at the far end and avoid exceeding bend radius limits on fiber cabling.
