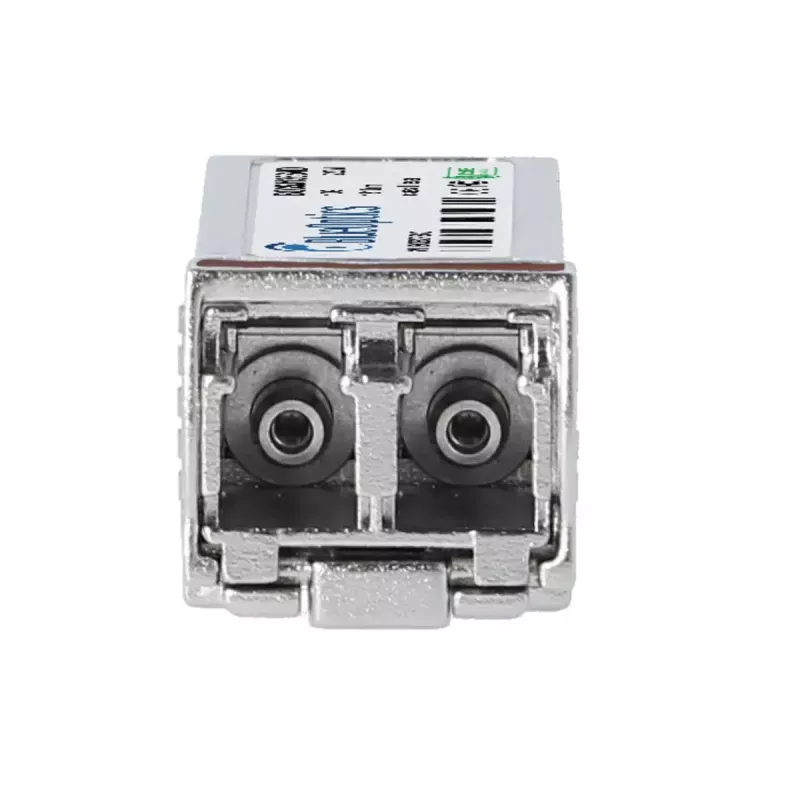

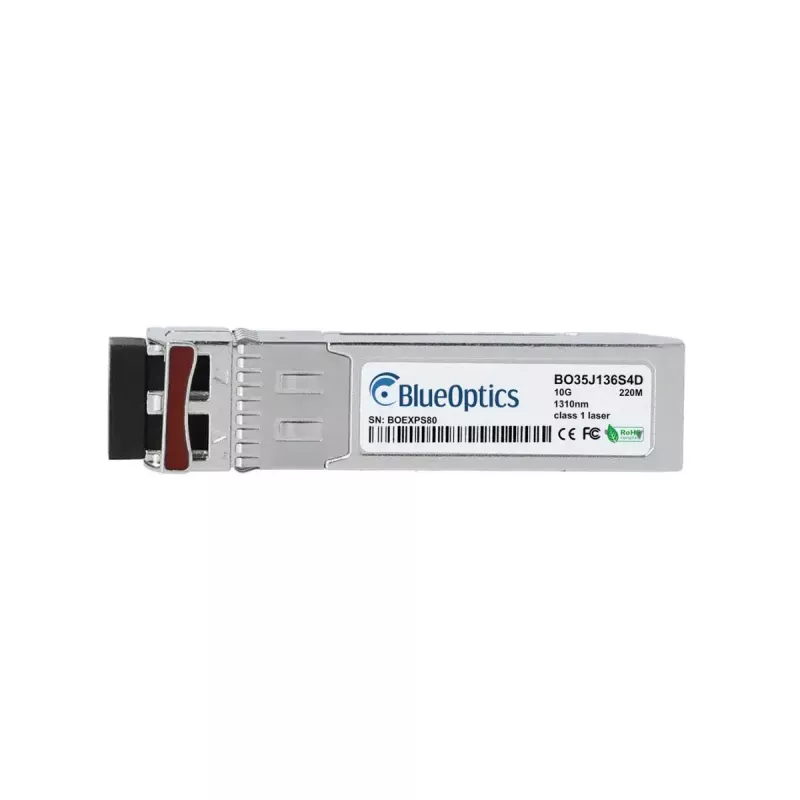

Μονάδα πομποδέκτη οπτικής ίνας BlueOptics 740-021310-BO SFP+ 220m

The BlueOptics 740-021310-BO SFP+ 220m is a fiber optic transceiver module designed for 10G high-speed data transfer over multimode fiber. Built in an aluminium housing and weighing approximately 20 g, the module provides 10GBASE-LRM compatible transmission with LC duplex connectivity and supports links up to 220 meters. The transceiver implements standardized SFP+ form factor and optical parameters suitable for integration into network switches, routers and storage systems that accept SFP+ modules.

Advantages

This BlueOptics SFP+ module delivers 10 Gbps optical connectivity in a compact SFP+ form factor with durable aluminium construction and low weight. It is manufactured to multi-source agreement (MSA) standards and is compatible with hardware platforms that support the corresponding 10GBASE-LRM transceiver. The module supports simultaneous transmit and receive via LC duplex connector and includes optical characteristics optimized for multimode fiber links to 220 m.

Suitable for

• 10 Gigabit Ethernet uplinks and inter-switch connections over multimode fiber
• High-speed storage networking and SAN interconnects
• Data center aggregation, access and campus backbone links
• Replacement or expansion of SFP+ ports in switches, routers and appliances

Key specifications

• Interface type: SFP+
• Protocol support: 10GBASE-LRM (10 Gbps)
• Maximum link distance: up to 220 meters over multimode fiber
• Connector: LC duplex
• Wavelength: 1310 nm transmit and receive
• Material / colour: aluminium housing (aluminium colour)
• Weight: approx. 0.02 kg
• Form factor: hot-pluggable SFP+

How to use

Insert the BlueOptics SFP+ transceiver into a compatible SFP+ slot on your switch, router or storage device while the host is powered according to your equipment’s hot-plug guidelines. Connect both fibers of an LC duplex multimode patch cable to the module and to the remote transceiver, ensuring correct transmit/receive orientation. Verify that the host device recognizes the module and that the link is negotiated at 10 Gbps. If available, enable Digital Diagnostics Monitoring (DDM/DOM) on the host system to monitor optical parameters such as temperature, receive power and transmit power.

Recommendations

Use quality multimode LC duplex patch cables and compatible patch panels to achieve the specified 220 m range. Confirm host device compatibility with 10GBASE-LRM SFP+ modules and enable DDM/DOM support if remote monitoring is required. Observe ESD precautions when handling the transceiver and store it with protective caps when not installed.
