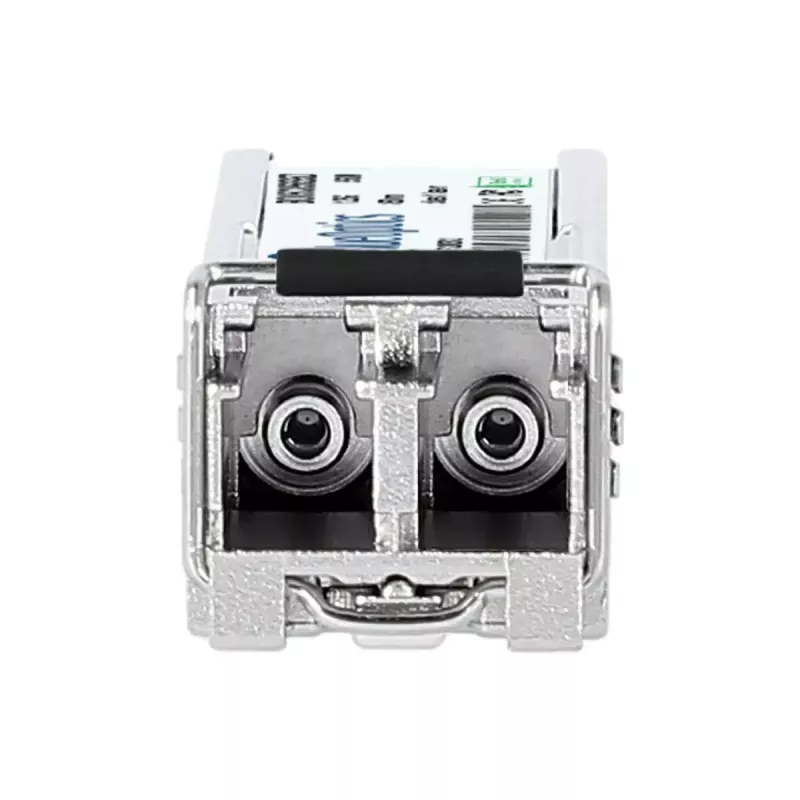

Μονάδα πομποδέκτη οπτικής ίνας BlueOptics 10051-BO SFP LC Αλουμίνιο

The BlueOptics 10051-BO is a 1000Base-SX SFP fiber optic transceiver module with an LC duplex connector, designed according to MSA standards for use in multi-mode fiber links. The module supports 1.25 Gbps optical Ethernet, Fibre Channel over Ethernet or SDH/SONET applications over distances up to 550 meters using 850 nm wavelength. The lightweight aluminium housing (approx. 20 g) and SFP form factor make it suitable for installation in switches, routers, storage systems and other network devices that accept the original Extreme Networks 10051 1000Base-SX SFP.

Advantages

This BlueOptics 10051-BO transceiver is manufactured to MSA specifications and undergoes compatibility testing with the corresponding hardware and firmware requirements to ensure functional interoperability. It uses industry-grade components such as high-quality lasers and integrated circuits to provide long service life and low failure rates. The module supports Digital Diagnostics Monitoring (DDM/DOM) compliant with SFF-8472 for real-time monitoring of voltage, laser bias current, transmit power, receive power and temperature.

Suitable for

• 1 Gbps Ethernet links over multi-mode fiber (up to 550 m)
• Fibre Channel over Ethernet and SDH/SONET applications
• Installation in switches, routers, storage systems and compatible network devices
• Replacement of Extreme Networks 10051 1000Base-SX SFP modules in supported platforms

Key specifications

• Form factor: SFP (LC duplex)
• Data rate: 1.25 Gbps (1000Base-SX)
• Wavelength: 850 nm (transmit and receive)
• Maximum reach: up to 550 m on multi-mode fiber
• Housing: aluminium; weight ≈ 0.02 kg
• DDM/DOM: SFF-8472 compliant (voltage, bias current, Tx/Rx power, temperature)
• MPN/EAN: 10051-BO / 4063232640938

How to use

Insert the BlueOptics 10051-BO SFP module into a compatible SFP port on your network device until it latches. Connect an LC duplex multi-mode fiber patch cable (matching the module’s transmit and receive fibers) between transceivers or to a patch panel. Ensure the host device supports the original Extreme Networks 10051 1000Base-SX SFP and, if required, enable DDM/DOM monitoring in the device software to read diagnostic parameters. Follow standard electrostatic discharge (ESD) precautions during handling and avoid contaminating the fiber connector endfaces.

Recommendations

The best optical performance is achieved using quality multi-mode fiber and properly cleaned LC connectors; verify that the connected hardware supports DDM/DOM if you need live diagnostic data. Store spare modules in anti-static packaging and operate within the device manufacturer’s specified temperature and voltage ranges.
