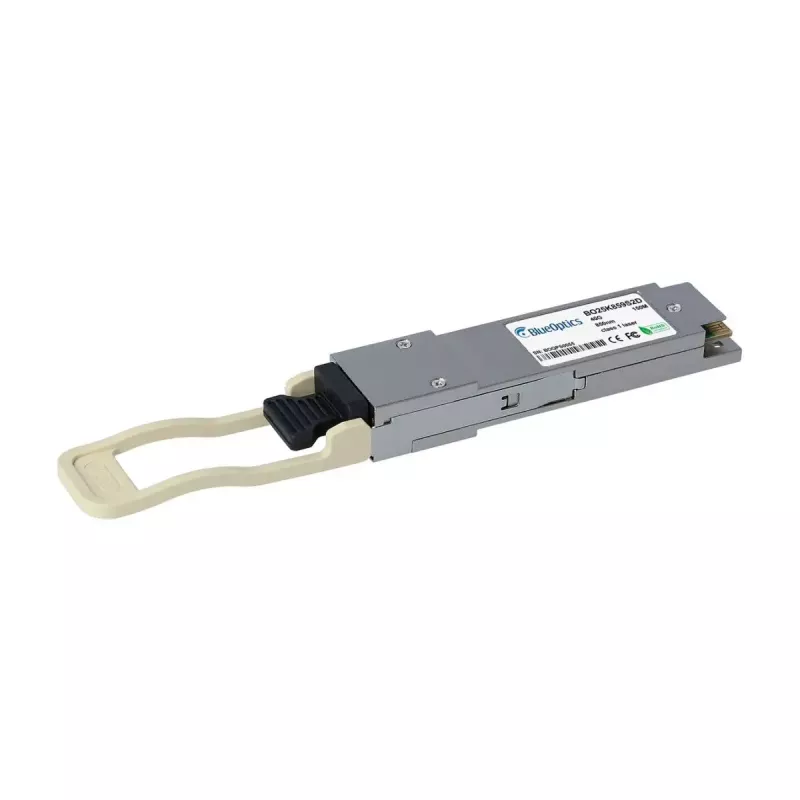

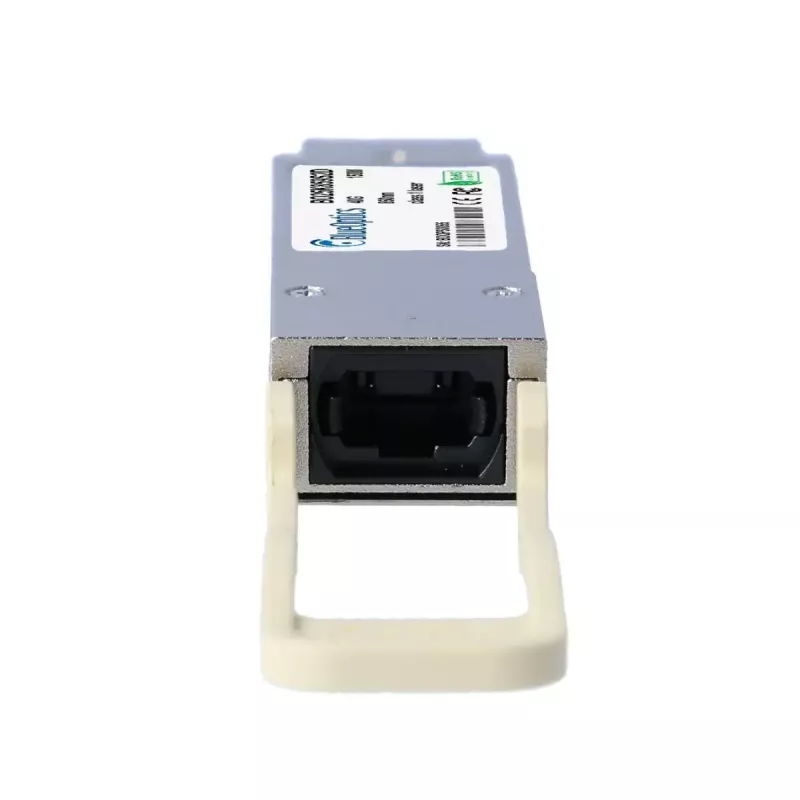

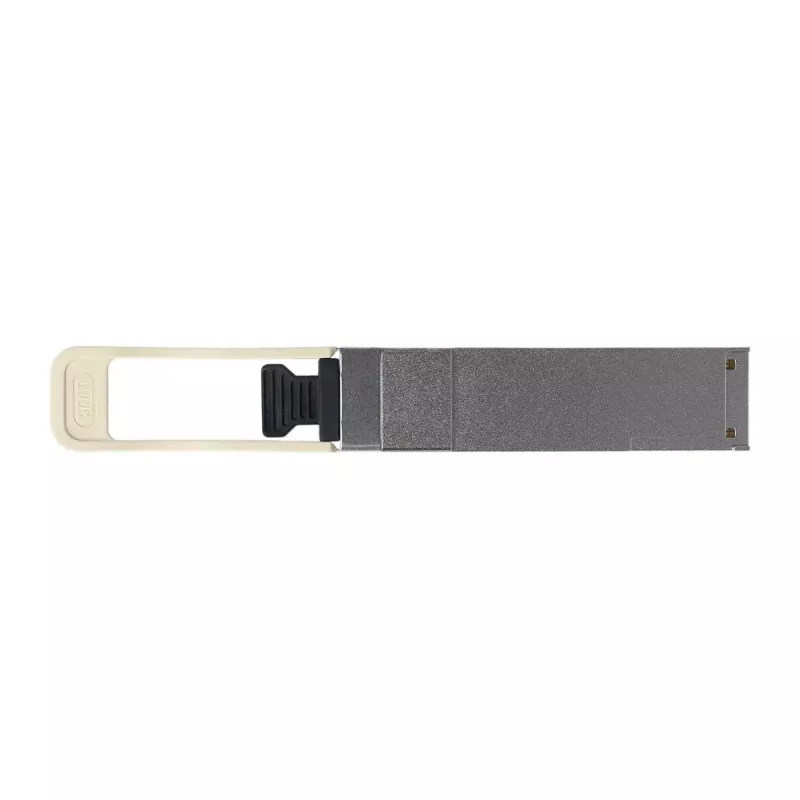

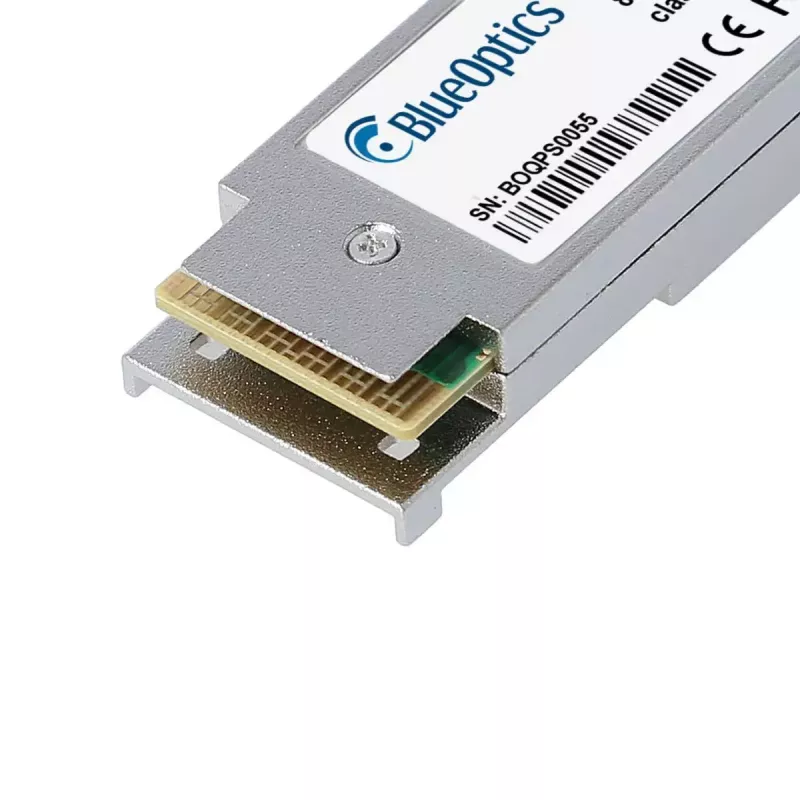

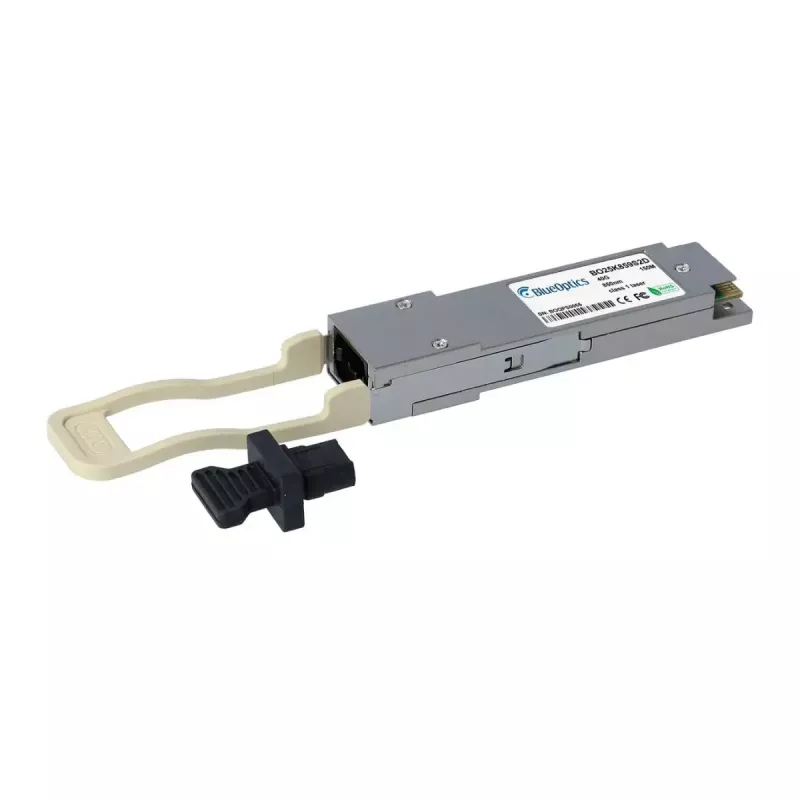

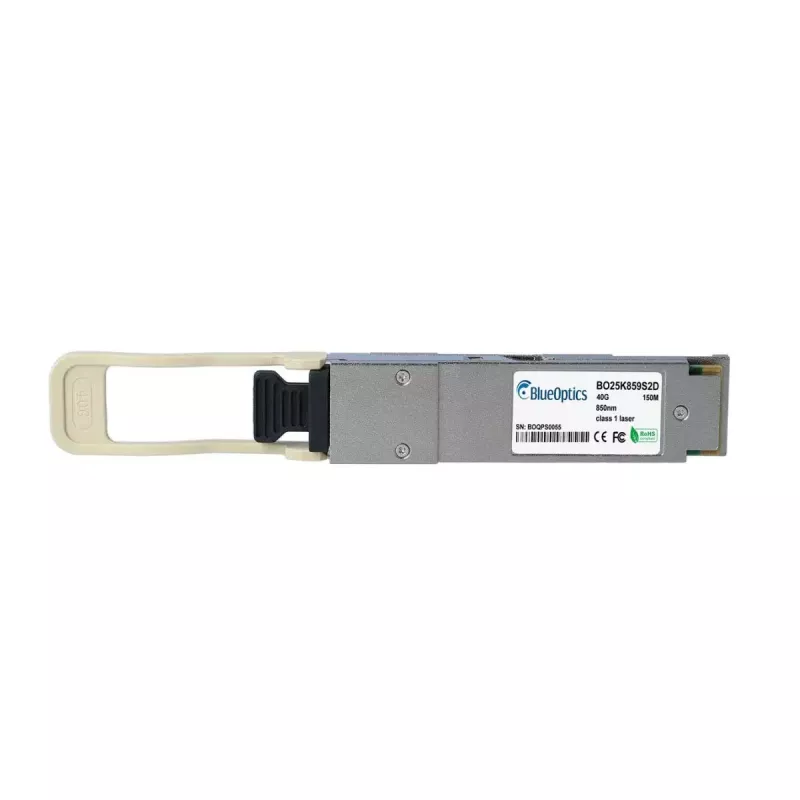

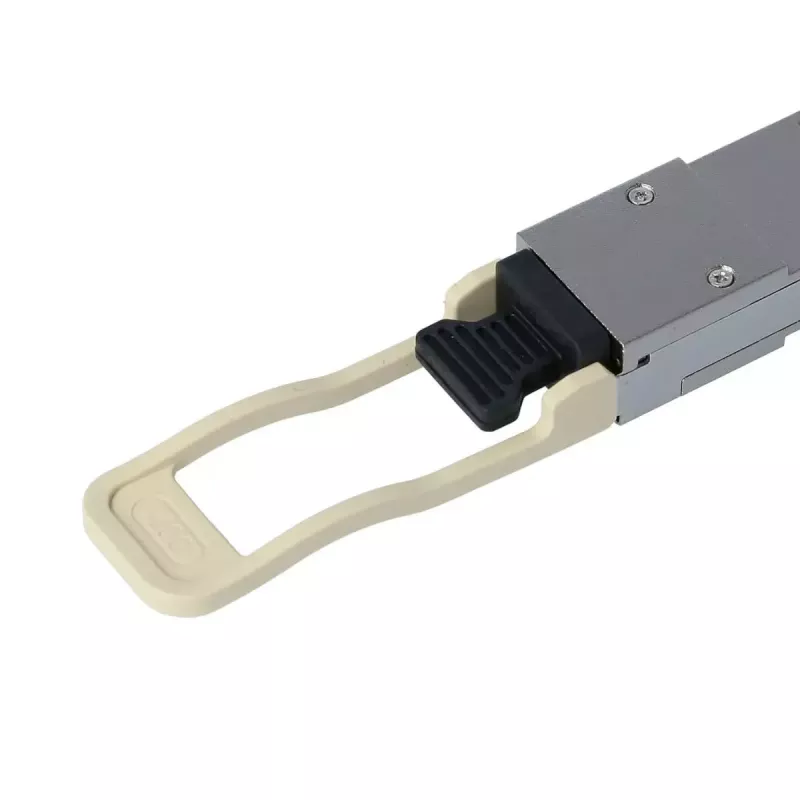

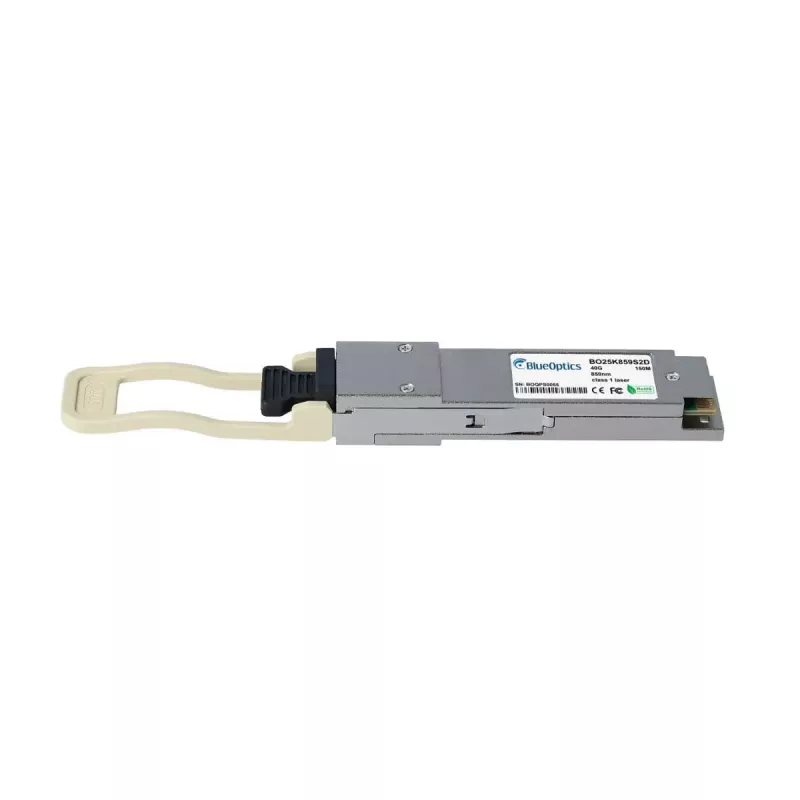

Μονάδα πομποδέκτη δικτύου BlueOptics 3HE07928AA-BO QSFP 40000 Mbit/s

The BlueOptics 3HE07928AA-BO QSFP is a fiber optic transceiver module designed for high-speed network links with a maximum data transfer rate of 40000 Mbit/s. Housed in a metal enclosure and weighing approximately 20 g, this QSFP module supports multimode fiber connections and interfaces via an MPO/MTP connector according to MSA QSFP standards. The module provides transmitter and receiver operation at 850 nm and is intended for integration into network hardware that supports compatible QSFP optics.

Advantages

The transceiver offers a compact metal housing for mechanical stability and heat dissipation, an industry-standard QSFP interface for broad interoperability, and a lightweight design (0.02 kg) that simplifies handling and installation. With an MTBF rating of 1,000,000 hours, the module is engineered for long operating times and reduced maintenance in high-availability environments. Support for Digital Diagnostics Monitoring (DDM/DOM) enables remote monitoring of key operating parameters when the host platform supports this feature.

Suitable for

• 40 Gigabit Ethernet links over multimode fiber
• High-speed interconnects between switches, routers and storage systems
• Data center uplinks and aggregation ports
• Short-reach optical connections up to the validated multimode range

Key specifications

• Interface type: QSFP
• Maximum data transfer rate: 40000 Mbit/s
• Wavelength (TX/RX): 850 nm (transmit and receive)
• Connector type: MPO/MTP (multifiber)
• Fiber type: Multimode fiber (MMF)
• Housing material: Metal
• Weight: 0.02 kg
• MTBF: 1,000,000 hours

How to use

Install the QSFP transceiver into a compatible QSFP port on a switch, router or storage appliance following the host vendor’s hot-plug procedures. Connect an MPO/MTP multimode fiber patch cord to the transceiver and to the mating device or patch panel. Ensure the host platform firmware or driver supports third-party QSFP modules and enable Digital Diagnostics Monitoring in the management interface if remote parameter monitoring is required and supported by the hardware. Observe standard electrostatic discharge (ESD) precautions during handling and avoid contaminating fiber endfaces.

Recommendations

Confirm compatibility with the target hardware and use high-quality multimode fiber and MPO/MTP patch cords to achieve optimal range and signal quality. Clean fiber connectors before mating and verify link status through the host device. If DDM/DOM monitoring is needed, ensure the platform provides access to the diagnostic registers.
