Μονάδα διανομής ισχύος Bachmann 800.2154 8 έξοδοι AC μαύρο LCD

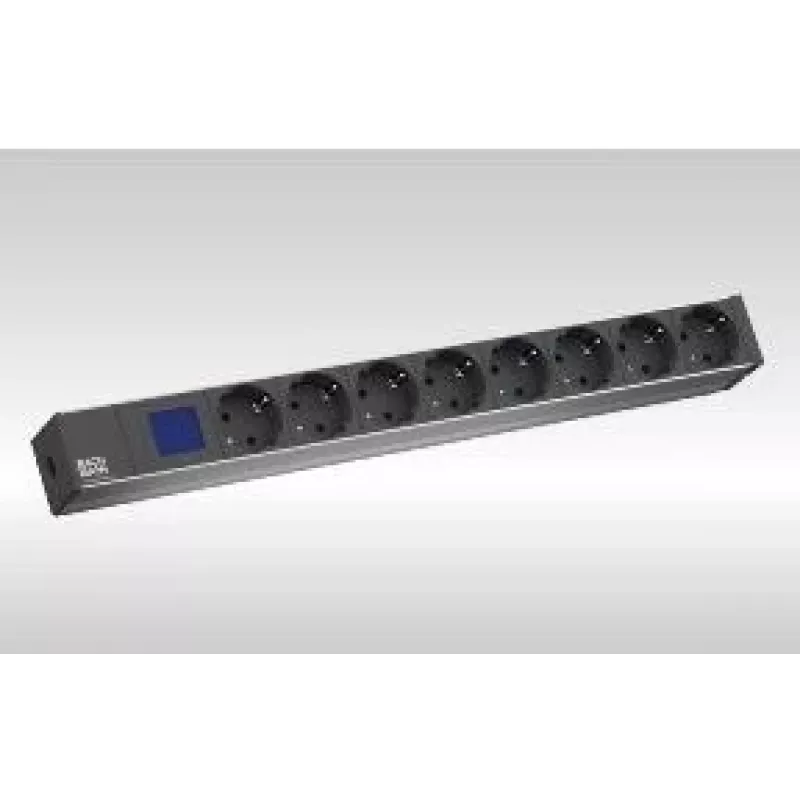

The Bachmann 800.2154 Power Distribution Unit (PDU) is a monitored rack-mount power strip with eight AC outlets and an integrated LCD that displays key supply data directly in the rack. It includes a 2.0 m H05VV-F 3G 1.5 mm² cable with a right-angled earthed plug and supports C19 couplers. The unit is designed for environments requiring real-time monitoring of electrical parameters and compact rack installation.

Advantages

The built-in LCD provides clear, immediate information about voltage, current and power at the distribution point. With eight AC outlets and C19 support, the PDU delivers flexible connection options for servers and network equipment. The 2.0 m H05VV-F cable with an earthing contact and right-angled plug simplifies cable routing in confined rack spaces. Monitoring capability helps track load and prevents overloads within the unit's 16 A maximum current rating.

Suitable for

• Server racks and network cabinets
• Small data centres and edge installations
• Laboratory and test benches with rack-mounted equipment
• Audio-visual racks and professional workstations

Key specifications

• Brand: Bachmann
• Model / MPN: 800.2154
• EAN: 4016514093571
• Number of AC outlets: 8
• Display: LCD (monitored)
• Cable: 2.0 m H05VV-F 3G 1.5 mm² with right-angled earthed plug
• Supports: C19 couplers
• Nominal input voltage: 230 V
• Maximum current: 16 A
• Colour: Black

How to use

Mount the PDU in the rack according to standard rack-installation practices and connect the right-angled earthed plug to a properly grounded 230 V supply. Plug devices into the eight AC outlets or use compatible C19 couplers as required. Use the LCD to monitor voltage, current and power in real time and adjust connected loads to remain within the 16 A maximum. Perform regular visual inspections of the cable and connectors and follow site electrical safety procedures when connecting or disconnecting equipment.

Recommendations

Install the PDU in a grounded rack circuit and distribute connected devices to avoid exceeding the 16 A limit. Use the LCD readouts to monitor load distribution continuously and schedule periodic maintenance checks for connectors and the power cable.
