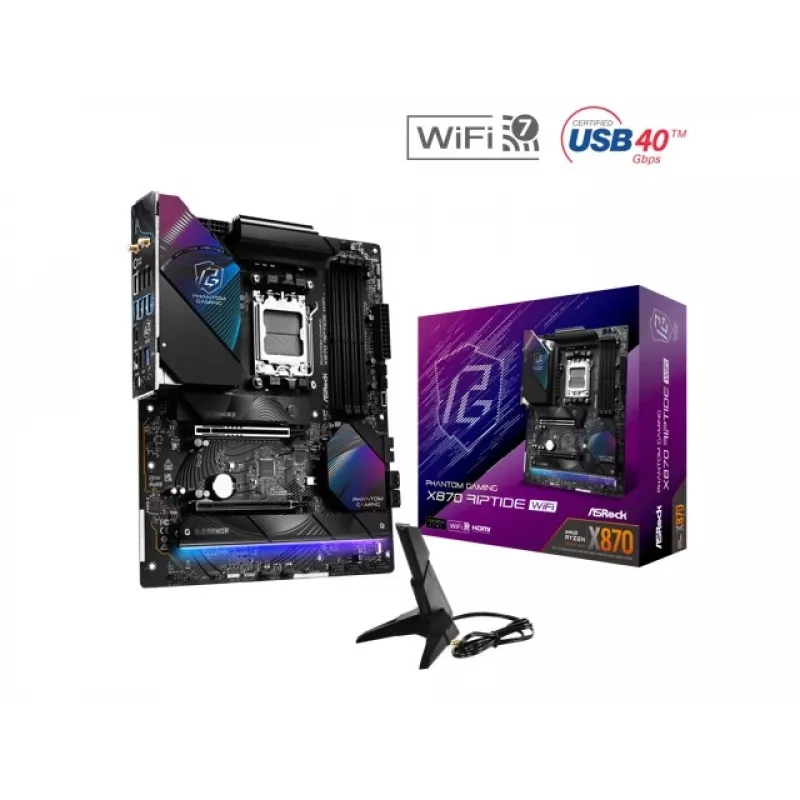

Μητρική ASRock X870 Riptide WiFi — ATX, AMD X870, Socket AM5, DDR5, 4 DIMM, 256 GB, Wi‑Fi 7, 2,5GbE

ASRock X870 Riptide WiFi is an ATX desktop motherboard based on the AMD X870 chipset with Socket AM5, designed for AMD Ryzen 7000/8000/9000 series processors. It supports DDR5 memory across four DIMM slots up to 256 GB and provides multiple high-speed storage and connectivity options including PCIe Gen5 M.2, SATA III and integrated 2.5GbE wired networking plus Wi‑Fi 7. The board integrates an optimized VRM with a 14+2+1 power phase design, Dr.MOS power stages and enhanced capacitors to support sustained CPU performance and memory overclocking, while an 8-layer PCB and advanced M.2 cooling help maintain stability under heavy load.

Advantages

The motherboard offers robust power delivery and thermal management for reliable operation during demanding tasks. High-speed storage support with PCIe Gen5 M.2 slots and enlarged heatsinks improves sustained SSD performance. Built-in Killer E3100G 2.5GbE and Wi‑Fi 7 (802.11be) enable low-latency networking for gaming and content streaming. Additional features include front-panel USB3.2 Gen2x2 Type-C support, Nahimic audio enhancement, reinforced PCIe slot construction and multiple onboard RGB headers for system customization.

Suitable for

• High-performance gaming PCs and esports rigs
• Content creation workstations that require fast storage and memory bandwidth
• Systems using DDR5 memory with XMP/EXPO profiles and overclocking
• Home or small-office setups needing fast wired and wireless networking

Key specifications

• Form factor: ATX
• Chipset: AMD X870
• Processor socket: Socket AM5 (supports AMD Ryzen 7000/8000/9000 series)
• Memory: 4× DDR5 DIMM slots, up to 256 GB, XMP/EXPO compatible
• Storage: Multiple M.2 slots (including PCIe Gen5 capable M.2), SATA III ports, RAID 0/1/10 support
• LAN: 2.5 Gigabit Ethernet controller (Killer E3100G)
• Wireless: Wi‑Fi 7 (802.11be) with Multi-Link Operation and Bluetooth support
• USB: Front-panel USB3.2 Gen2x2 Type-C and USB4/Type-C support on rear I/O for high-speed transfers
• Audio: Multi-channel audio with Nahimic audio enhancements
• Cooling & power: 14+2+1 power phase VRM design, Dr.MOS stages, 8-layer PCB, multiple aluminum heatsinks and large M.2 heatsinks
• Expansion: Reinforced PCIe slot compatible with PCIe 5.0 devices

How to use

Install the ASRock X870 Riptide WiFi in a compatible ATX chassis following standard PC assembly procedures: place the motherboard on the standoffs, secure it with screws, install the AM5 CPU and appropriate cooler, insert DDR5 memory modules into the recommended DIMM slots, and connect storage devices to the M.2 slots or SATA ports. Attach power connectors including the 24‑pin ATX and CPU 8‑pin (and additional 8‑pin/4‑pin if present) using the board’s hi-density power connectors. Connect front-panel headers, case fans and optional thermistors for thermal monitoring. After hardware installation, power on and use BIOS Flashback or normal BIOS to configure firmware settings, enable XMP/EXPO or manual memory profiles if available, set boot order for storage devices, and update drivers as needed.

Recommendations

For stable overclocking and long-term reliability, use high-quality DDR5 modules verified for XMP/EXPO profiles, ensure adequate CPU and M.2 cooling, and provide a PSU that can supply sufficient current to the hi-density power connectors. Enable Multi-Link Operation on Wi‑Fi 7-enabled routers to benefit from reduced latency and higher throughput when using wireless networking. Keep system firmware and LAN/Wi‑Fi drivers up to date to maintain compatibility and performance.
