MITON MT-P136 Κουτί Διακλάδωσης Εξωτερικό IP55 Γκρι

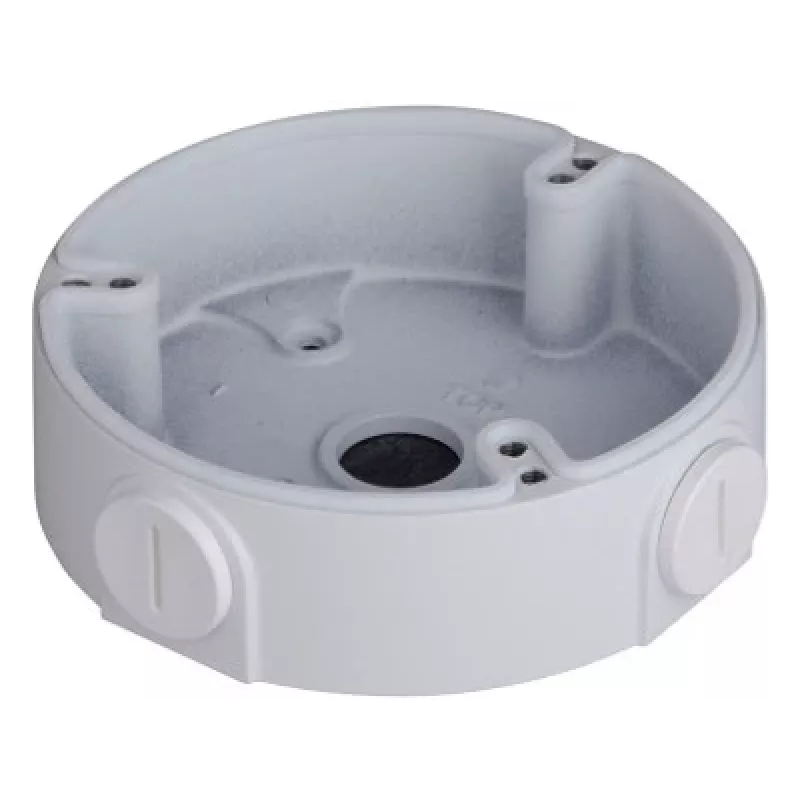

The MITON MT-P136 is a robust surface-mounted junction box designed for indoor and outdoor electrical installations. Manufactured from high-quality ABS material, it offers excellent durability and protection against environmental factors. With an IP55 rating, it is dust-tight and protected against water jets, making it suitable for demanding conditions.

Advantages

This junction box provides reliable protection for electrical connections. Its screw-on lid ensures a secure seal, while the smooth walls allow for flexible custom drilling of cable entries. The box is halogen-free, UV-resistant, and has a flammability rating of UL94-V2, ensuring safety and longevity.

Suitable for

• Indoor and outdoor electrical installations
• Surface-mounted junction and connection points
• Applications requiring IP55 protection

Key specifications

• Mounting Type: Surface-mounted
• Material: ABS
• Colour: Grey
• IP Rating: IP55
• Impact Resistance: IK07
• Operating Temperature: -25°C to +60°C
• Internal Depth: Approx. 45 mm
• Glow-Wire Test: 650°C
• Halogen-Free: Yes
• UV Resistance: Yes

Recommendations

For optimal installation, use appropriate cable glands and ensure the lid is properly tightened to maintain the IP55 rating. This box is ideal for use in industrial, commercial, and residential settings where reliable protection is required.
