MINIS FORUM UM870 Plus Ryzen 7 8745H 16GB + 512GB Mini PC

The MINIS FORUM UM870 Plus is a powerful mini PC designed for professionals, content creators, and home users who demand high performance in a compact form factor. Powered by the AMD Ryzen 7 8745H processor with integrated Radeon 780M graphics, it delivers exceptional computing and visual capabilities for multitasking, productivity, and light gaming.

Advantages

Experience blazing-fast performance with 8 cores and 16 threads, capable of boosting up to 5.1GHz. The integrated AMD Radeon 780M graphics provide smooth 4K video playback and support for up to four displays. With 16GB DDR5-5600MHz RAM and a 512GB PCIe 4.0 NVMe SSD, you get rapid data access and ample storage. Dual 2.5 Gigabit Ethernet and Wi-Fi 6E ensure ultra-fast wired and wireless connectivity. The compact design includes VESA mount support for easy attachment behind a monitor.

Suitable for

• Office productivity and multitasking
• Content creation and photo/video editing
• Home entertainment and 4K streaming
• Light to moderate gaming
• Digital signage and kiosk applications

Key specifications

• Processor: AMD Ryzen 7 8745H (8 cores, 16 threads, up to 5.1GHz)
• Graphics: AMD Radeon 780M (integrated)
• RAM: 16GB DDR5-5600MHz (2x 8GB SO-DIMM, expandable up to 96GB)
• Storage: 512GB PCIe 4.0 NVMe M.2 2280 SSD
• Additional Storage: 1x M.2 2280 PCIe 4.0 slot, 1x 2.5-inch SATA bay
• Operating System: Windows 11 Pro
• Wireless: Wi-Fi 6E, Bluetooth 5.2
• Wired: 2x 2.5 Gigabit Ethernet
• USB Ports: 2x USB4 (40Gbps, DP Alt Mode, PD), 2x USB 3.2 Gen2 Type-A, 2x USB 2.0 Type-A

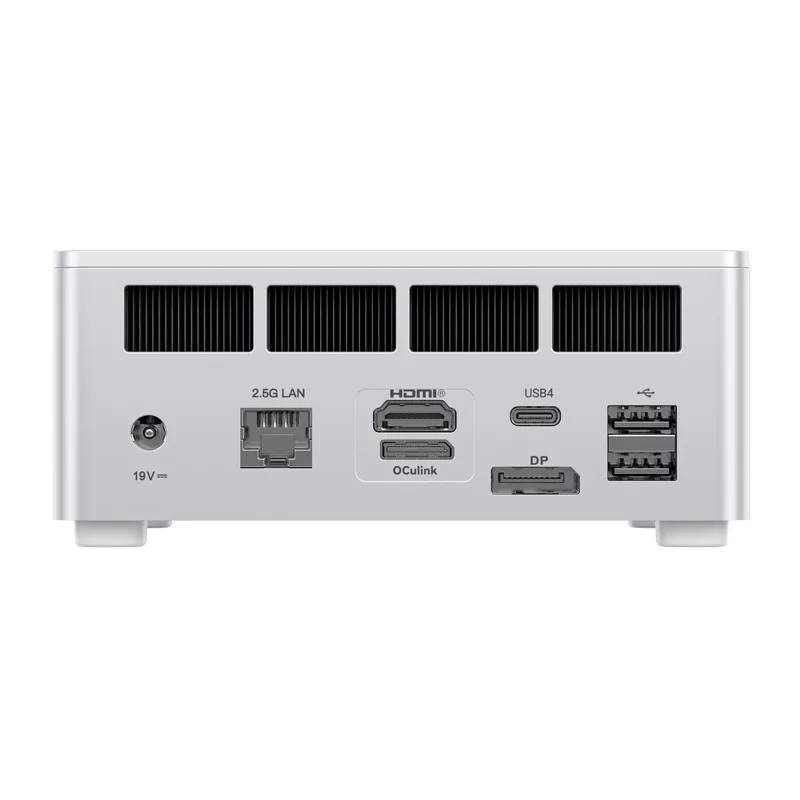

• Video Outputs: 1x HDMI 2.1, 1x DisplayPort 1.4, 2x USB4 (DP Alt Mode)
• Audio: 3.5mm combo jack
• Power: DC 19V external adapter
• Cooling: Active cooling with smart fan
• VESA Mount: Yes (bracket included)
• Security: Kensington lock slot

Recommendations

For optimal performance, pair with a high-speed USB4 or Thunderbolt dock to expand connectivity. Use a VESA mount to create a clutter-free workspace. Consider upgrading RAM to 32GB or 64GB for intensive multitasking.
