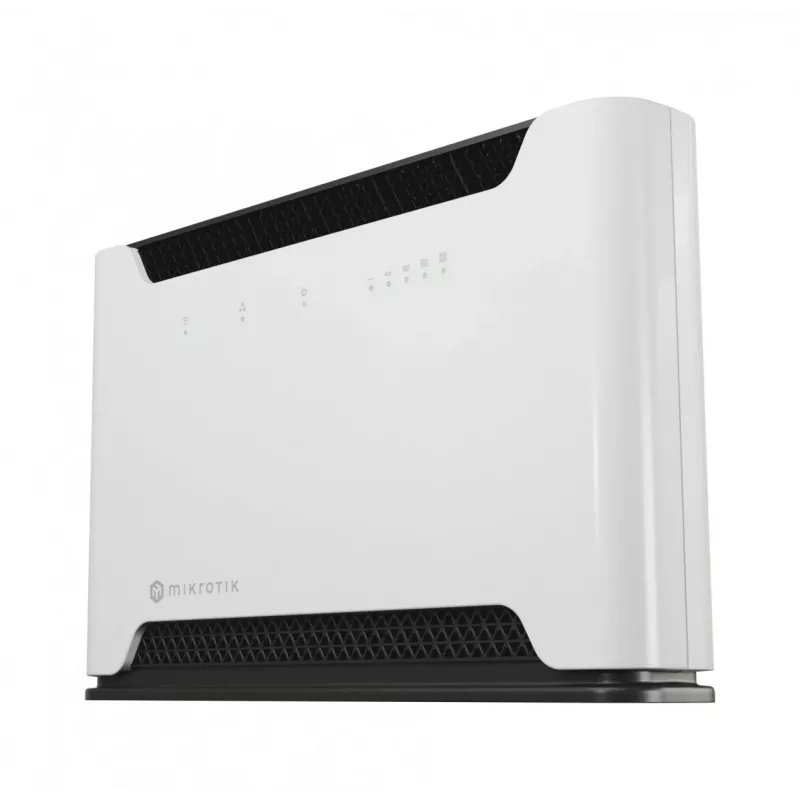

MikroTik Chateau 5G D53G-5HacD2HnD-TC&RG520F-EU δρομολογητής WLAN

Equipped with a Quectel RG520F-E 5G modem and a 716 MHz quad-core CPU, the MikroTik Chateau 5G delivers high-speed connectivity for demanding networks.

Overview

The MikroTik Chateau 5G is a wireless router that combines a 5G modem with dual-band Wi-Fi 5 and five Gigabit Ethernet ports. It runs RouterOS v7 with License Level 4, offering advanced routing, firewall, and VPN features.

What stands out

• 5G SA/NSA support via Quectel RG520F-E modem
• Dual-band Wi-Fi 5: up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz
• Five Gigabit Ethernet ports for wired devices
• 256 MB RAM and 16 MB flash storage
• Micro SIM slot for cellular connectivity
• USB 2.0 port for storage or modem backup
• Wide operating temperature range from -30°C to 60°C

Technical details

• CPU: IPQ-4019, 4 cores, 716 MHz
• RAM: 256 MB DDR3L
• Storage: 16 MB Flash
• Operating System: RouterOS v7 (License Level 4)
• Ethernet Ports: 5x 10/100/1000 Mbps
• Wi-Fi Standards: 802.11b/g/n (2.4 GHz), 802.11a/n/ac (5 GHz)
• Wi-Fi Data Rates: 2.4 GHz up to 300 Mbps, 5 GHz up to 867 Mbps (2x2 MIMO)
• 5G Modem: Quectel RG520F-E
• 5G Support: SA/NSA (Sub-6 GHz)
• LTE Category: Cat 16
• SIM Slot: 1x Micro SIM
• USB Port: 1x USB 2.0 Type A
• Power Input: 12-28V DC Jack
• Max Power Consumption: 23 W
• Antenna: 4x external LTE/5G, 2x internal Wi-Fi
• Operating Temperature: -30°C to 60°C

Our verdict

The MikroTik Chateau 5G is a robust choice for users needing 5G connectivity with extensive routing capabilities, suitable for both indoor and outdoor deployments.
