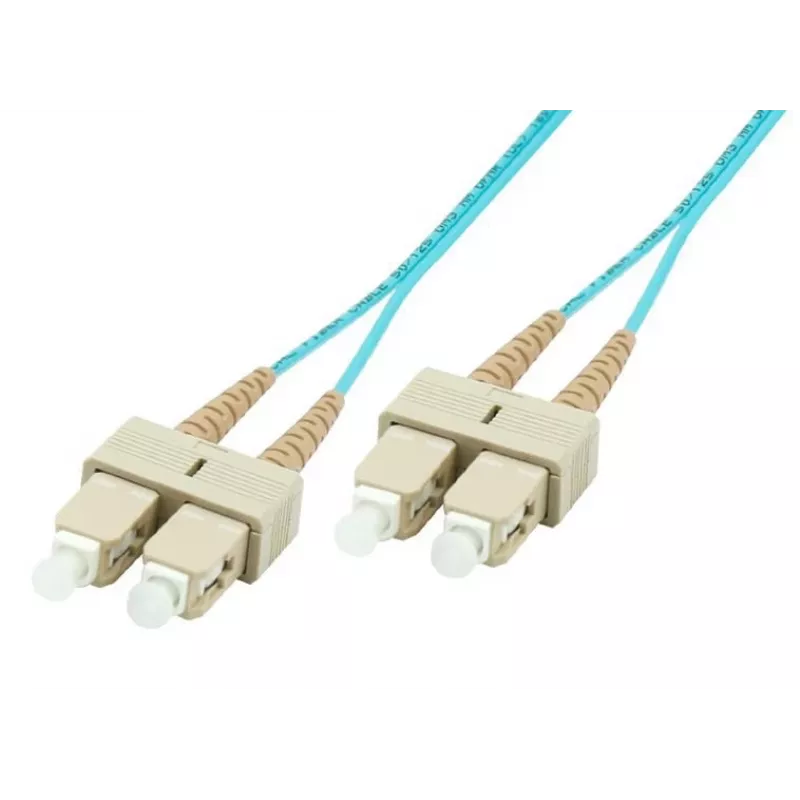

Microconnect SC/PC σε SC/PC 5m duplex multimode OM2 καλώδιο patch οπτικής ίνας, πορτοκαλί

In a busy data center, a network technician needs to connect a switch to a patch panel with a reliable fiber link. The Microconnect SC/PC to SC/PC 5m Duplex Multimode OM2 Fiber Optic Patch Cable gets the job done. This orange cable features SC/PC connectors on both ends, ensuring a secure physical contact connection. With a length of 5 meters, it bridges equipment in racks or across short distances. The duplex design with two fibers supports bidirectional communication, making it ideal for Gigabit Ethernet and other high-speed data applications. The PVC jacket provides durability and flexibility for easy routing in tight spaces. Operating reliably from -40°C to 85°C, it withstands harsh environments. Low insertion loss (<0.3 dB) and high return loss (>35 dB) guarantee excellent signal integrity. Compliant with RoHS and CE, this cable meets international standards. Whether for data networking or telecommunications, it delivers consistent performance.

Key specifications

• Connector Type: SC/PC to SC/PC (Male to Male)
• Fiber Type: Multimode OM2, 50/125 µm core/cladding
• Cable Length: 5 meters
• Number of Fibers: 2 (Duplex)
• Cable Color: Orange
• Jacket Material: PVC
• Operating Temperature: -40°C to 85°C
• Insertion Loss: < 0.3 dB
• Return Loss: > 35 dB
• Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1300nm
• Compliance: RoHS, CE

Why choose it

This patch cable offers a perfect balance of performance and durability. The OM2 multimode fiber supports high bandwidth over short distances, making it cost-effective for enterprise networks. The SC/PC connectors are widely used and provide a stable, low-loss connection. The orange PVC jacket is easy to identify and resistant to wear. With a wide operating temperature range, it can be deployed in various environments, from climate-controlled data centers to industrial settings. The duplex configuration simplifies installation by combining two fibers in one cable, reducing clutter and improving airflow.

Ideal use cases

• Connecting switches, routers, and servers in data centers
• Linking patch panels to network equipment in telecommunications rooms
• Extending fiber connections in campus networks
• Use in industrial automation and control systems
• Backbone connections for high-speed LANs

Good to know

The cable is terminated with SC/PC connectors, which feature a physical contact polish for low back reflection. It is compatible with standard SC adapters and couplers. The OM2 fiber is optimized for 850nm and 1300nm wavelengths, supporting protocols like Gigabit Ethernet (1000BASE-SX) up to 550 meters and Fast Ethernet. For best performance, ensure connectors are clean before mating. This product is part of Microconnect's fiber optic portfolio, known for quality and reliability.
