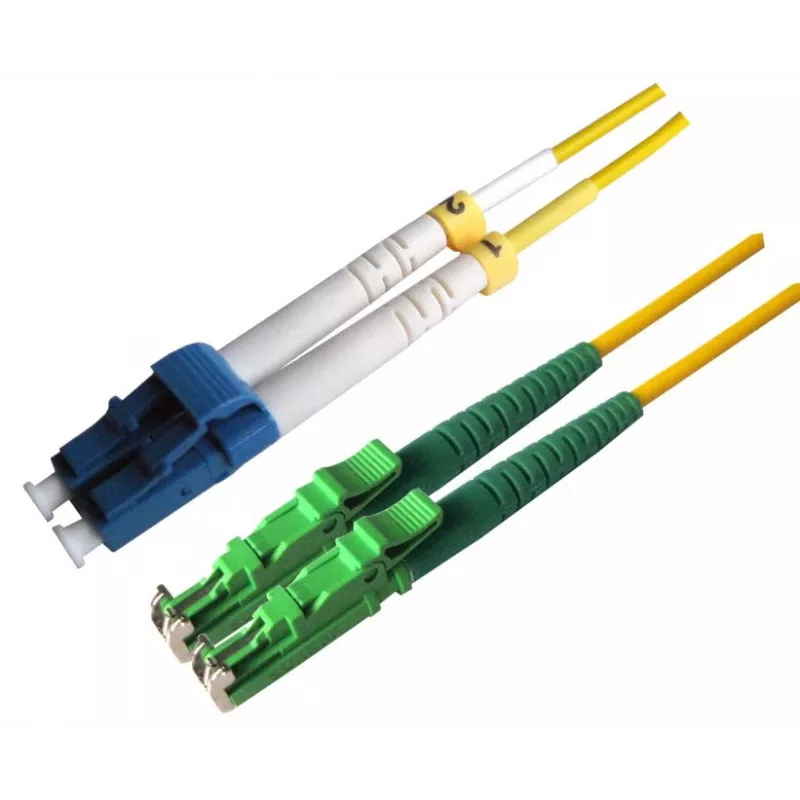

Microconnect FIB4720015 Καλώδιο InfiniBand/οπτικών ινών 1,5 m LC E-2000 (LSH) Κίτρινο

The Microconnect FIB4720015 is a 1.5 m single-mode InfiniBand fibre optic cable with LC and E-2000 (LSH) male connectors, designed for high-speed data transmission in data centres, server farms and telecom rooms. It uses OS2 fibre with a 9 µm core diameter and an LSZH jacket, supporting full-duplex links for 1G/10G/40G/100G Ethernet and InfiniBand connections. The cable transmits data up to 10 km at 1310 nm and up to 40 km at 1550 nm.

Advantages

This cable combines single-mode OS2 performance with LSZH (Low Smoke Zero Halogen) jacket material, meeting IEC/EIA-TIA/Telcordia-related standards and RoHS requirements. Its 1.5 m length and standard LC and E-2000 connectors provide compatibility with common data-centre and telecom equipment while offering full-duplex transmission and APC/UPC polish options for low return loss.

Suitable for

• Data centres and server farms
• Telecom rooms and network equipment racks
• Cloud storage networks and high-performance computing
• 1G/10G/40G/100G Ethernet and InfiniBand links

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB4720015
• Length: 1.5 m
• Fibre type: Single-mode (OS2), core 9 µm
• Connectors: LC Male — E-2000 (LSH) Male
• Connector polish: APC or UPC
• Duplex: Full duplex, single-mode
• Jacket: LSZH (Low Smoke Zero Halogen), yellow
• Transmission reach: up to 10 km @ 1310 nm, up to 40 km @ 1550 nm
• Standards/compliance: RoHS; conforms to IEC/EIA-TIA/Telcordia guidelines
• EAN: 5715063123768

How to use

Inspect connectors and ports for contamination before installation. Align and insert the LC and E-2000 connectors into their corresponding sockets until they click or seat securely. Route the cable to avoid sharp bends and mechanical stress; maintain the manufacturer’s minimum bend radius for single-mode fibre. For long-term installations in enclosed areas, ensure compatibility with LSZH requirements.

Recommendations

Use APC polish for links where low back-reflection is critical (e.g., analog or long-haul links); UPC is suitable for standard digital links. Store and handle the cable in clean conditions and avoid excessive bending or tensile loading to preserve optical performance.
