Microconnect AUDSPEAKER6 Καλώδιο σήματος 100 m Λευκό

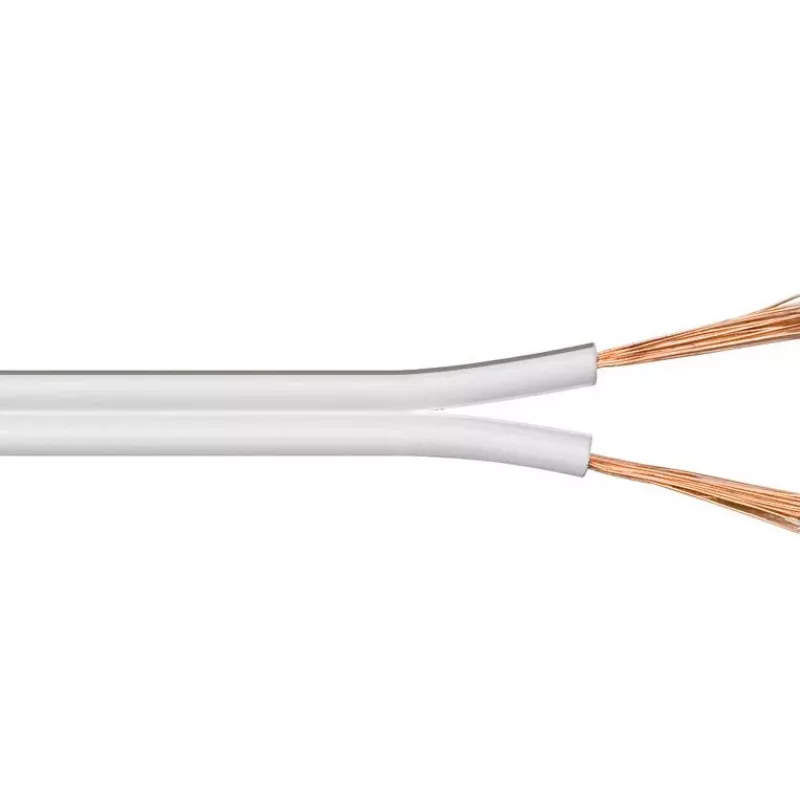

The Microconnect AUDSPEAKER6 is a 100 m white speaker signal cable constructed for reliable audio transmission in professional and domestic setups. It features two conductors with an overall outer dimension of approximately 3.1 x 6.5 mm and a conductor construction of 2x30/0.25 mm, with a conductor cross-section equivalent to 2 x 1.5 mm² (CCA). The cable is lightweight (2.68 kg) and designed for straightforward handling and installation.

Advantages

The cable’s CCA (copper-clad aluminum) conductors provide a balance between conductivity and lower weight, while the specified 2 x 1.5 mm² equivalent cross-section supports typical speaker connections. Its 100 m length and white outer jacket allow flexible routing and discreet placement in installations. The compact outer dimensions make it suitable for conduit or cable-tray runs.

Suitable for

• Wiring passive loudspeakers in venues, halls, or public spaces
• Long-distance speaker runs in commercial or residential audio systems
• Background music and distributed audio systems

Key specifications

• Cable length: 100 m
• Conductor type: CCA (copper-clad aluminum)
• Conductor construction: 2x30/0.25 mm (equivalent to 2 x 1.5 mm²)
• Outer dimensions: approximately 3.1 x 6.5 mm
• Colour: White
• Weight: 2.68 kg
• Brand: MicroConnect, MPN: AUDSPEAKER6, EAN: 5712505338483

How to use

Measure and cut the required length from the 100 m roll. Strip the outer jacket and insulation to expose each conductor, taking care not to nick the strands. Connect the positive and negative conductors to the corresponding speaker and amplifier terminals, ensuring secure mechanical and electrical contact. Route the cable avoiding sharp bends and sources of interference; fasten as required with appropriate clips or ties.

Recommendations

For best results use this cable for passive speaker connections where CCA conductors meet system requirements. Verify polarity at both ends before powering the system, and avoid running the cable in close parallel with mains power lines to reduce potential interference.
