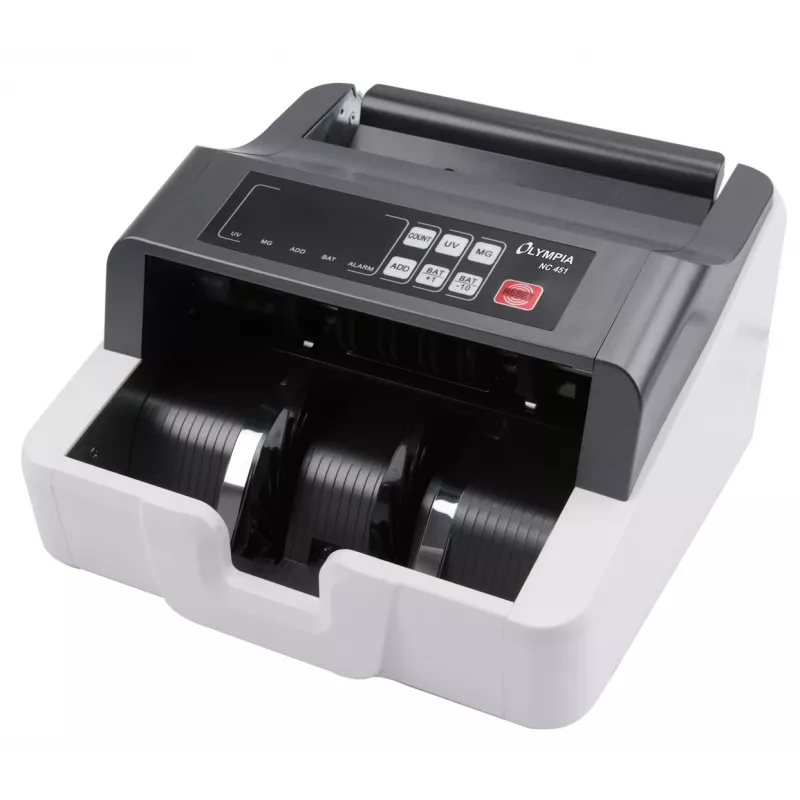

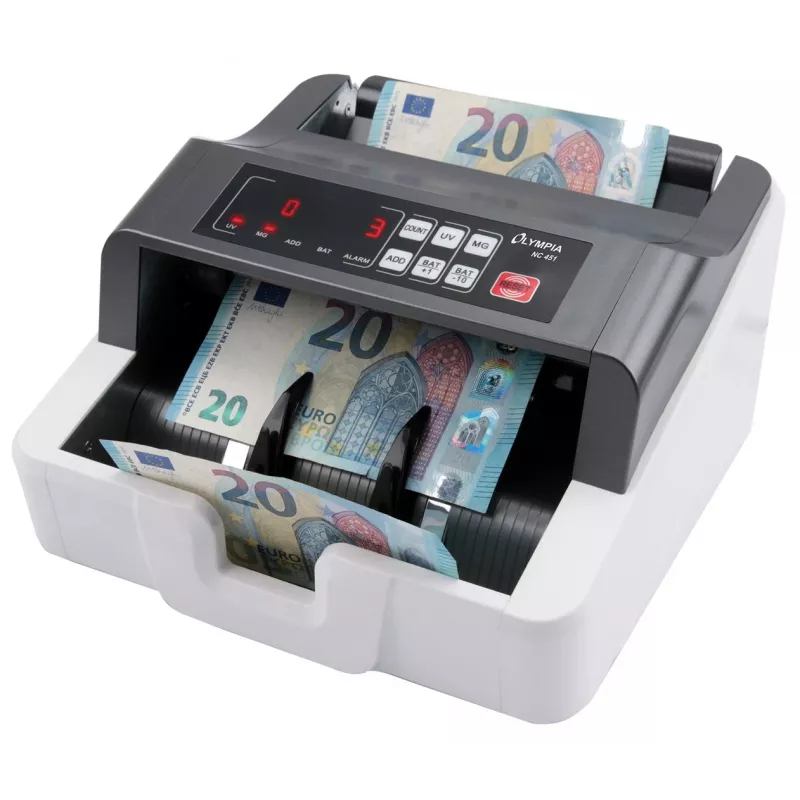

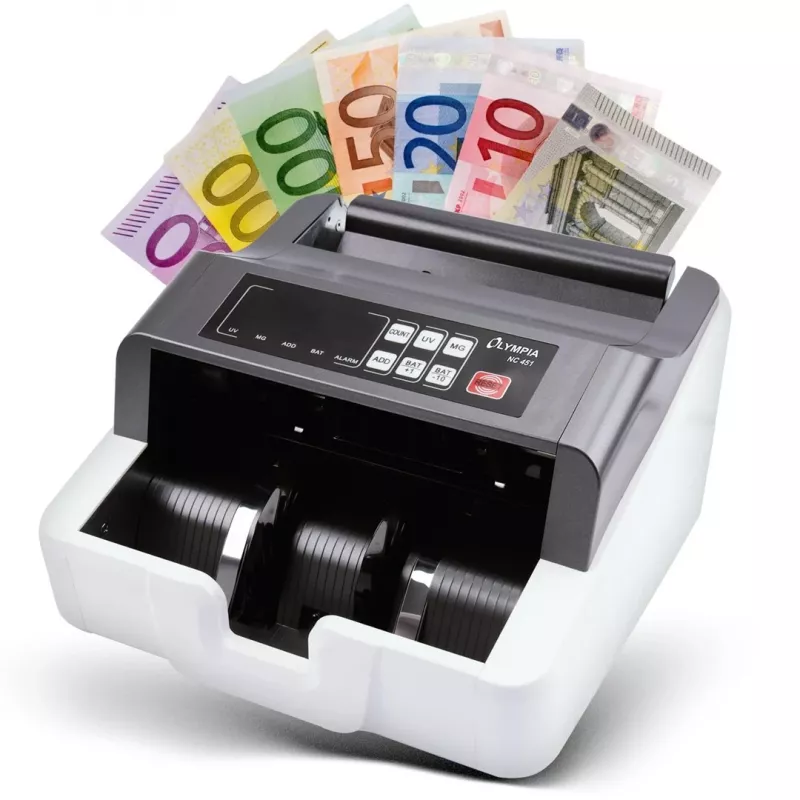

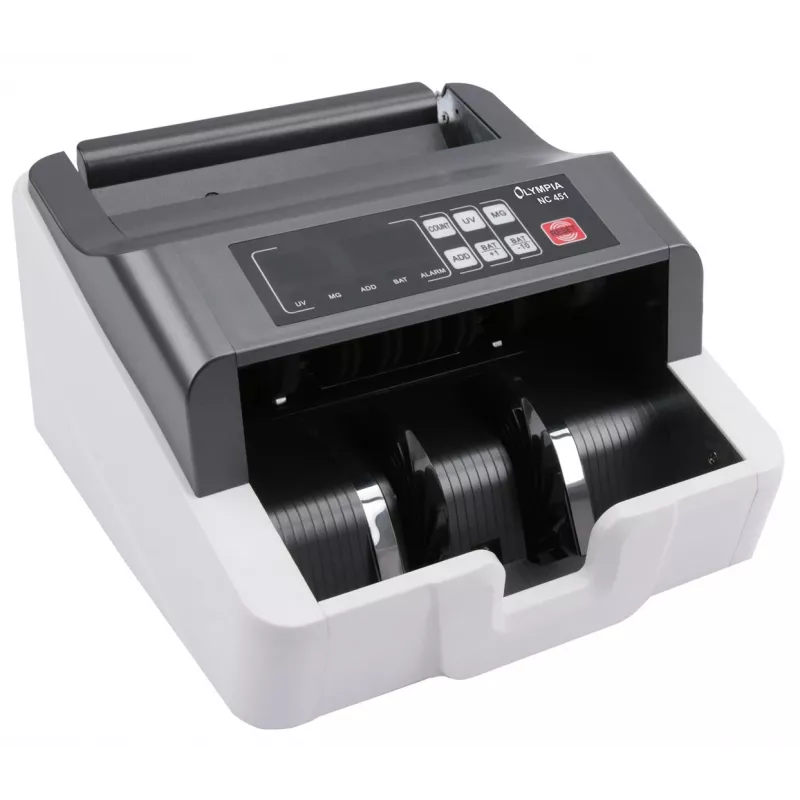

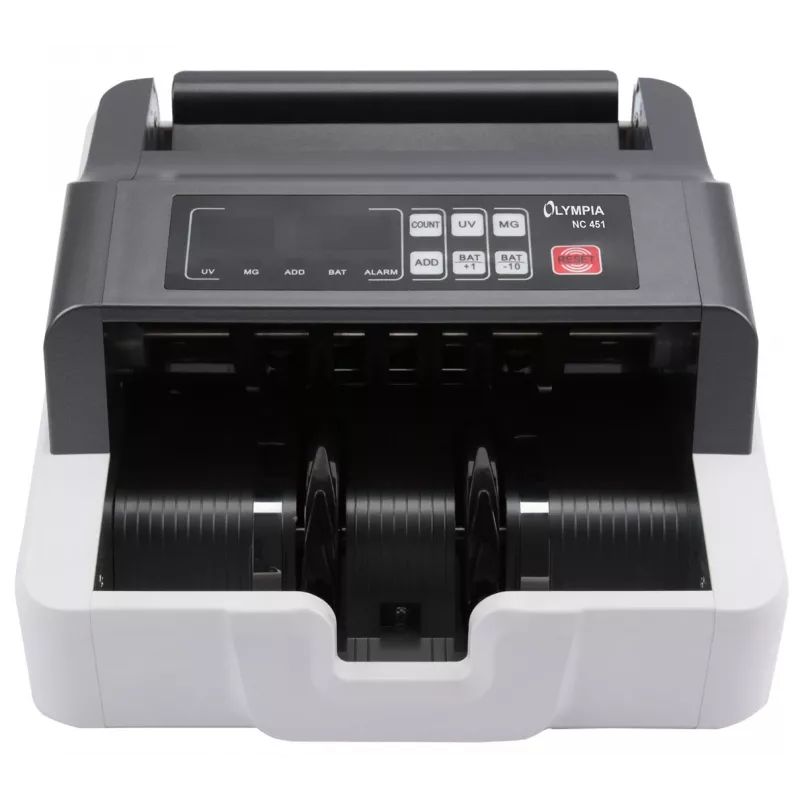

Μηχάνημα μέτρησης χαρτονομισμάτων Olympia NC 451

The Olympia NC 451 is a compact banknote counting machine designed for efficient cash handling. It counts mixed and sorted notes, supports currencies with UV and MG security features, and displays results on a red LED screen. The unit accepts notes sized approximately 50 x 110 mm up to 85 x 180 mm with thickness between 0.075 and 0.15 mm. With a hopper capacity of 100 notes and a stacker for 200 notes, it is suitable for retail tills, small offices and other daily cash operations.

Advantages

The NC 451 offers selectable UV and MG sensors for counterfeit detection, multiple counting modes including free count and add function, and automatic start to streamline processing. It detects doubles, halves and chain-notes and stores the previous result for quick verification. Its compact dimensions (250 x 230 x 135 mm) and low power consumption (230 V, 40 W) make it practical for limited counter space.

Suitable for

• Retail stores and small shops
• Office cash handling and cashiers
• Back-office counting and cash reconciliation

Key specifications

• Model: Olympia NC 451 (MPN 947730886, EAN 4030152950867)
• Counting range: 1–999 notes
• Counting speed: up to 1,000 notes/min
• Hopper capacity: 100 notes; stacker capacity: 200 notes
• Detects: double, half and chain-notes
• Sensors: UV and MG, selectable
• Supported note size: 50 x 110 mm – 85 x 180 mm; thickness 0.075–0.15 mm
• Modes: free count, add function, free batch stop (1–100), automatic start
• Display: red LED
• Power: AC 230 V, 40 W
• Weight: 3.2 kg; Colour: grey

How to use

Place the machine on a stable, level surface and connect it to a 230 V AC power source. Load notes into the hopper (up to 100) and select required sensors (UV, MG) and counting mode. Start counting using automatic start or the control panel; use the add function to accumulate multiple batches and the free batch stop to set batch sizes between 1 and 100. Read results on the red LED display and remove counted notes from the stacker.

Recommendations

For reliable results, ensure notes are free of staples and large debris, use the selectable UV and MG sensors for currencies with corresponding security features, and perform routine cleaning of feed rollers as recommended by the manufacturer.
