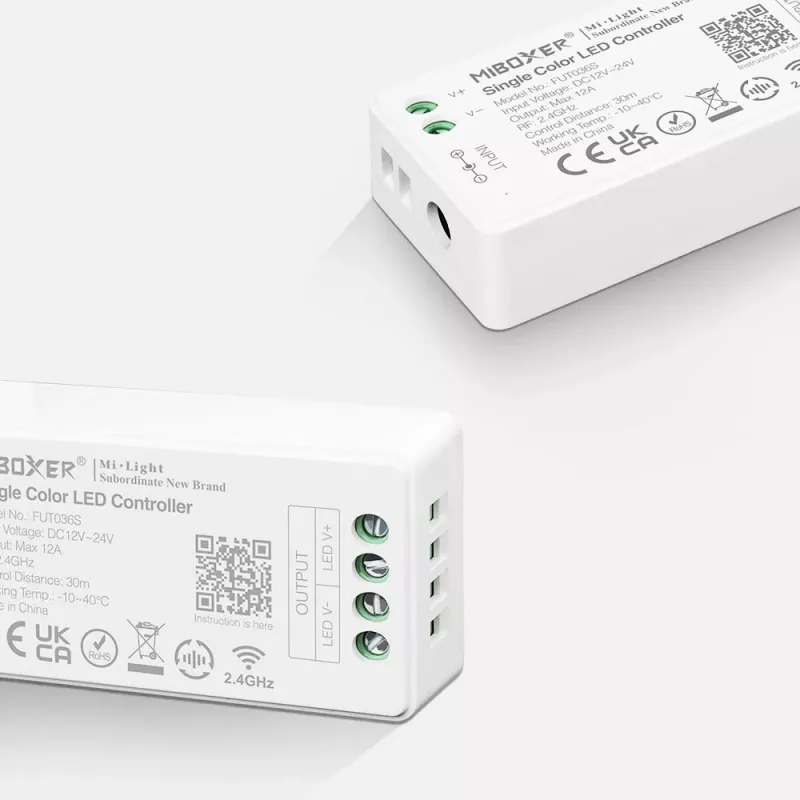

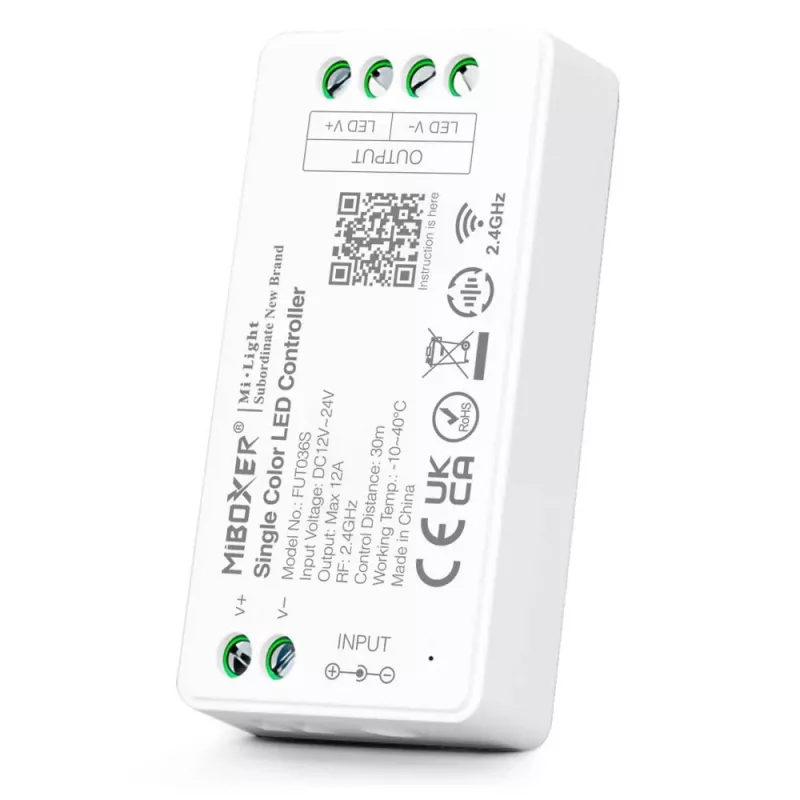

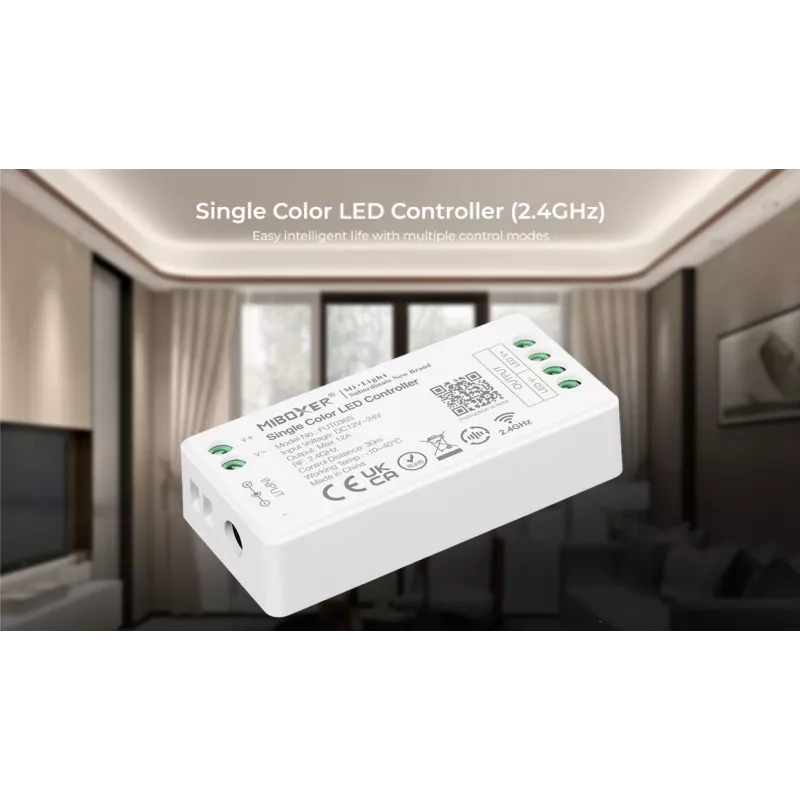

MIBOXER FUT036S Single Color 2.4G LED Dimmer Controller DC12-24V, 12A, Push Dim, RF Wireless, White

For projects that demand reliable, flicker-free dimming of single-color LED strips, the MIBOXER FUT036S stands apart with its dual control options: a 2.4GHz RF wireless interface for remote commands and a push-dim input for simple wall-switch operation. This controller handles up to 288W at 24V, making it suitable for long runs and high-power installations without the need for additional amplifiers in many cases.

Highlights

• 2.4GHz RF wireless control with up to 30m range (open area)
• Compatible with MiBoxer 2.4G remotes and Wi-Fi gateway (WL-Box1) for app control
• Push-dim input for manual dimming via momentary switch
• High output current: 12A max, supports 144W at 12V or 288W at 24V
• Smooth 0-100% dimming with no flicker
• Memory function recalls last brightness level after power off

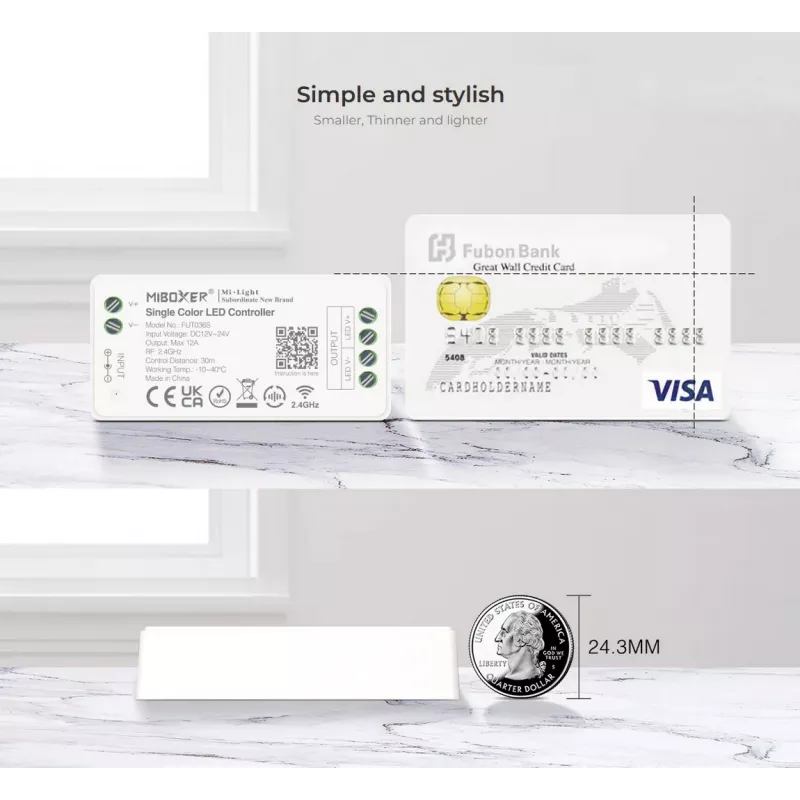

• Compact ABS housing with screw terminals for secure wiring
• IP20 rating for indoor use

In daily use

Installation is straightforward: connect your single-color LED strip to the output terminals, supply 12-24V DC to the input, and pair the controller with any MiBoxer 2.4G remote or the Wi-Fi gateway. The push-dim terminal allows you to dim by a simple press-and-hold on a standard momentary switch—perfect for users who prefer a physical interface. The memory function ensures that the last brightness setting is restored after a power interruption, so your lighting scene remains consistent.

Full specifications

• Input Voltage: DC 12V-24V
• Output Voltage: DC 12V-24V
• Output Current: Max 12A
• Output Power: Max 144W (12V) / 288W (24V)
• Control Type: 2.4GHz RF Wireless, Push Dim
• Wireless Protocol: MiBoxer 2.4G RF
• Control Distance: Up to 30 meters
• Dimming Range: 0-100%
• Number of Channels: 1 (Single Color)
• Operating Temperature: -20°C to 60°C
• Connection Type: Screw Terminals
• Compatibility: MiBoxer 2.4G Remotes, MiBoxer WiFi Gateway (WL-Box1)
• Material: ABS Plastic
• Protection Rating: IP20
• Standby Power Consumption: <0.5W
• Memory Function: Yes (Last setting recall)
• Control Modes: Brightness Dimming

Final note

The MIBOXER FUT036S delivers professional-grade dimming with versatile control, ensuring your single-color LED installations are both powerful and easy to manage.
