MiBoxer D5-T 5-Channel DMX512/RDM LED Decoder, DIN Rail, 12–48 V, 20 A

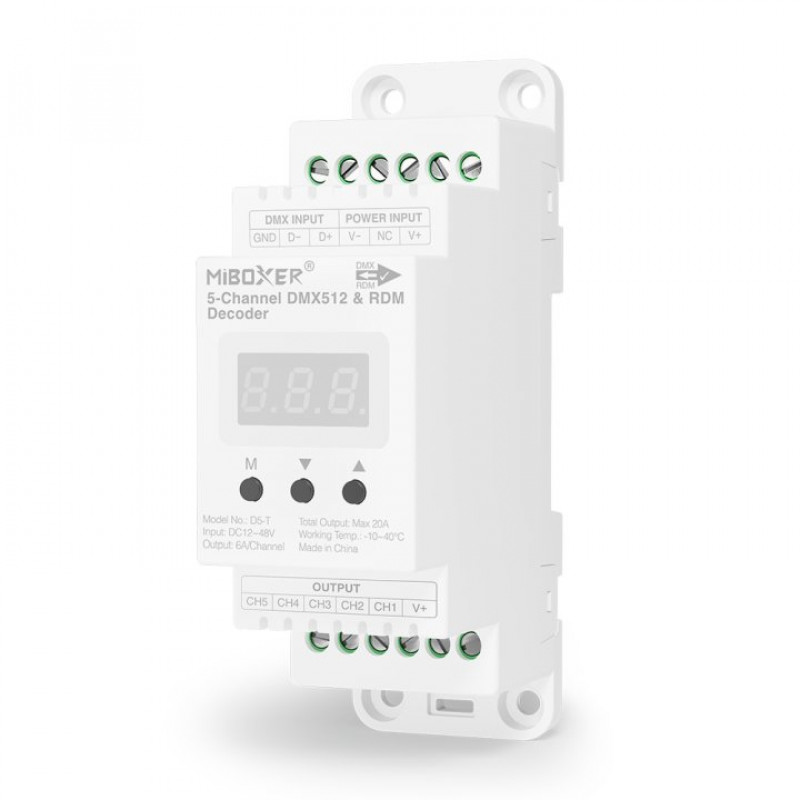

MiBoxer D5-T is a five-channel constant-voltage LED decoder with DMX512 and RDM control. It operates from 12–48 V DC and supports up to 6 A on each channel, with a maximum combined output current of 20 A across all channels. The digital display and three front buttons allow DMX address configuration directly on the device.

The white housing is designed for a 35 mm DIN rail. Its IP20 rating suits indoor installation, with a specified operating temperature of -10 to +40 °C. Choose a compatible constant-voltage LED load and power supply, keeping both each channel and the combined load within the specified current limits. This listing is for the D5-T controller, EAN 4038816161055.
