Μη διαχειριζόμενος διακόπτης Trendnet TI-PG62

The TRENDnet TI-PG62 is an unmanaged industrial Gigabit Ethernet switch in an IP30-rated rugged housing, offering four Gigabit RJ-45 PoE+ ports, one shared Gigabit port (RJ-45/SFP) and one dedicated SFP slot. It provides a 12 Gbps switching capacity, supports full-duplex operation and a 1000-entry MAC address table. The switch is designed for harsh environments with wide operating temperatures and protection against vibration, shock, ESD/EMI and surge.

Advantages

The TI-PG62 supplies up to 120 W of PoE+ power to connected devices across its four PoE+ ports, enabling deployment of powered devices without separate power cabling. Dual redundant power inputs (Primary and RPS) and an output alarm relay provide fault tolerance by alerting when input power fails. Its compact, industrial IP30 enclosure and wide operating temperature range (-40 to 75 °C) allow installation in demanding industrial or outdoor-adjacent locations.

Suitable for

• Connecting PoE cameras and networked security devices
• Supplying power and data to wireless access points and VoIP phones
• Industrial automation and remote monitoring applications
• Network edge deployments requiring DIN-rail mounting

Key specifications

• Switch type: Unmanaged
• Ports: 4 x Gigabit RJ-45 PoE+ ports, 1 x shared Gigabit (RJ-45/SFP), 1 x dedicated SFP slot
• PoE budget: 120 W (PoE+)
• Switching capacity: 12 Gbps
• MAC address table: 1000 entries
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3z
• Enclosure rating: IP30, rugged industrial
• Operating temperature: -40 to 75 °C
• Weight: 0.5 kg
• Color: Black

How to use

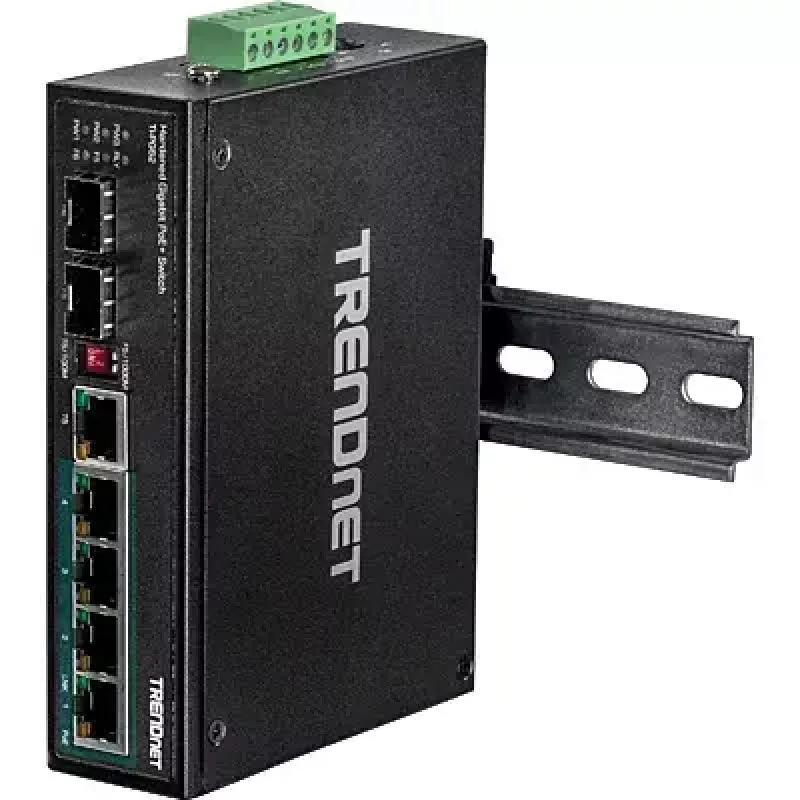

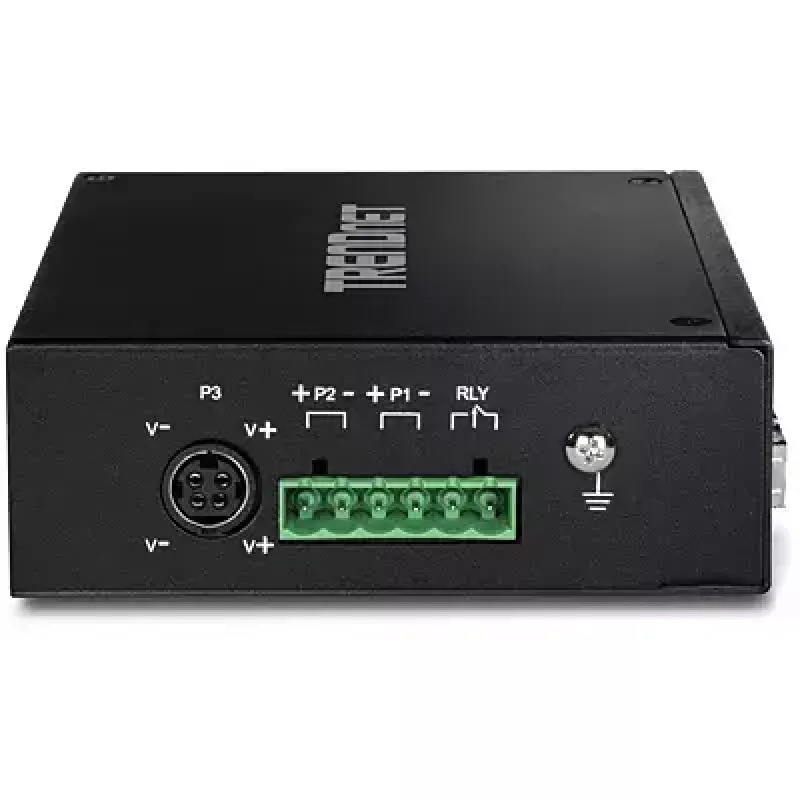

Mount the TI-PG62 on a DIN rail in a suitable enclosure or rack space that meets the device's environmental requirements. Connect network devices to the Gigabit RJ-45 PoE+ ports; powered devices will receive data and PoE+ power automatically up to the available 120 W budget. Use the shared RJ-45/SFP port and dedicated SFP slot for fiber uplinks or copper uplinks as required. Provide external power to the primary and optional redundant power input (RPS) to enable dual-power fault tolerance and connect the alarm relay if integration with a monitoring system is needed.

Recommendations

For reliable operation, confirm the combined PoE power requirements of connected devices do not exceed the 120 W budget. Install the switch in a location protected from direct moisture, ensure proper grounding, and use compatible SFP modules for fiber connections. Regularly check power sources and alarm relay connections in critical deployments.
