Διαχωριστής δικτύου BTR NETCOM pnp 2 ασημί

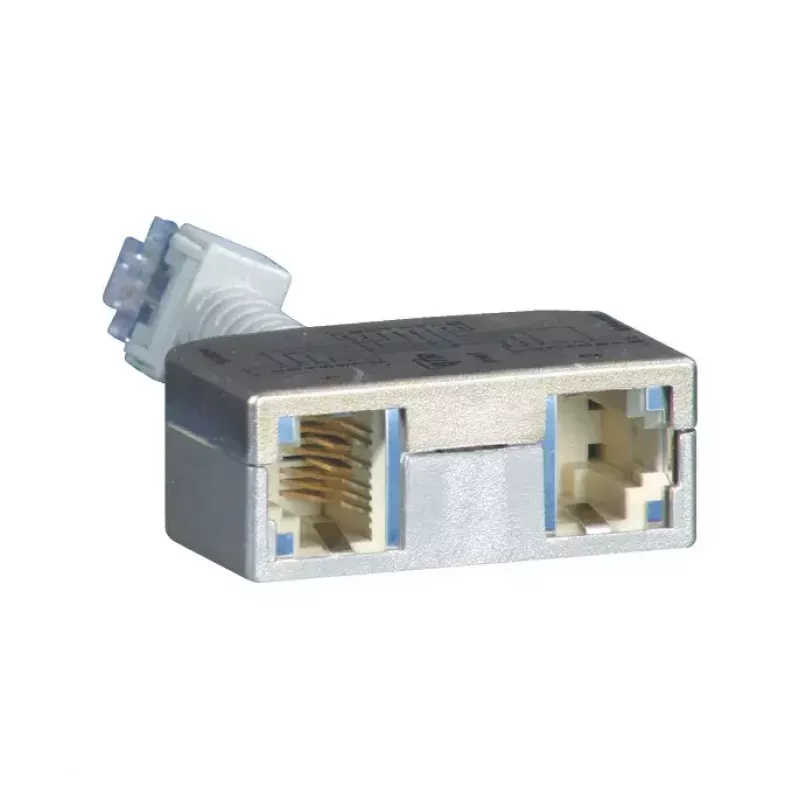

The BTR NETCOM pnp 2 Silver network splitter enables simultaneous operation of two 4‑wire services — for example one Ethernet connection and one telephone (ISDN) — over a single 8‑wire installation cable. The set contains two matching shielded adapters: one to be placed at the wall outlet and one at the distributor to separate and combine the pairs. The compact, low‑profile design positions plugs side by side and provides a short, flexible connection for tidy installations.

Advantages

The shielded adapters support Class E transmission characteristics in the link according to IEC 11801 and EN 50173‑1, ensuring reliable signal integrity for both services. The plug-and-play concept requires no configuration or software. The small form factor and short cable make the splitter suitable for confined spaces and reduce cable clutter. Delivered as a matched pair for immediate use.

Suitable for

• Splitting one 8‑wire installation line into two 4‑wire services (Ethernet + ISDN/telephone)
• Home or small office installations with existing structured cabling
• Installing an adapter at the wall outlet and the matching adapter at the distributor

Key specifications

• Brand: BTR
• Model: NETCOM pnp 2 Silver (MPN 130548-02-E)
• EAN: 4250184102106
• Type: 8‑wire to two 4‑wire splitter (set of 2 adapters)
• Shielding: shielded adapter, Class E link performance (IEC 11801 / EN 50173‑1)
• Connection: plug-and-play, short flexible lead, plugs side by side

How to use

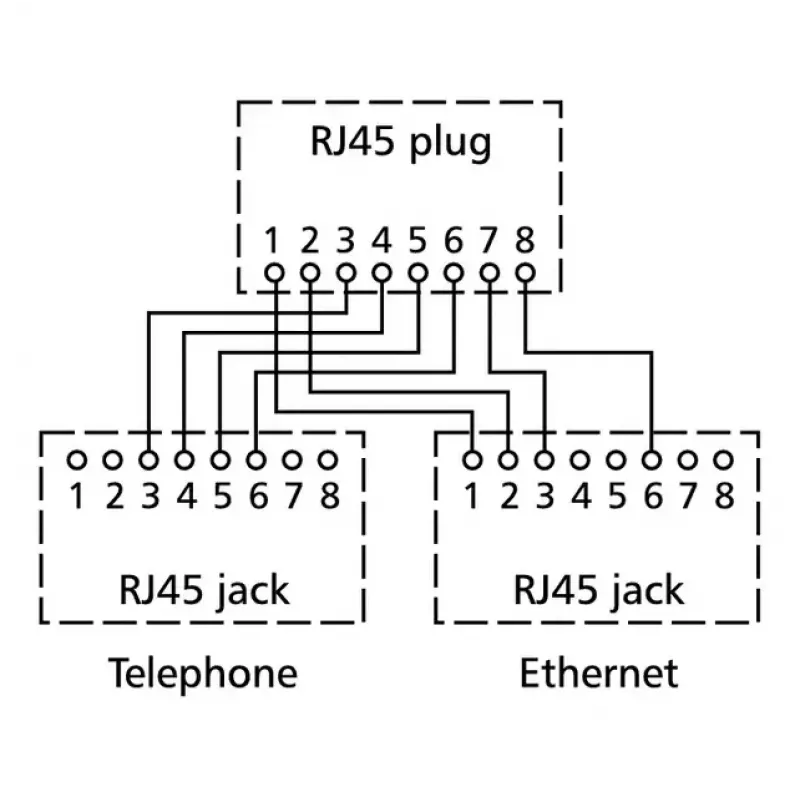

Connect one adapter to the 8‑wire wall outlet and the matching adapter to the distributor or patch panel. Then attach the Ethernet device to the adapter's Ethernet pair and the telephone/ISDN device to the telephone pair. The adapters separate the 8‑wire line into two independent 4‑wire services without additional configuration. For reliable operation ensure the paired adapters are used at both ends of the link.

Recommendations

Use the adapters as a matched pair and avoid routing the short flexible leads near strong electromagnetic sources. For permanent or high‑speed Ethernet installations consider dedicated cabling; this splitter is intended for scenarios where sharing an existing 8‑wire installation is required.
