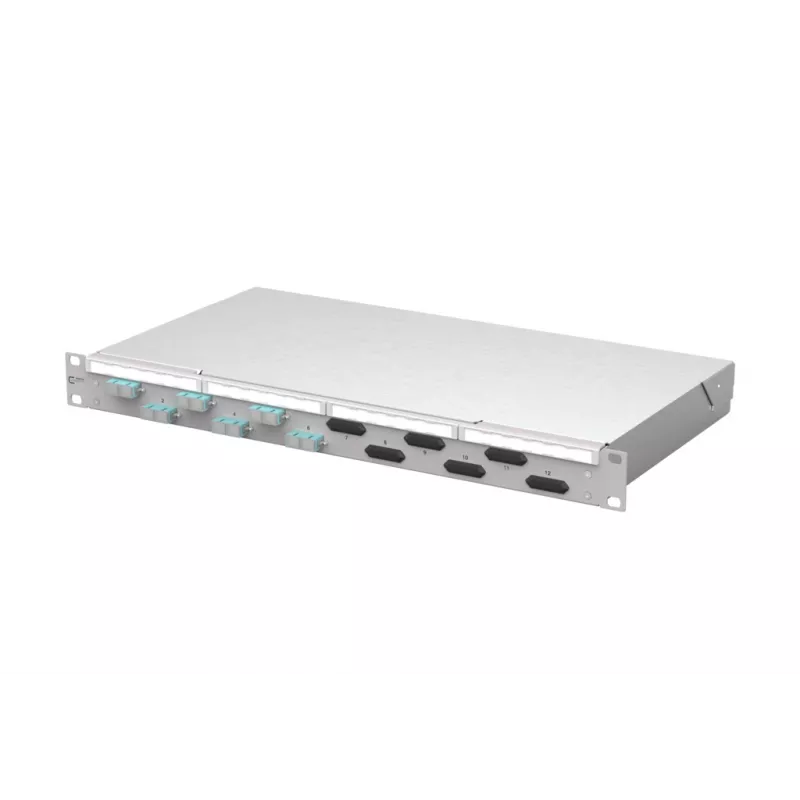

METZ CONNECT VIK 6xSC-D OM3 Patch Panel οπτικών ινών, 6 θύρες, SC Duplex, 1U, γκρι 150450BA06-F

The METZ CONNECT VIK 6xSC-D OM3 is a fibre optic patch panel engineered for high-density data centre and enterprise network environments. Its standout feature is the pre-installed 6-port SC duplex adapter plate, which provides 12 OM3 multimode fibre connections in a compact 1U 19-inch rack-mount form factor. This panel simplifies fibre management while ensuring low insertion loss and reliable performance for 10 Gigabit Ethernet and beyond.

Advantages

The panel's steel housing with light grey powder coating (RAL 7035) offers robust protection and a professional appearance. Zirconia ceramic adapter sleeves guarantee precise alignment and durability, with typical insertion loss below 0.5 dB and return loss above 30 dB. The integrated splice cassette capacity of up to 24 fibres allows for organised splicing and future expansion. Tool-free installation and clear port labelling reduce setup time and maintenance effort.

Suitable for

• Data centres requiring high-density fibre patching
• Enterprise LAN backbones and campus networks
• Telecommunications rooms and equipment racks
• Fibre-to-the-desk deployments in modern offices
• Network upgrades to OM3 multimode infrastructure

Key specifications

• Product type: Fibre optic patch panel
• Fibre type: Multimode OM3
• Connector type: SC Duplex
• Number of ports: 6 (12 fibres)
• Mounting: 19-inch rack, 1U height
• Housing material: Steel sheet, powder-coated
• Housing colour: Light grey (RAL 7035)
• Adapter sleeve material: Zirconia ceramic
• Insertion loss: < 0.5 dB typical
• Return loss: > 30 dB typical
• Operating temperature: -10 °C to +60 °C
• Storage temperature: -25 °C to +70 °C
• Splice cassette capacity: up to 24 fibres
• Standards: IEC 61753-1, IEC 61754-4, EN 50173-1, ISO/IEC 11801

Recommendations

For network architects and installers seeking a reliable, standards-compliant fibre patching solution, the METZ CONNECT VIK 6xSC-D OM3 delivers consistent performance and easy scalability. Pair it with OM3 patch cables and pigtails to complete your fibre infrastructure.
