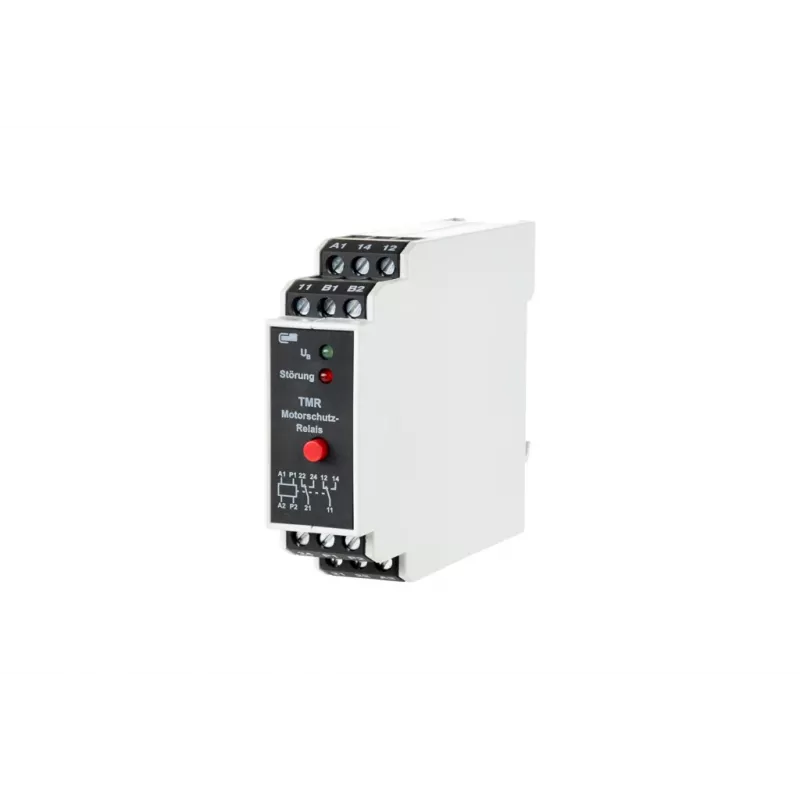

METZ CONNECT TMR-E12 με Αποθήκευση Σφαλμάτων 1103160522 (1103160522)

The METZ CONNECT TMR-E12 Fault Memory Module (1103160522) is a dedicated accessory for METZ CONNECT C6A sensor modules, designed to record and store error messages from connected sensors. It ensures reliable monitoring and diagnostics in critical network environments.

Advantages

Non-volatile memory retains up to 100 error messages even after power loss. Each error is time-stamped for precise troubleshooting. Three LEDs (Power, Status, Error) provide immediate visual status indication. Manual reset function allows easy clearing of stored errors.

Suitable for

• Data centers and server rooms requiring continuous environmental monitoring
• Industrial automation and building management systems
• Any installation using METZ CONNECT C6A sensor modules (e.g., 11031605xx series)

Key specifications

• Product Type: Fault Memory Module
• Memory Capacity: Up to 100 error messages
• Data Storage: Non-volatile memory
• Error Types: Sensor failure, threshold violations, cable break, short circuit
• Time Stamp: Yes, for each error
• Display: 3 LEDs (Power, Status, Error)
• Interface: RJ45
• Power Supply: Via connected C6A module
• Operating Voltage: 12-24 V DC
• Current Consumption: Max. 20 mA
• Operating Temperature: -20 °C to +70 °C
• Storage Temperature: -20 °C to +70 °C
• Humidity: 5-95% RH (non-condensing)
• Mounting: Direct plug-on to C6A module
• Housing Material: Polycarbonate (PC)
• Protection Class: IP20
• Reset Function: Manual

Recommendations

For optimal performance, use with METZ CONNECT C6A sensor modules. Ensure proper installation and avoid exposure to condensing humidity.
