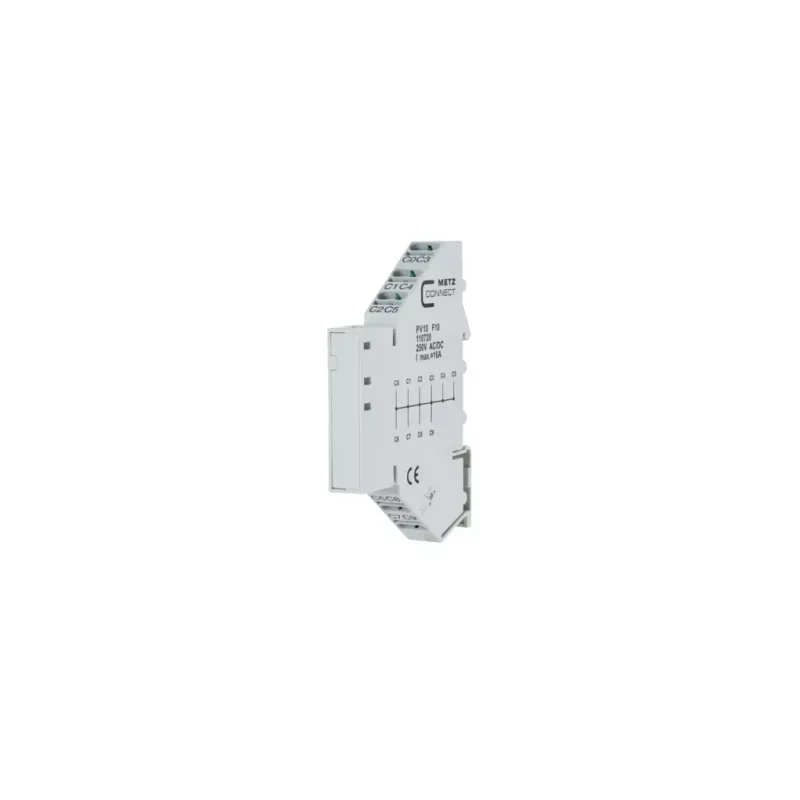

METZ CONNECT PV10 F10 Ρελέ ισχύος 24V DC 1 CO 10A Λευκό 110720

Automation engineers and panel builders often need a compact, reliable relay that can switch moderate AC loads directly from a PLC or controller output. The METZ CONNECT PV10 F10 power switching relay fits that role perfectly in industrial control cabinets, building automation systems, and HVAC equipment. Its 24 V DC coil is compatible with standard industrial control signals, while the single changeover contact handles up to 10 A at 250 V AC, making it suitable for switching fans, pumps, valves, and lighting circuits.

Key specifications

• Coil voltage: 24 V DC
• Contact configuration: 1 changeover (SPDT)
• Rated contact current: 10 A
• Rated contact voltage: 250 V AC
• Max. switching power (resistive): 2500 VA
• Contact material: AgNi (silver nickel)
• Dielectric strength coil-contact: 5000 V AC
• Dielectric strength open contacts: 1000 V AC
• Operating temperature range: -40°C to +85°C
• Mechanical life: 10,000,000 operations
• Electrical life: 100,000 operations at rated load
• Mounting: Through-hole (THT) / PCB mount
• Protection degree: RTII (flux proof)
• Coil power: 0.36 W
• Insulation resistance: >100 MΩ at 500 V DC
• Terminal type: Solder pins
• Approvals: VDE, UL, cUL, CQC

Why choose it

This relay is built for longevity and safety in demanding industrial environments. The silver nickel contact material resists welding and provides stable contact resistance over many switching cycles. The high dielectric strength between coil and contacts ensures safe isolation between control and load circuits. Its flux-proof design protects against contamination during PCB soldering and cleaning, while the wide operating temperature range allows use in harsh conditions. With VDE, UL, and other international approvals, it meets global safety standards.

Ideal use cases

• Switching AC loads in PLC-controlled machinery
• Building automation for lighting and HVAC control
• Interposing relay for contactors or solenoids
• PCB-based control boards requiring a power relay
• Industrial timers and sequence controllers

Good to know

The relay is supplied in a white housing and is intended for PCB mounting via solder pins. It is a component for integration into larger equipment, not a standalone device. Always verify coil polarity and observe the maximum switching ratings to ensure reliable operation. For high inductive loads, consider using a snubber or varistor across the contacts to extend electrical life.
