METZ CONNECT OpDAT Patchkabel LC-S APC/LC-S APC OS2 Duplex 5m κίτρινο

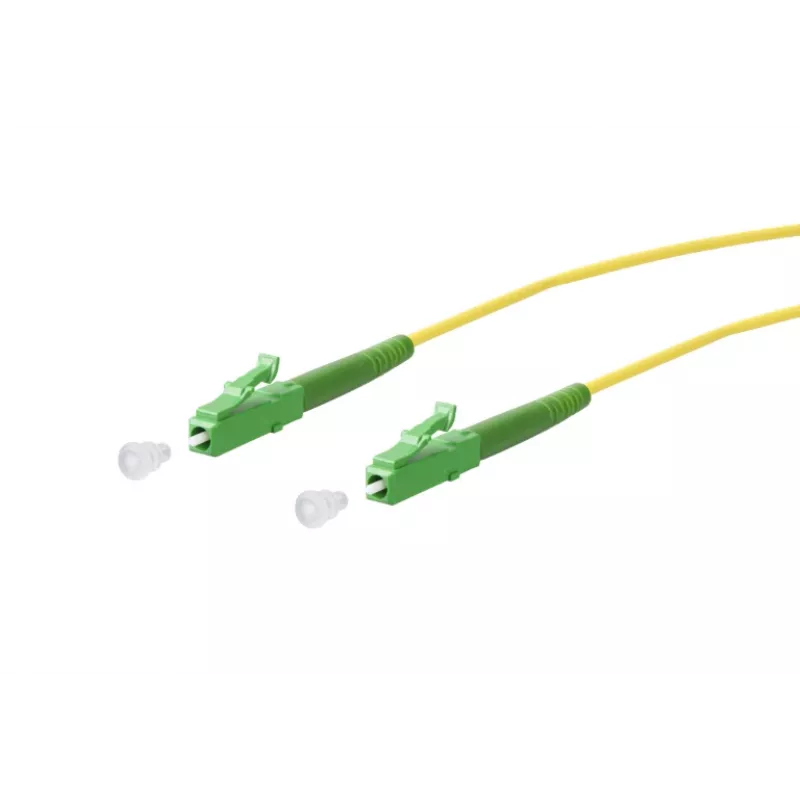

The METZ CONNECT OpDAT Patch Cable 151P3JAJA05E is a high-performance fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, and enterprise networks. Featuring LC-Simplex APC connectors on both ends, this duplex cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

Exceptional bend-insensitive fiber (ITU-T G.657.A1) allows for tight routing without signal degradation. LSZH jacket ensures safety in enclosed spaces. Zirconia ceramic ferrules provide precise alignment and durability.

Suitable for

• Fiber-to-the-home (FTTH) installations
• Data center patching
• Telecommunications networks
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Connector Type A: LC-Simplex APC
• Connector Type B: LC-Simplex APC
• Fiber Type: Single-mode (OS2)
• Core/Cladding: 9/125 µm
• Cable Length: 5 meters
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, pair with METZ CONNECT OpDAT adapters and patch panels. Ensure proper cleaning of connectors before installation.
