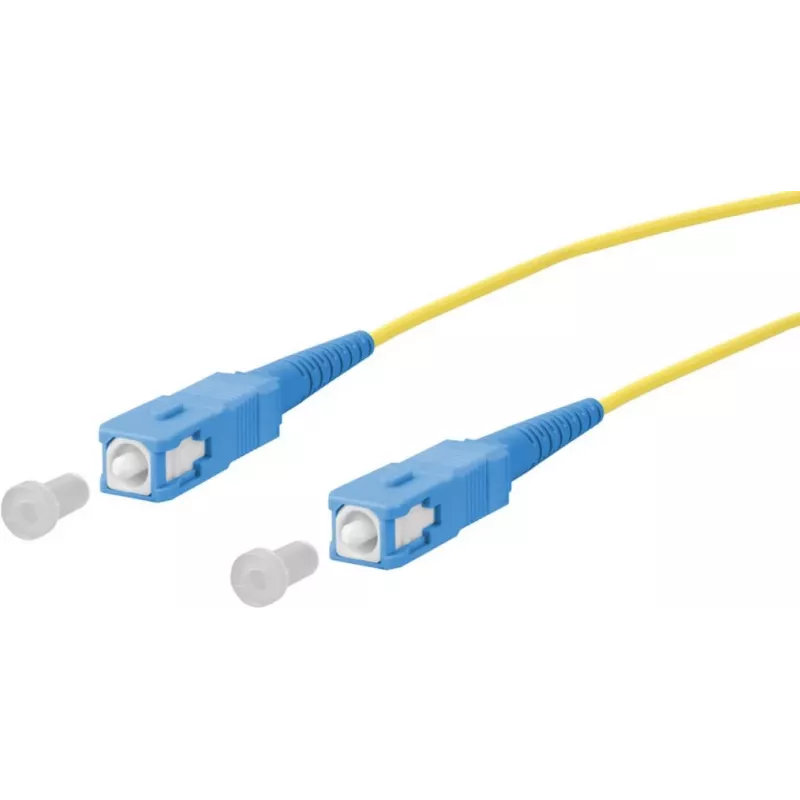

METZ CONNECT OpDAT καλώδιο patch SC-S/SC-S OS2 3.0 151P3EOEO30E

The METZ CONNECT OpDAT patch cable is a high-quality fiber optic cable designed for reliable single-mode connections in data centers, telecommunications, and LAN networks. With SC-Simplex connectors on both ends and OS2 fiber class, it ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers exceptional performance with typical insertion loss <0.25 dB and return loss >50 dB. The LSZH jacket provides safety in enclosed spaces, while the 3.0 mm diameter ensures flexibility and durability. The yellow color makes it easy to identify as a single-mode cable.

Suitable for

• Data centers requiring high-speed, reliable connections
• Telecommunications infrastructure
• Local Area Networks (LAN)
• FTTx applications

Key specifications

• Fiber Type: Single-mode (OS2)
• Connectors: SC-Simplex to SC-Simplex
• Number of Fibers: 1
• Cable Diameter: 3.0 mm
• Cable Length: 30 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Polishing Type: UPC
• Insertion Loss: <0.25 dB (typical)
• Return Loss: >50 dB (typical)
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61754-4, TIA/EIA-604-3, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone cabling and patching in structured cabling systems.
