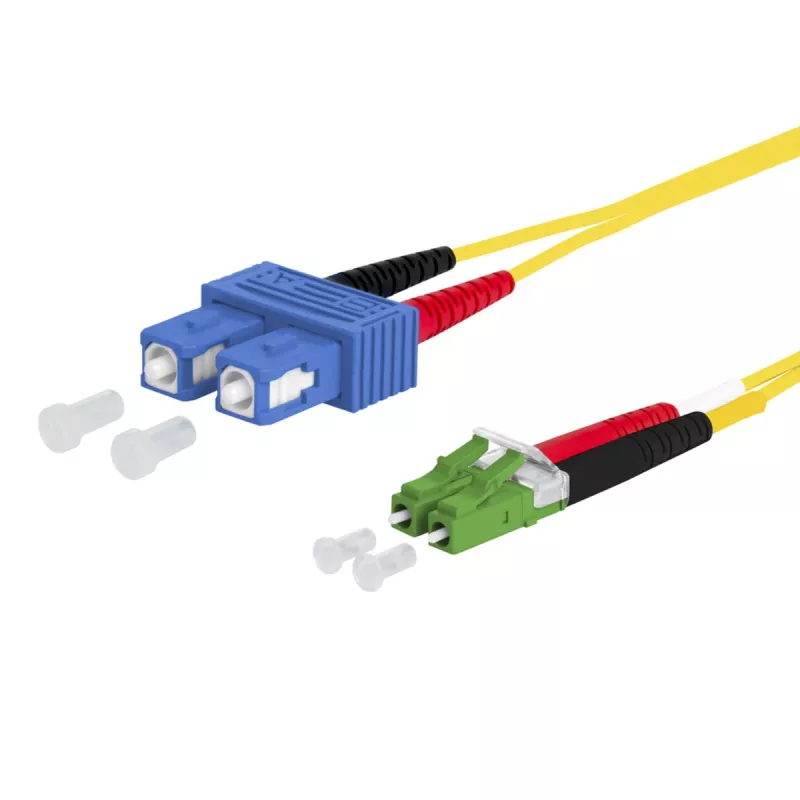

METZ CONNECT OpDAT Καλώδιο patch SC-D/LC-D APC OS2 2,0 m

The METZ CONNECT OpDAT patch cable is a high-quality fiber optic patch cable designed for reliable and high-performance connections in data centers, telecommunications, and LAN networks. With SC-Duplex to LC-Duplex connectors and APC polish, this OS2 singlemode cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers excellent optical performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH (Low Smoke Zero Halogen) jacket provides safety in enclosed spaces, while the yellow color ensures easy identification. The 2.0 mm cable diameter and 30 mm minimum bending radius allow for flexible installation.

Suitable for

• Data center cabling
• Telecommunications networks
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx applications

Key specifications

• Fiber mode: Singlemode OS2 (G.657.A1/A2)
• Connectors: SC-Duplex to LC-Duplex, APC polish
• Length: 2.0 m
• Number of fibers: 2 (duplex)
• Jacket material: LSZH, color yellow
• Cable diameter: 2.0 mm
• Insertion loss: ≤0.3 dB typical
• Return loss: ≥60 dB typical
• Attenuation: ≤0.35 dB/km @ 1310nm, ≤0.25 dB/km @ 1550nm
• Operating temperature: -20°C to +70°C
• Standards: IEC 61753-1, IEC 61754-4, IEC 61754-20, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for high-speed data transmission in structured cabling systems.
