METZ CONNECT M12-M12 8-polig X-kodiert Schleppkette 10 m

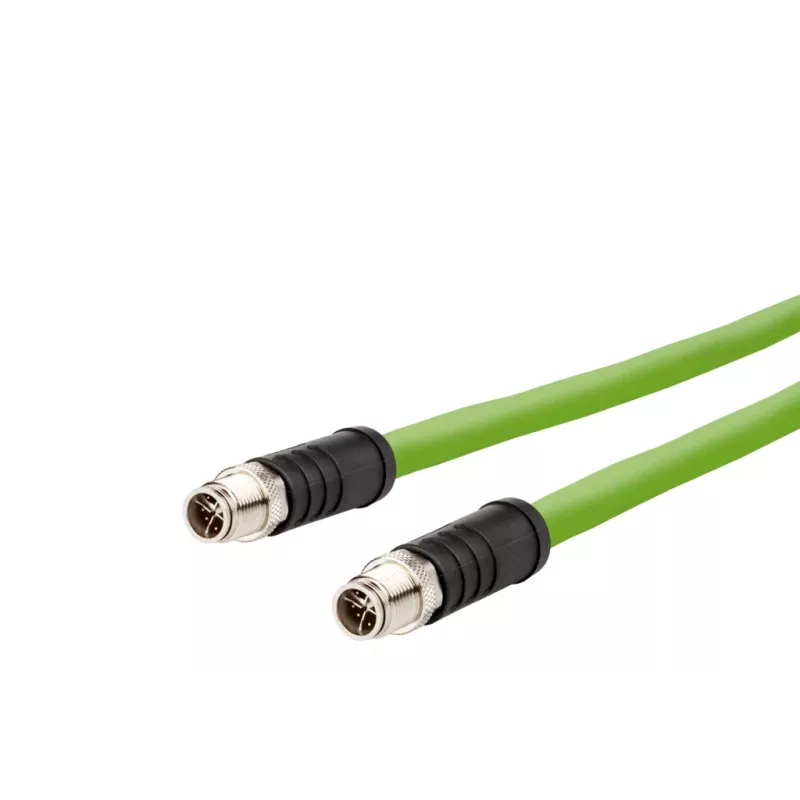

The METZ CONNECT connection cable features M12 to M12 connectors, both straight, with 8-pin X-coded contacts. It is designed for drag chain applications and has a length of 10 m.

Key features

• M12 to M12 connection cable
• 8-pin X-coded
• Straight connectors on both ends
• Suitable for drag chain use
• Length: 10 m

Specifications

• Brand: METZ
• MPN: 142M6X11100
• Connector type: M12 to M12
• Number of pins: 8
• Coding: X-coded
• Connector orientation: straight on both ends
• Application: drag chain
• Cable length: 10 m
