METZ CONNECT Καλώδιο patch OpDAT LC-Duplex/LC-Duplex OM5 3m Πράσινο λάιμ 151R1JOJO30E

Supports 100 Gigabit Ethernet over multimode fiber with OM5 broadband multimode fiber (WBMMF) and a 3-meter length.

Overview

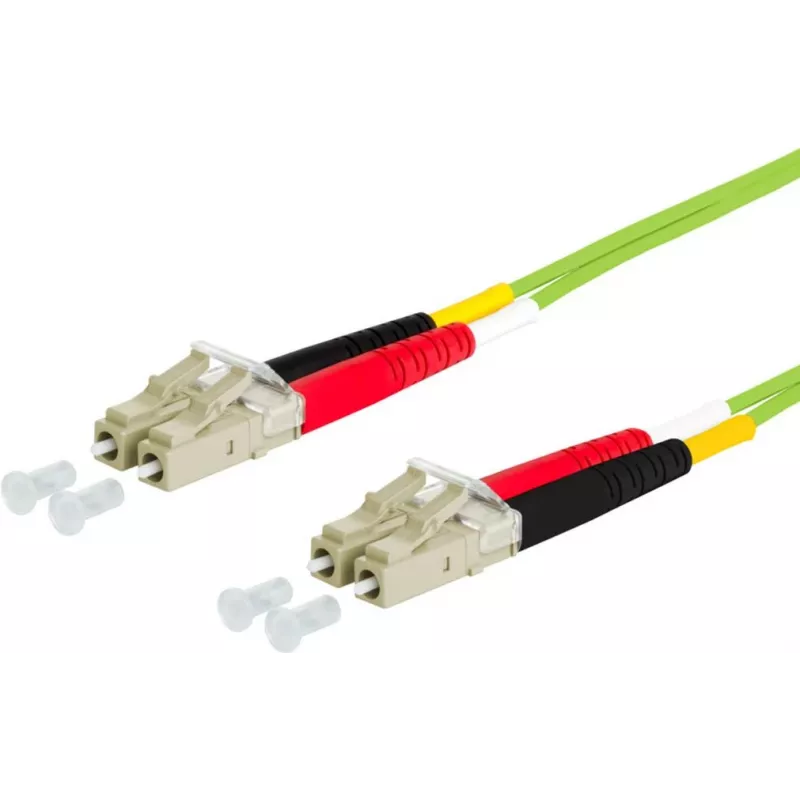

The METZ CONNECT OpDAT patch cable is a duplex fiber optic patch cord with LC-Duplex connectors on both ends. It uses OM5 multimode fiber, optimized for short-wavelength division multiplexing (SWDM) and designed for high-speed data transmission up to 100 Gbps. The cable has a lime green LSZH jacket for easy identification and safety in indoor installations.

What stands out

• OM5 fiber supports 40/100 Gigabit Ethernet with SWDM technology.
• LC-Duplex connectors with zirconia ceramic ferrules for low insertion loss.
• Lime green LSZH jacket is halogen-free and flame-retardant.
• 3-meter length ideal for patching in data centers and enterprise networks.

Technical details

• Fiber type: Multimode OM5 (50/125 µm)
• Connectors: LC-Duplex to LC-Duplex
• Length: 3 m
• Jacket material: LSZH
• Insertion loss: ≤ 0.3 dB per connector
• Return loss: ≥ 30 dB
• Modal bandwidth: 2800 MHz·km @ 850 nm, 4700 MHz·km @ 953 nm
• Operating temperature: -20°C to +70°C

Our verdict

A reliable OM5 patch cable for high-speed multimode fiber links, with a durable LSZH jacket and precision LC connectors.
