METZ CONNECT BTR E-DAT C6 6x8 AP Distributor Patch Panel - CAT 6 - STP - Γκρι - 1U - 19 ίντσες

The METZ CONNECT BTR E-DAT C6 6x8 AP Distributor Patch Panel is a high-performance, shielded patch panel designed for structured cabling in professional network environments. It provides reliable connectivity for Category 6 applications, supporting Gigabit Ethernet and data transmission up to 250 MHz. The panel features 6 RJ45 ports with 8 contacts each, housed in a robust 1U 19-inch rack-mountable steel chassis. Its STP shielding ensures excellent protection against electromagnetic interference, making it ideal for demanding industrial or data center installations.

Advantages

This patch panel offers superior signal integrity and durability. The gold-plated contacts and LSA-Plus IDC termination ensure secure, corrosion-resistant connections. The integrated labeling fields simplify cable management and identification. Central grounding connection enhances safety and performance. Compliant with RoHS and REACH standards, it is an environmentally responsible choice.

Suitable for

• Data centers and server rooms requiring high-density, shielded cabling
• Industrial networks with high EMI environments
• Structured cabling systems for Gigabit Ethernet (1000BASE-T)
• Professional installations where reliability and performance are critical

Key specifications

• Product Type: Patch Panel
• Cabling Standard: Category 6 (CAT 6)
• Shielding Type: STP (Shielded Twisted Pair)
• Number of Ports: 6
• Connector Type: RJ45
• Rack Unit Size: 1U
• Rack Compatibility: 19-inch (48.3 cm)
• Colour: Grey
• Mounting: Rack-mountable
• Transmission Performance: Up to 250 MHz

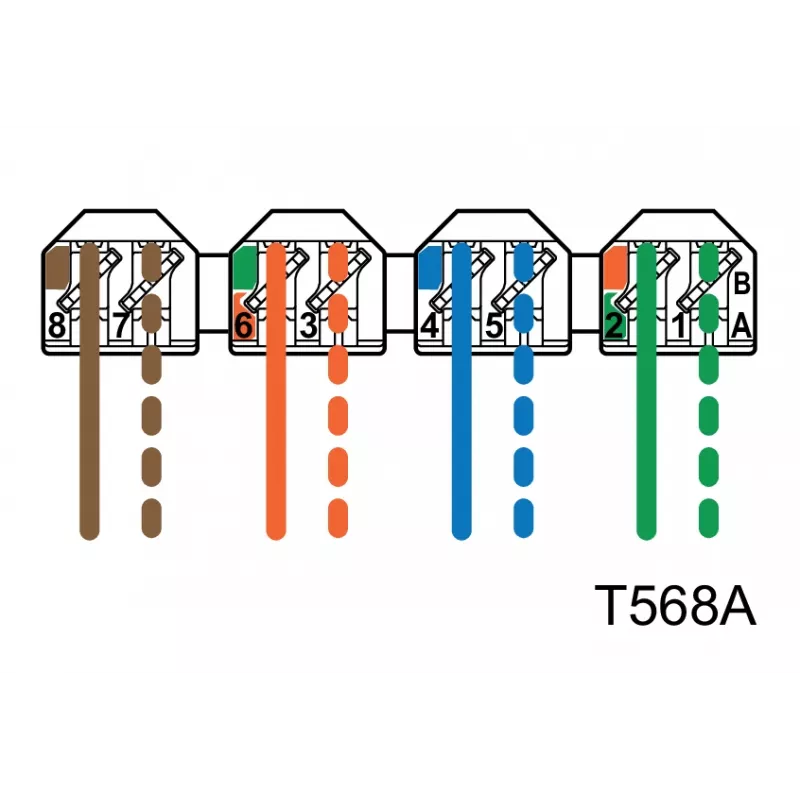

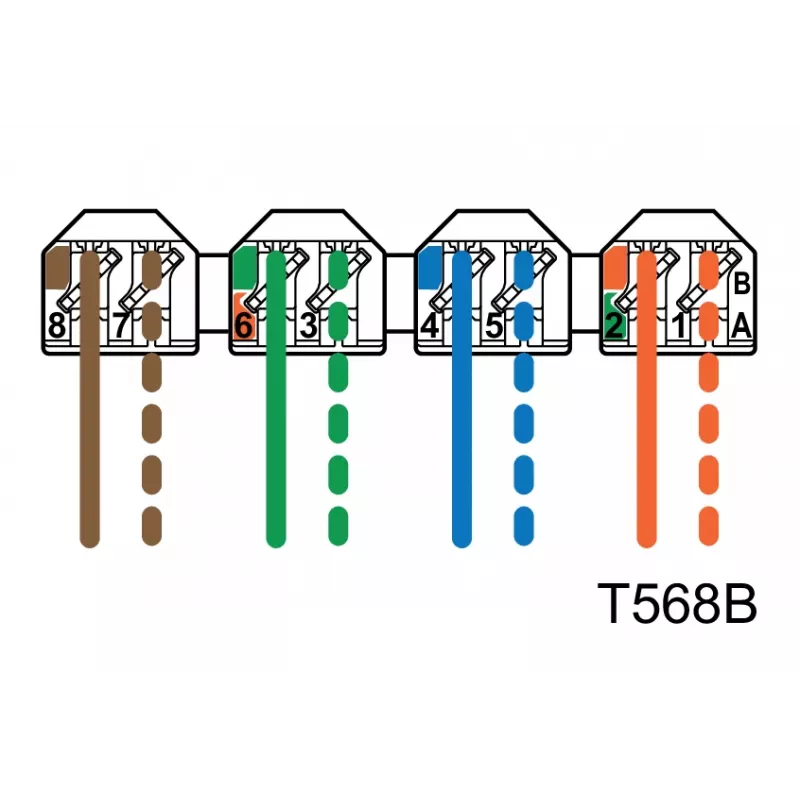

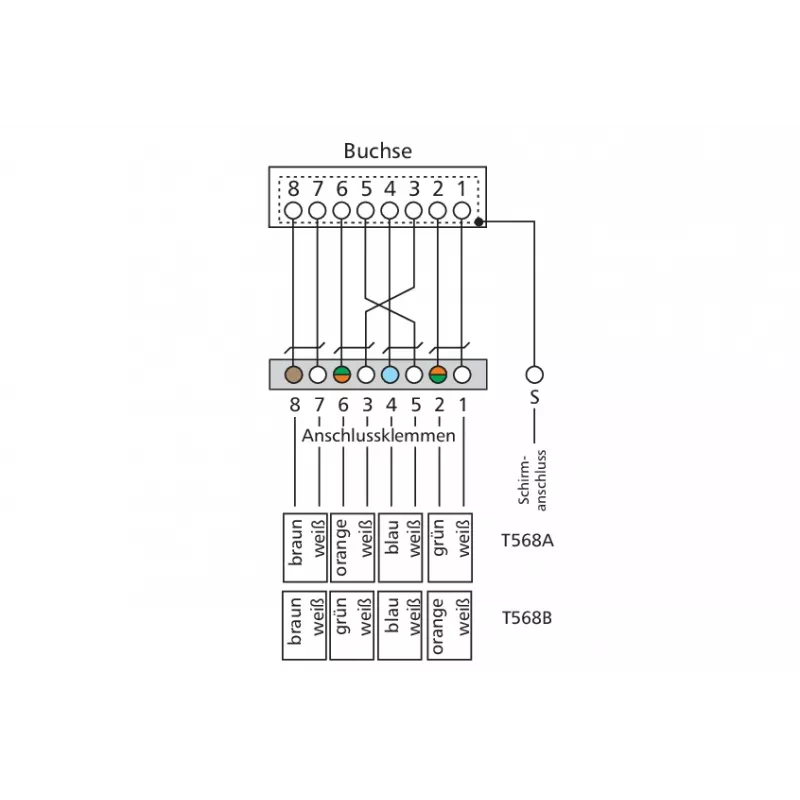

• Wiring Standard: TIA/EIA 568A/B
• Termination Type: LSA-Plus IDC
• Housing Material: Sheet steel (powder-coated)
• Contact Plating: Gold-plated contacts
• Application: Gigabit Ethernet (1000BASE-T)
• Grounding: Central grounding connection
• Design: AP distributor (Assembly Panel distributor)
• Compliance: RoHS, REACH
• Port Configuration: 6x RJ45 ports, 8 contacts per port
• Front Panel Labeling: Integrated labeling fields

Recommendations

For optimal performance, use with Category 6 STP cables and compatible RJ45 connectors. Ensure proper grounding to maximize shielding effectiveness. Ideal for new installations or upgrades to existing network infrastructure.
