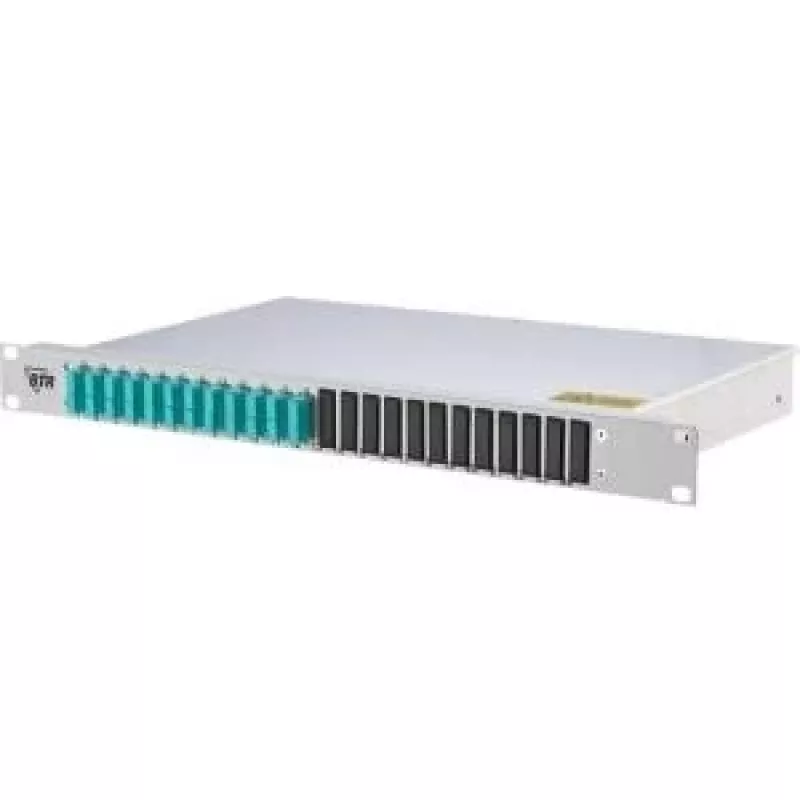

METZ CONNECT 150255BA12-E Patch panel οπτικών ινών 1U 24-Port LC-Duplex OM4 - γκρι (RAL 7035)

The METZ CONNECT 150255BA12-E is a high-quality 1U 19-inch fiber optic patch panel designed for professional data center, LAN, SAN, and FTTx applications. It comes pre-assembled with 24 LC-Duplex OM4 pigtails, offering a ready-to-use solution for efficient fiber management. The panel is finished in grey (RAL 7035) and features a robust powder-coated steel construction for durability and reliable performance.

Advantages

This patch panel simplifies fiber optic cabling with its integrated splice tray and pre-assembled pigtails, reducing installation time and ensuring consistent low insertion loss (max 0.3 dB) and high return loss (min 30 dB). The rear cable entry and integrated strain relief provide excellent cable management, while the front labeling fields allow for easy identification of connections. Compliant with IEC 61753-1 and ISO/IEC 11801 standards, it guarantees reliable operation in demanding environments.

Suitable for

• Data centers requiring high-density fiber patching
• Local Area Networks (LAN) with OM4 multimode fiber
• Storage Area Networks (SAN) for high-speed data transfer
• FTTx deployments needing compact and organized fiber termination

Key specifications

• Product Type: Fiber Optic Patch Panel
• Rack Height: 1U
• Mounting: 19-inch rack mount
• Number of Ports: 24
• Connector Type: LC-Duplex
• Fiber Type: Multimode OM4
• Colour: Grey (RAL 7035)
• Material: Powder-coated steel
• Cable Entry: Rear
• Included Pigtails: 24x LC-Duplex OM4 (pre-assembled)
• Insertion Loss (Max): 0.3 dB
• Return Loss (Min): 30 dB
• Operating Temperature: -10 to +60 °C
• Protection Class: IP20

Recommendations

For optimal performance, pair this patch panel with OM4 patch cables and ensure proper cable management to maintain bend radius and minimize signal loss. Ideal for high-speed networks requiring reliable fiber connectivity.
