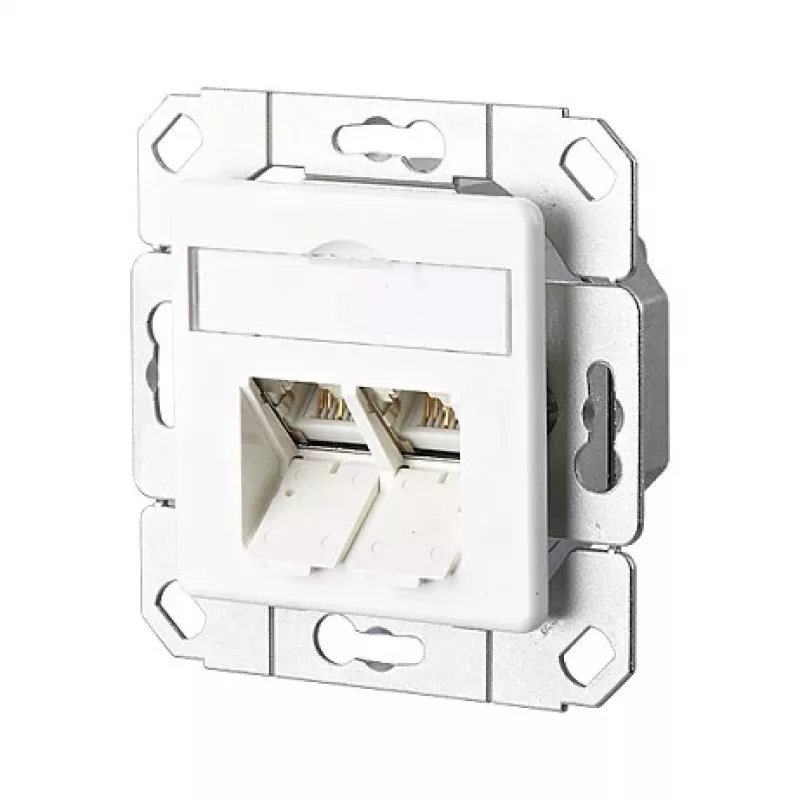

Metz Connect 130C381102-I E-DAT C6A Πρίζα σύνδεσης χωνευτή 2 θυρών, Λευκό

The Metz Connect 130C381102-I E-DAT C6A is a flush-mount outlet with two RJ-45 sockets and Cat.6A network cable category. It is designed for 10 GBit Ethernet and supports Power over Ethernet (PoE, PoE plus and UPoE).

Key features

• Channel connection unit with one or two 8-pole RJ45 sockets
• Cat.6A component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT certified
• Compliance with Class EA up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
• Tested: component up to 600 MHz, link up to 800 MHz
• For 10 GBit Ethernet (IEEE 802.3an)
• Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
• HF-optimized and ergonomically shaped LSA connection terminal
• Screw fastening of the flap for strain relief and shield connection from the front
• Practical cable feed from 8 sides
• Connection of data lines AWG26/1 - 22/1 (solid wire)
• Plug direction inclined 45° downwards
• With viewing window for enclosed labeling insert
• Labeling sheet 209 x 294 mm see accessories
• Integrated dust protection flaps (also available in color)
• Compatible with design central plates of switch programs
• Suitable for installation in standard flush-mounted boxes and hollow wall boxes

Specifications

• Brand: METZ
• MPN: 130C381102-I
• Ethernet LAN: Yes
• Socket type: RJ-45
• Number of sockets: 2
• Network cable category: 6a
• Product color: White
