METZ CONNECT 1309413003-E Κιτ Συναρμολόγησης για Μονάδες C6Amodul RJ45 Keystone

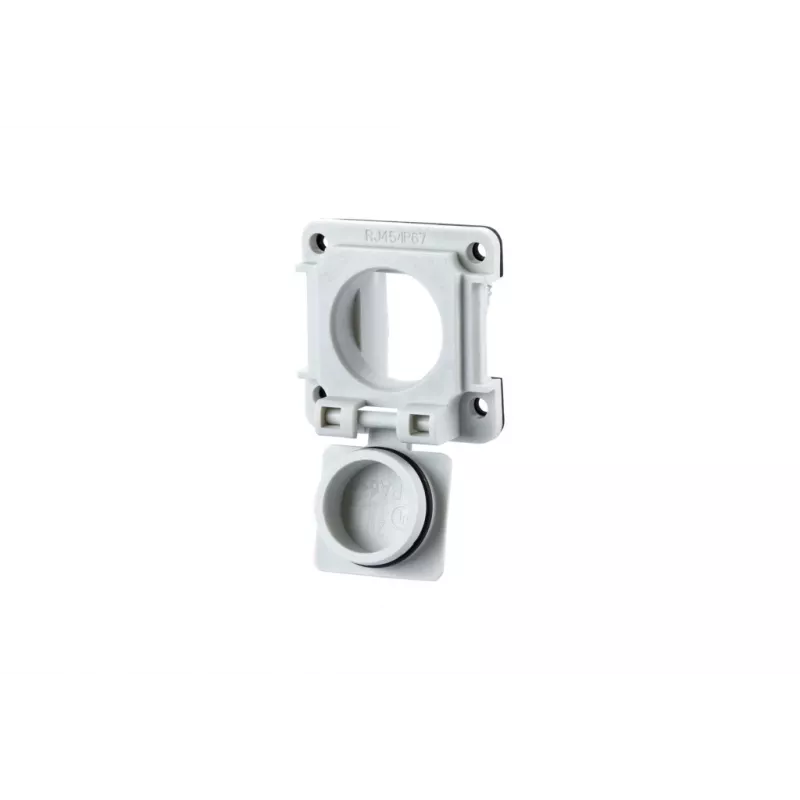

Secure and protect a single RJ45 keystone module from the C6Amodul series with this thermoplastic mounting kit. The frame accepts the module at either 180° or 270°, allowing straight or angled cable entry in tight spaces. A snap-in mechanism holds the module firmly without tools, while the integrated strain relief clamps the cable jacket to prevent accidental disconnection and maintain signal integrity. The dust protection cover snaps over the port when idle, keeping contacts clean from dirt and moisture. Two corrosion-resistant steel screws anchor the frame into a standard back box or surface-mount housing. Light grey (RAL 7035) blends with common faceplates. RoHS compliant.

Advantages

Tool-free snap-in installation saves time on site. Robust thermoplastic frame resists impact and wear. Dust cover protects unused ports. Strain relief reduces stress on termination points. Steel screws ensure long-term stability. Supports two module orientations for flexible cable routing.

Suitable for

• Office and commercial network installations
• Educational and retail environments
• Retrofitting existing faceplates with C6Amodul keystone jacks
• High-traffic areas requiring dust protection

Key specifications

• Compatible module series: METZ CONNECT C6Amodul
• Supported module angles: 180°, 270°
• Modules supported: 1
• Frame, dust cover, strain relief material: thermoplastic
• Screw material: steel
• Mounting type: screw-fastened frame, snap-in module
• Colour: light grey (RAL 7035 equivalent)
• RoHS compliant

Recommendations

Pair with METZ CONNECT C6Amodul RJ45 keystone modules for a complete, reliable outlet. Ideal for installers needing a durable, dust-protected solution with flexible cable entry.
