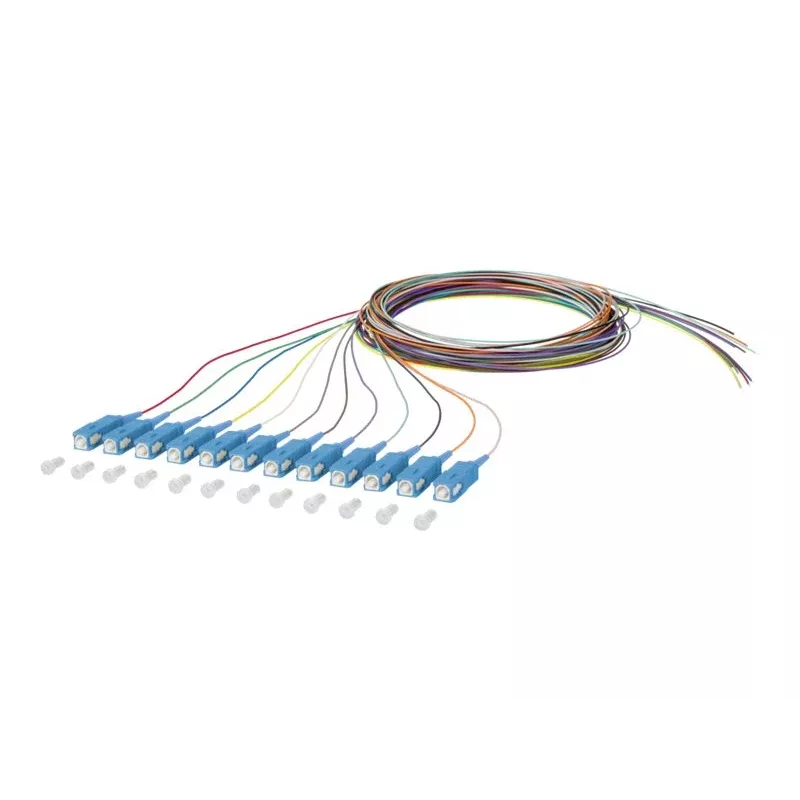

METZ BTR 150Q1CO0020E OpDAT Pigtail SC-UPC OS2 12 χρώματα 2m μονότροπη ίνα E9/125

For structured cabling projects that demand reliable single-mode performance without field connector termination, this 12-fiber pigtail bundle from the OpDAT series delivers a factory-terminated SC/UPC connector on one end and bare fiber on the other, ready for splicing into backbone or horizontal runs. The 2-meter length and color-coded individual fibers simplify installation and identification, while the LSZH jacket supports fire safety requirements in public and commercial buildings.

Highlights

• 12 single-mode OS2 fibers, each with a distinct color per DIN VDE 0888 for easy identification
• SC/UPC connector with low insertion loss (≤ 0.3 dB) and high return loss (≥ 50 dB)
• 2-meter pigtail length, ideal for splicing into distribution frames or cassettes
• LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Compliant with RoHS, IEC 61753-1, and TIA/EIA-568.3-D standards

In daily use

Technicians will appreciate the pre-terminated SC connector, which eliminates the need for field polishing and reduces installation time. The 9/125 µm core/cladding diameter ensures compatibility with standard OS2 single-mode networks, supporting high-bandwidth applications in data centers, telecom rooms, and FTTx deployments. The 12-color coding aligns with industry norms, making it straightforward to map fibers to ports or splice trays.

Full specifications

• Product type: Fiber optic pigtail
• Fiber mode: Single-mode (OS2)
• Core/cladding diameter: 9/125 µm
• Connector type (end 1): SC/UPC
• Connector type (end 2): Unterminated (for splicing)
• Number of fibers: 12
• Pigtail length: 2 m
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 50 dB
• Jacket material: LSZH
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, IEC 61753-1, TIA/EIA-568.3-D
• Brand series: OpDAT
• Manufacturer: BTR Netcom

Final note

With its factory-terminated SC/UPC connectors and robust LSZH jacket, this pigtail bundle is a practical choice for installers seeking consistent optical performance and code compliance in demanding environments.
