METZ BTR 150900BB-I OpDAT SC-D MM Κεραμικό OM4 Erika Βιολετί Υποδοχή θηλυκή

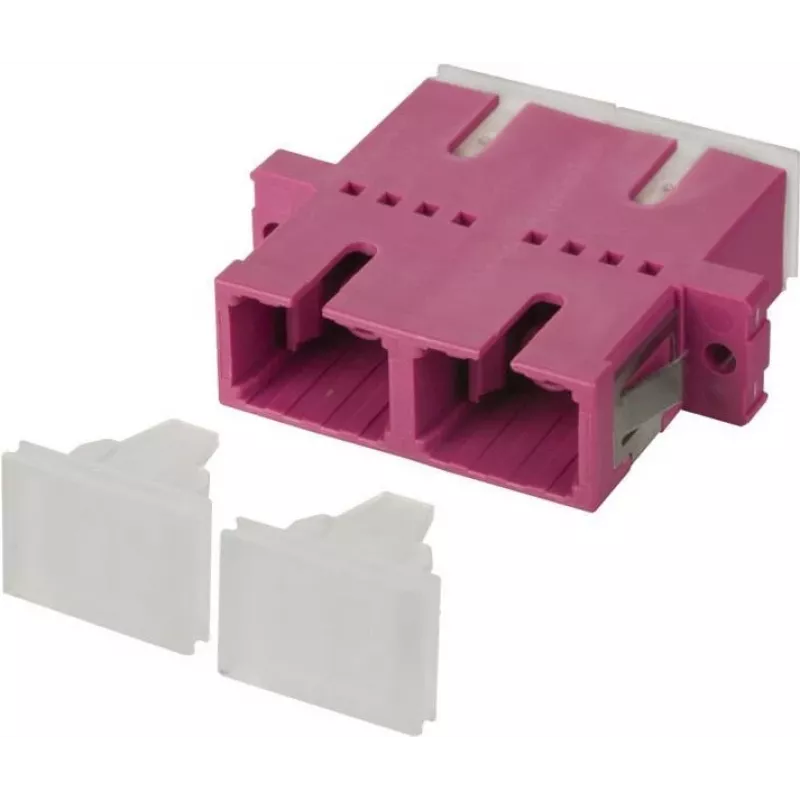

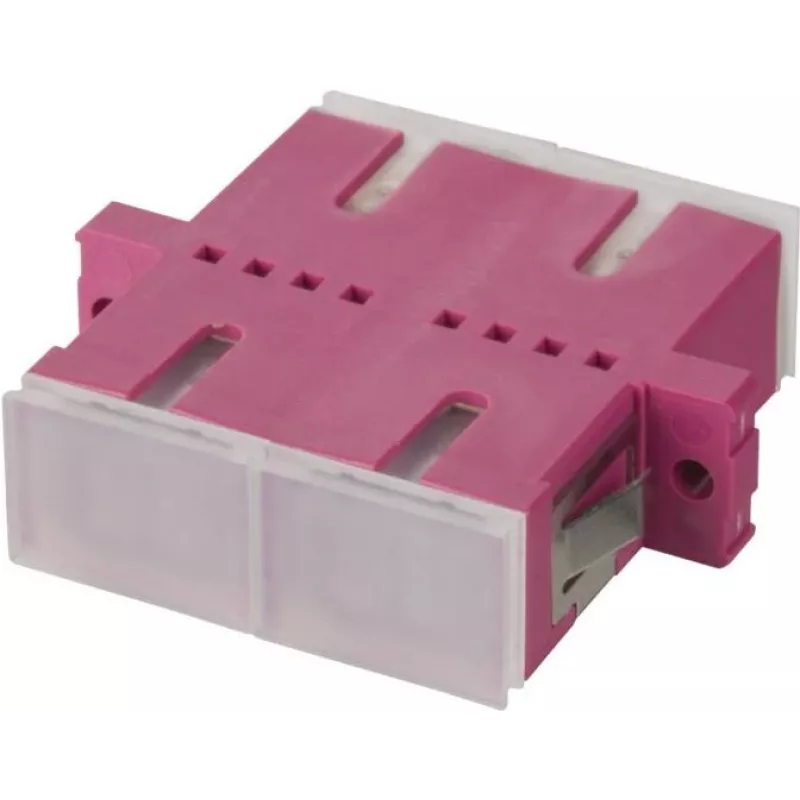

Fiber optic connectivity demands precision, and the METZ BTR 150900BB-I OpDAT SC-D coupler delivers exactly that with its zirconia ceramic ferrule and OM4 multimode performance. Engineered for flange mounting in patch panels, wall outlets, and distribution boxes, this duplex SC adapter ensures reliable, low-loss connections in high-speed networks. The erika violet housing provides instant visual identification, while the included dust caps protect the interface when not in use.

Advantages

Zirconia ceramic ferrules guarantee exceptional alignment and durability, with typical insertion loss below 0.2 dB and return loss exceeding 30 dB. The OM4 rating supports 10G, 40G, and 100G Ethernet over multimode fiber, making it future-ready for enterprise and data center applications. The high-grade plastic housing meets UL94 V-0 flammability standards, and the coupler withstands over 500 mating cycles for long-term reliability. Compliance with RoHS and REACH ensures environmental safety.

Suitable for

• Fiber optic patch panels in data centers and server rooms
• Wall outlets in office and industrial buildings
• Distribution boxes for FTTx and LAN deployments
• High-density OM4 multimode fiber installations
• Network upgrades requiring low insertion loss and high return loss

Key specifications

• Connector type: SC Duplex (SC-D)
• Fiber mode: Multimode (MM)
• Fiber category: OM4
• Ferrule material: Zirconia ceramic
• Insertion loss (typical): < 0.2 dB
• Return loss (typical): > 30 dB
• Mating cycles: > 500
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Housing material: High-grade plastic, UL94 V-0
• Compliance: RoHS, REACH, IEC 61754-4
• Mounting type: Flange mount
• Dust caps: Included
• Product series: OpDAT

Recommendations

For network installers and system integrators seeking a dependable SC duplex adapter, the METZ BTR 150900BB-I is an excellent choice. Its ceramic ferrule and OM4 compatibility ensure optimal performance in demanding environments. Pair it with METZ OpDAT patch cables and panels for a complete, high-quality fiber optic infrastructure.
