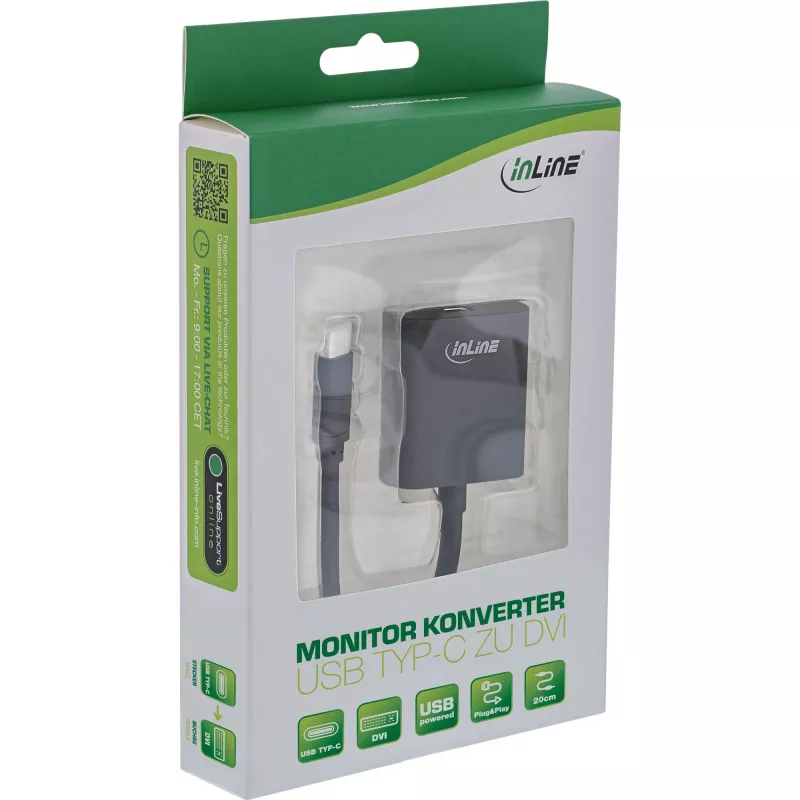

Μετατροπέας οθόνης USB InLine 64103B βύσμα USB-C σε υποδοχή DVI

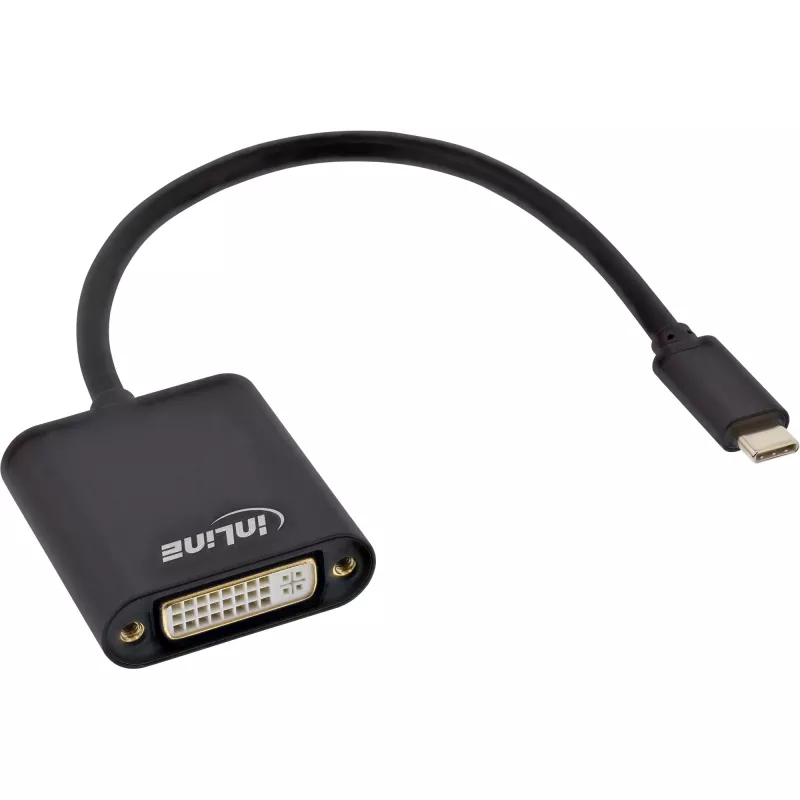

The InLine USB Display Converter 64103B (USB-C male to DVI female) enables connection of DVI monitors to computers or devices with a USB Type-C port that supports DisplayPort Alternate Mode. The compact adapter has a short integrated cable and transmits video signals up to 1920 x 1080 (1080p). It is USB powered and supports 3D and HDCP 1.3 for protected content delivery.

Advantages

This USB-C to DVI adapter supports DisplayPort 1.2 and is compatible with devices using Thunderbolt 3 and USB 3.1. The plug-and-play design requires no separate power supply and works with a wide range of operating systems starting from Windows 7 and macOS 10.9. Its DVI-D female socket ensures straightforward connection to standard DVI 24+5 cables and displays.

Suitable for

• Connecting a USB-C laptop or tablet to a DVI monitor or projector
• Presentations where a DVI input is required
• Extending or mirroring a desktop to an external DVI display

Key specifications

• Manufacturer: InLine, model 64103B
• Connector 1: USB Type-C (male)
• Connector 2: DVI-D 24+5 (female)
• Supported resolution: up to 1920 x 1080 (1080p)
• Standards: VESA DisplayPort 1.2, USB 3.1 compatible, Thunderbolt 3 supported
• HDCP: 1.3 compatible
• Power: USB powered (no external PSU required)
• Length: integrated short cable (approx. 0.2 m)
• Plug & Play: yes

How to use

Connect the USB Type-C plug of the adapter to a computer or device USB-C port that supports DisplayPort Alternate Mode (or to a Thunderbolt 3 port). Attach a standard DVI cable to the DVI-D female socket and to the monitor or projector. The adapter draws power from the host device and should be recognized automatically; select the appropriate display mode (extend or mirror) in the operating system display settings if necessary.

Recommendations

Ensure the host USB-C port supports DisplayPort Alternate Mode — this is often indicated by a small DisplayPort logo near the port. Use a DVI-D cable in good condition for reliable signal transmission and set the display resolution to 1920 x 1080 for optimal results.
