Μετατροπέας δικτύου Cudy MC100GSB-60B 1000 Mbit/s Multimode Singlemode μαύρος

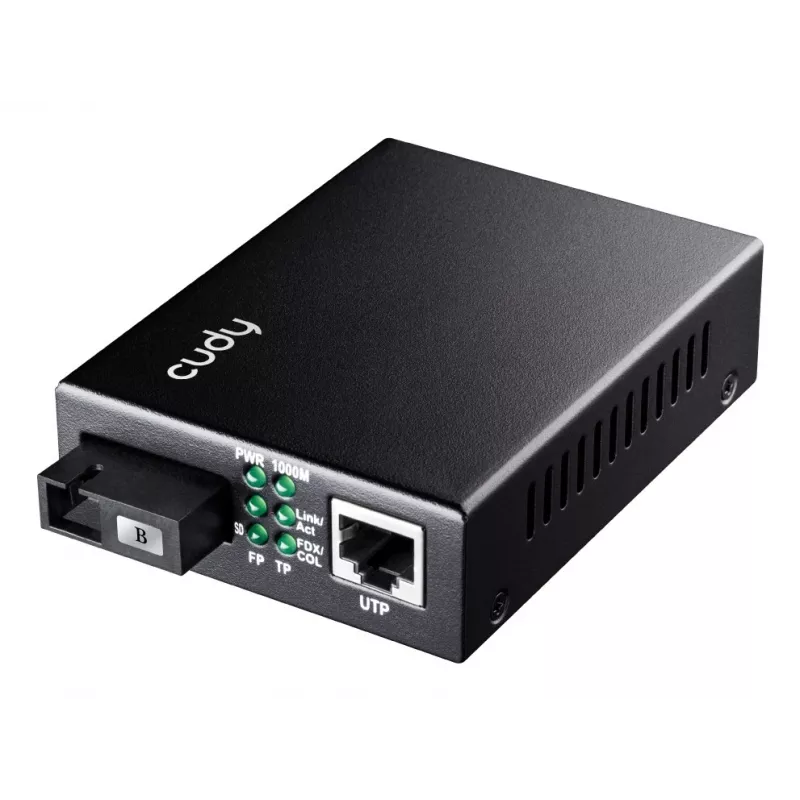

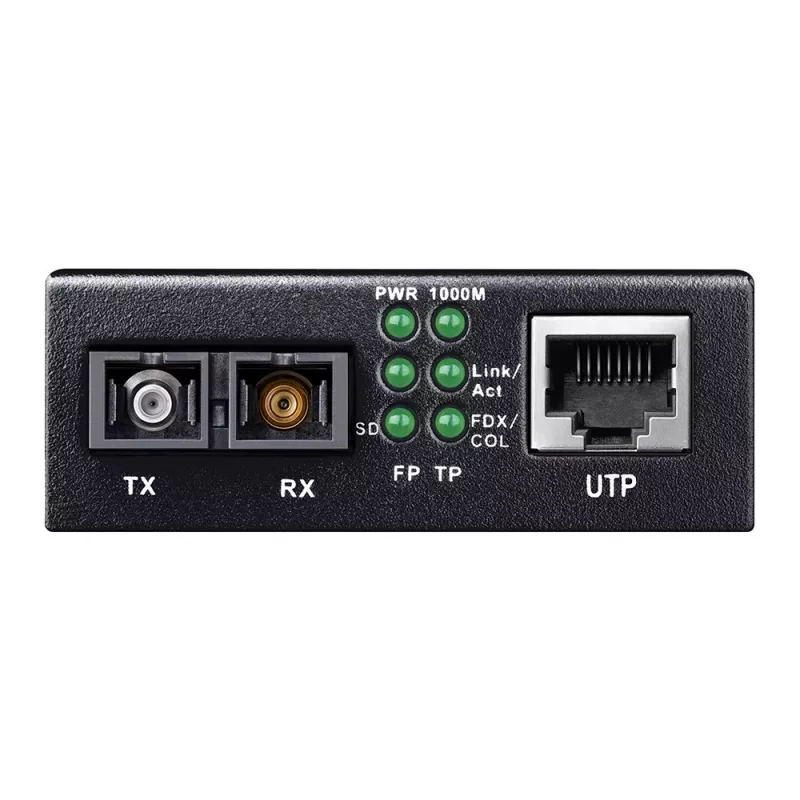

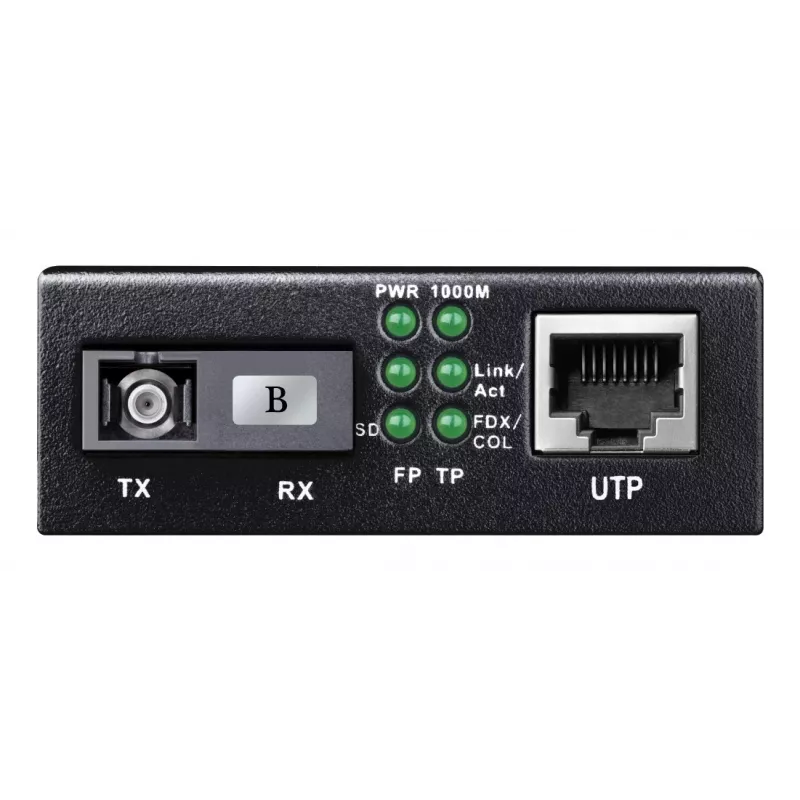

The Cudy MC100GSB-60B Gigabit Ethernet Media Converter WDM BiDi provides a 10/100/1000 Mbps fiber-to-Ethernet link for connecting buildings or long-distance industrial control systems. The converter supports both multi-mode and single-mode fiber and uses SC connectors. A and B variants operate as a pair and the device supports a maximum fiber link distance of 40,000 meters.

Advantages

This media converter supports gigabit speeds (1000 Mbit/s) over fiber, requires only a single fiber for BiDi operation, and is compatible with multi-mode and single-mode deployments. It includes one RJ-45 Ethernet port and one SC fiber port, enabling simple integration into existing wired networks. The compact black enclosure is suitable for rack or wall mounting in industrial or building-to-building scenarios.

Suitable for

• Connecting separate buildings over long distances
• Industrial control networks requiring fiber links
• Extending Ethernet networks where single-fiber BiDi is preferred
• Conversions between copper (RJ-45) and SC fiber

Key specifications

• Maximum data transfer rate: 1000 Mbit/s
• Ethernet LAN ports (RJ-45): 1
• Fiber ports quantity: 1 (SC connector)
• Supported Ethernet data rates: 10/100/1000 Mbps
• Maximum transfer distance: 40,000 m
• Fiber types: multi-mode and single-mode (BiDi)
• Colour: Black

How to use

Install one A and one B variant of the MC100GSB-60B at each fiber endpoint. Connect the SC fiber between the two converters and plug the Ethernet cable into the RJ-45 port of each unit. Power the converters according to the included power specifications and verify link and activity LEDs to confirm connectivity. Configure connected network devices as needed for gigabit operation.

Recommendations

Use appropriate fiber type and quality for the specified distance, verify polarity and BiDi pairing (A to B), and follow local safety standards when installing long-distance fiber runs to ensure stable gigabit performance.
