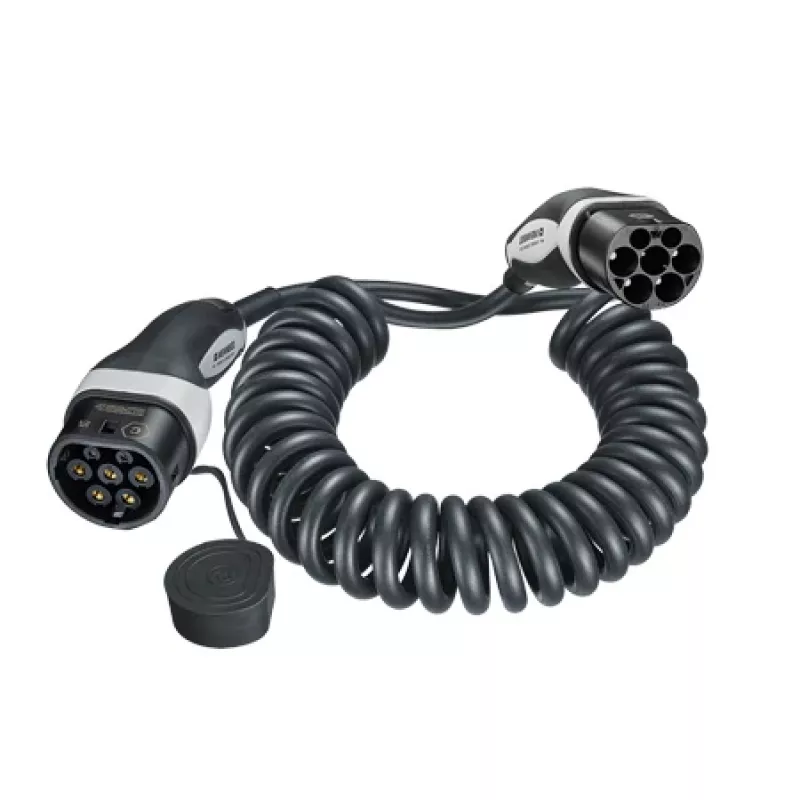

MENNEKES Mode 3 Type 2 Καλώδιο φόρτισης EV 20A 3-φασικό 4m 36437

Charging an electric vehicle with a Type 2 inlet requires a cable that reliably handles three-phase AC power up to 20 A. The MENNEKES Mode 3 charging cable delivers that with a 4-metre length, giving you flexibility at public charging stations or wallboxes.

Who is it for

This cable suits EV drivers who use Type 2 charging infrastructure and need a robust, weather-resistant connection for daily charging.

Main features

• Mode 3 AC charging with Type 2 connectors on both ends
• Supports 3-phase charging at up to 20 A (13.8 kW)
• 4 m cable length for convenient reach
• Black cable with integrated locking mechanism
• IP44 protection when connected, IP55 with protective cap

Specifications

• Charging mode: Mode 3
• Connector type (vehicle side): Type 2
• Connector type (infrastructure side): Type 2
• Maximum current: 20 A
• Number of phases: 3
• Maximum charging power: 13.8 kW
• Cable length: 4 m
• Rated voltage: 400 V AC
• Operating temperature: -30°C to +50°C
• Protection class (connected): IP44
• Protection class (with cap): IP55
• Cable type: EV07BQ-F
• Cable colour: Black
• Standards compliance: IEC 62196-2
• Application: Electric Vehicle (EV) charging
• Compatibility: All electric vehicles with a Type 2 charging port
• Safety features: Integrated locking mechanism
• Edition: 4th Edition
• Conductor cross-section (power): 2.5 mm²
• Conductor cross-section (control): 0.5 mm²

Tips

Always fully insert the connector until the locking mechanism engages to ensure a safe and reliable charge.
