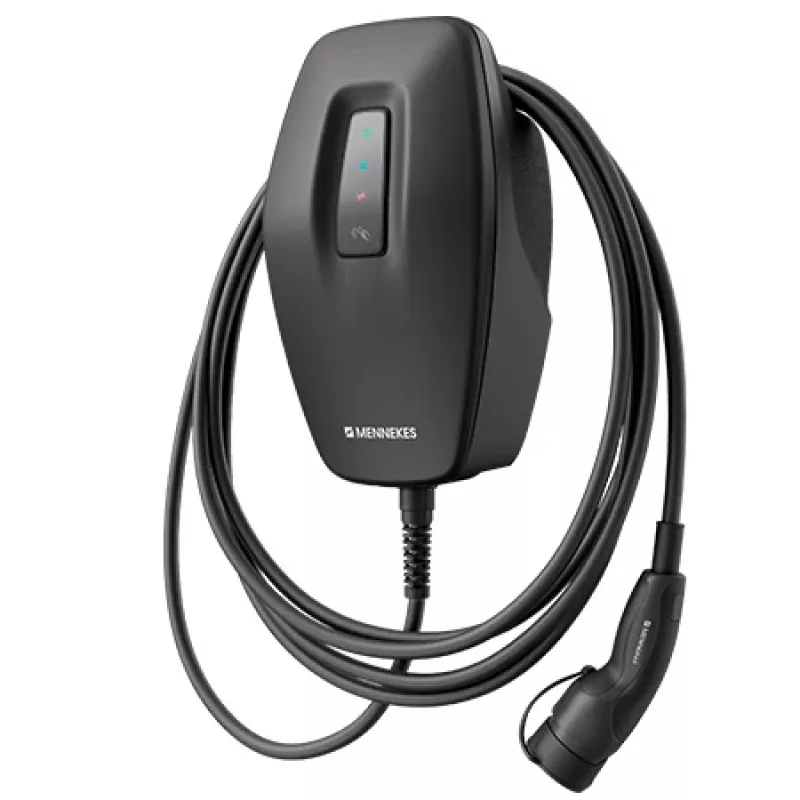

Mennekes AMTRON 4You 410 11 C2 Wallbox Mode 3 11kW

The Mennekes AMTRON 4You 410 11 C2 is a professional wallbox for electric vehicle charging in Mode 3. With 11 kW charging power and a Type 2 socket, it offers reliable and efficient charging for private and commercial use. The integrated RFID access control and OCPP 1.6 communication enable smart charging management.

Advantages

High charging power of 11 kW for fast charging; RFID access control for secure use; OCPP 1.6 compatible for integration into charging networks; integrated MID-compliant energy meter for precise billing; DC fault current detection for enhanced safety; robust IP44 and IK08 protection for outdoor installation.

Suitable for

• Electric vehicle owners with Type 2 charging capability
• Commercial parking lots, company fleets, and multi-family buildings
• Integration into smart charging networks with OCPP backend

Key specifications

• Charging power: 11 kW
• Charging mode: Mode 3
• Connector: Type 2 socket (no cable)
• Input voltage: 400 V AC (3-phase)
• Input current: 16 A
• Phases: 3-phase
• Access control: RFID
• Communication: Ethernet, Wi-Fi, OCPP 1.6
• Energy meter: Integrated, MID-compliant
• DC fault current detection: Yes (RCMB)
• Protection class: IP44
• Impact resistance: IK08
• Mounting: Wall-mounted
• Operating temperature: -25 °C to +40 °C
• Status indicator: LED
• Housing material: UV-resistant plastic
• Load management: Yes (via external controller or master/slave)

Recommendations

For optimal performance, use a dedicated 3-phase circuit with appropriate protection. Ensure the wallbox is installed by a qualified electrician. Compatible with OCPP 1.6 backends for remote monitoring and load management.
