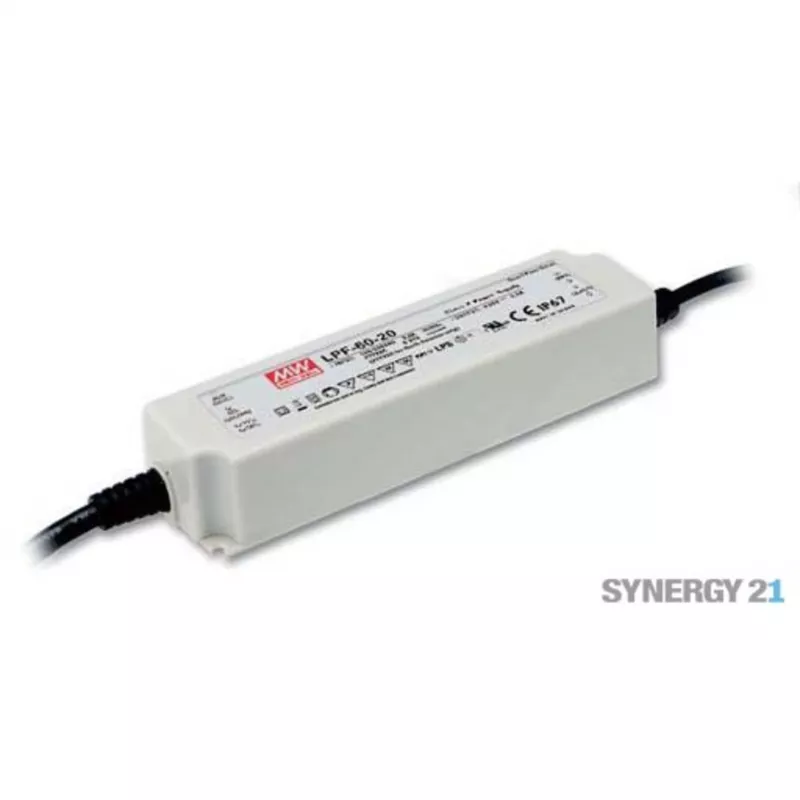

Mean Well LPF-60-24 60W 24V DC LED-Driver IP67 Σταθερή τάση + Σταθερό ρεύμα

The Mean Well LPF-60-24 is a high-performance LED driver from the LPF-60 series, delivering 60W of output power at 24V DC with a constant voltage (CV) + constant current (CC) topology. Designed for demanding indoor and outdoor applications, this driver features a wide input voltage range (90~305V AC), built-in active PFC, and an IP67 rating for dust and water ingress protection. With a lifespan of 50,000 hours and a 5-year warranty, it ensures reliable, long-term operation.

Advantages

High efficiency up to 89%, wide input range, IP67 protection, built-in active PFC, comprehensive protections (short circuit, overload, over voltage, over temperature), and 5-year warranty.

Suitable for

• LED lighting systems requiring constant voltage or constant current
• Outdoor and indoor LED fixtures (street lights, floodlights, panel lights)
• Industrial and commercial lighting applications
• Harsh environments where dust and moisture resistance is critical

Key specifications

• Output Power: 60W
• Output Voltage: 24V DC
• Output Current: 2.5A
• Input Voltage: 90~305V AC / 127~431V DC
• Input Frequency: 47~63Hz
• Efficiency: 89%
• IP Rating: IP67
• Operating Temperature: -40~+70°C
• Lifespan: 50,000 hours
• Protections: Short Circuit, Overload, Over Voltage, Over Temperature
• Housing Material: Plastic Case
• Certifications: UL, cUL, TUV, CE, CB, FCC
• Country of Origin: Taiwan

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the rated output. Suitable for use with LED modules that require 24V DC constant voltage or constant current drive.
