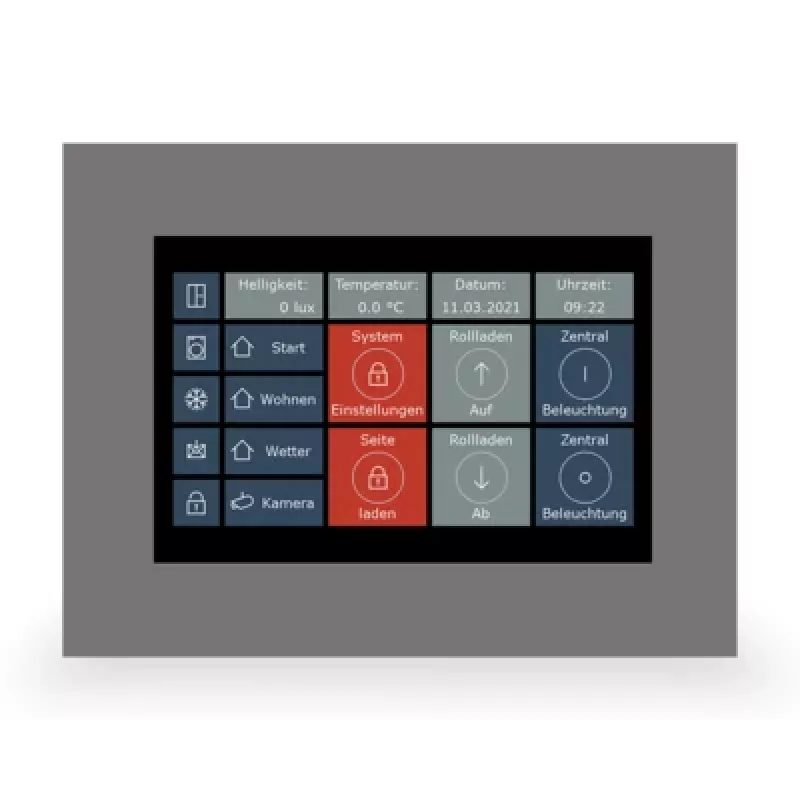

MDT VC-0701.04 Touchpanel VisuControl 7 ίντσες KNX Raumcontroller, Μαύρο

In modern smart buildings, the MDT VC-0701.04 Touchpanel VisuControl serves as a central control unit for KNX installations. With its 7-inch capacitive touchscreen and integrated sensors, it allows users to manage lighting, shading, climate, and multimedia functions directly from the wall. The panel is flush-mounted and powered via PoE or 24V DC, making it suitable for both residential and commercial environments.

Key specifications

• Display: 7" TFT LCD, 1024 x 600 pixels, capacitive touch
• Processor: Quad Core Cortex A9, 2 GB RAM, 8 GB storage
• Operating system: Android 6.0
• Connectivity: Ethernet (RJ45), KNX IP interface
• Integrated sensors: temperature and light
• Audio: built-in microphone and speaker
• Ports: 1x USB 2.0 Type A, 1x Micro USB (OTG)
• Power: PoE or 24V DC
• Housing: glass front, plastic body, black
• Protection: IP20, operating temperature 0 to +45 °C

Why choose it

The VisuControl combines a high-resolution touchscreen with a powerful processor and KNX IP interface, enabling smooth visualization and control of building functions. Integrated sensors allow automatic adjustments based on ambient conditions, while the built-in speaker and microphone support intercom and voice announcements.

Ideal use cases

• Residential smart home control
• Office meeting room management
• Hotel room automation
• Building lobby information panel

Good to know

The panel is designed for flush mounting and operates reliably within a temperature range of 0 to +45 °C. It supports Power over Ethernet, simplifying installation by reducing cabling requirements.
