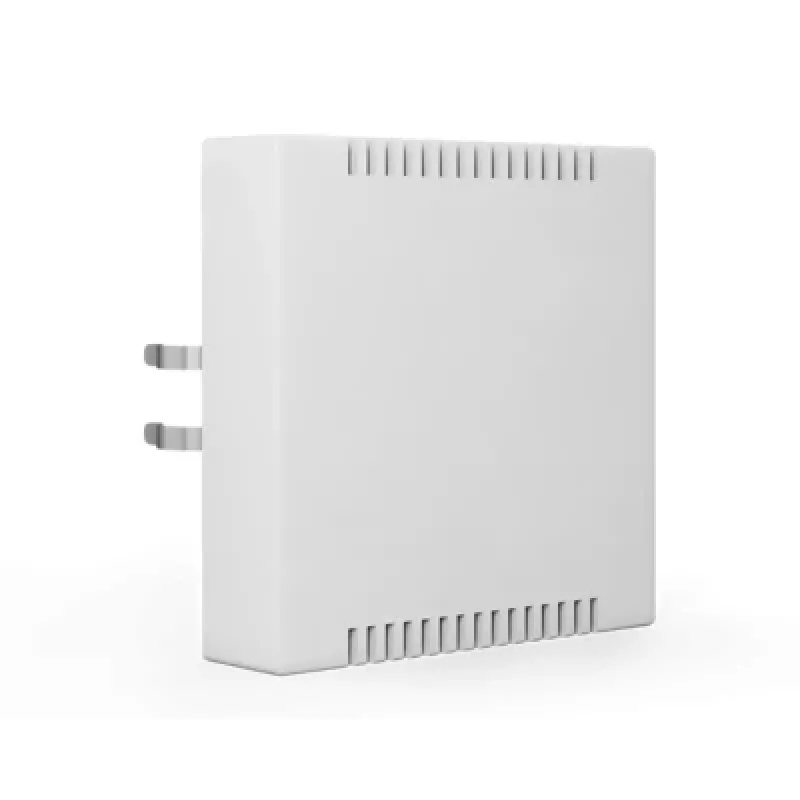

MDT SCN-RT1UP.01 KNX Θερμοστάτης χώρου, Λευκό Ματ

In a modern apartment or office, the MDT SCN-RT1UP.01 KNX Room Temperature Controller provides precise climate management from a single flush-mounted unit. It combines temperature and humidity sensing with heating, cooling, and fan control, all configured via ETS.

Key specifications

• KNX bus system (21-30V DC)
• Integrated temperature and humidity sensors
• Heating and cooling control: 2-point, PI, PWM
• Fan control: 1-stage, 2-stage, 3-stage
• Operating modes: Comfort, Stand-by, Night, Frost protection
• LCD display with backlight
• 4 capacitive touch buttons
• Setpoint range: 5–40 °C
• Temperature measurement: 0–50 °C
• Humidity measurement: 0–100 % RH
• Dew point alarm and timer functions
• Firmware update via ETS
• Compatible with standard 55x55 mm switch ranges
• Colour: Pure white matt

Why choose it

The SCN-RT1UP.01 integrates multiple climate functions into one compact device, reducing the need for separate sensors and controllers. Its capacitive touch interface and backlit LCD offer clear, intuitive operation, while the wide range of control algorithms ensures compatibility with various HVAC systems.

Ideal use cases

• Residential KNX installations for individual room climate control
• Commercial buildings requiring flexible heating/cooling management
• Retrofits where a 55x55 mm flush-mounted controller is needed

Good to know

The device is powered directly from the KNX bus and is configured entirely with ETS software. It supports dew point monitoring to prevent condensation and includes a timer for scheduled operation.
