MDT BE-TA55P806.02 Διακόπτης Plus 55 8πλός Ματ μαύρο

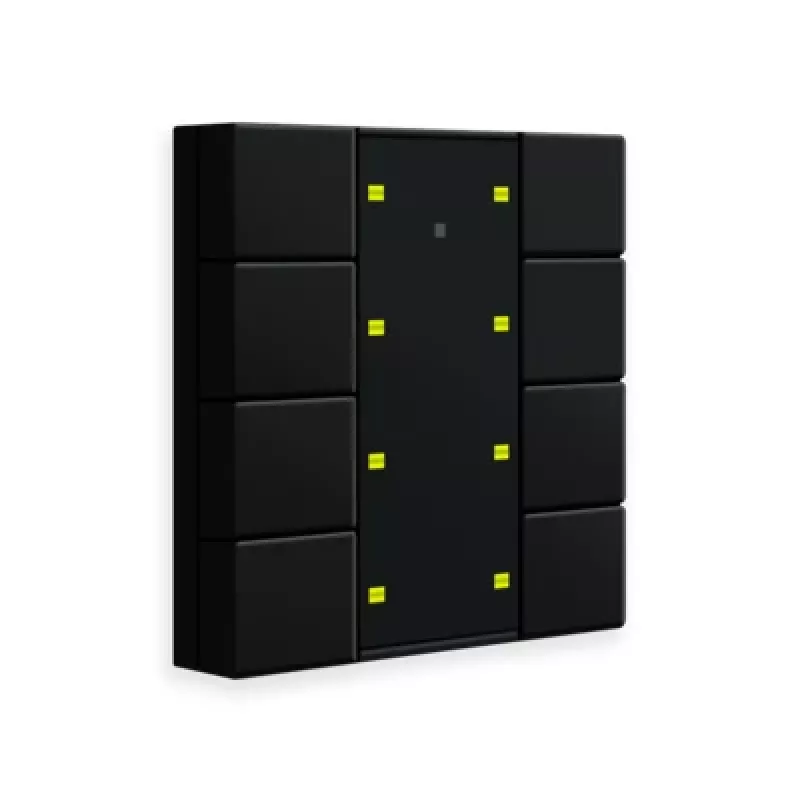

The MDT BE-TA55P806.02 is an 8-fold KNX push button with an active color display, integrating temperature, brightness, and proximity sensors for intelligent building control.

Overview

This flush-mounted device fits standard 55mm boxes and is compatible with frames from GIRA, JUNG, Berker, and Merten. It operates on the KNX bus, requiring no external power supply, and is configured via ETS5 or higher.

What stands out

• 8 configurable control points for switching, dimming, blind control, value transmission, and scene recall.
• Active color display with up to 4 configurable pages.
• Integrated sensors: temperature, brightness, and proximity.
• Matte black finish with plastic material.

Technical details

• Product type: KNX Push Button with Display
• Number of control points: 8
• Display type: Active Color Display
• Integrated sensors: Temperature, Brightness, Proximity
• Bus system: KNX
• Installation type: Flush-mounted (Standard 55mm box)
• Color: Matte Black
• Material: Plastic
• Functions per button: Switching, Dimming, Blind Control, Value Transmitter, Scene Recall (2 objects)
• Power supply: KNX Bus
• Protection class: IP20
• Operating temperature: 0 to +45 °C
• Humidity: Max. 90% non-condensing
• ETS software version: ETS5 or higher
• Frame compatibility: Compatible with 55x55mm standard frames (e.g., GIRA, JUNG, Berker, Merten)
• Integrated bus coupler: Yes
• Firmware update: Via ETS
• Display pages: Up to 4 configurable pages

Our verdict

A versatile KNX push button with display and sensors, ideal for smart building automation.
