Managed Switch Ubiquiti UniFi Pro XG 8 PoE 10G Ethernet 8 θύρες

The Ubiquiti UniFi Pro XG 8 PoE is a compact desktop or wall-mountable managed switch designed for professional networks. It provides eight 10G RJ-45 Ethernet ports plus two 10G SFP+ ports, supports Layer 2/Layer 3 switching, and offers a switching capacity of 200 Gbit/s with a MAC address table of 32,000 entries. The unit includes AC/DC power and supports Power over Ethernet (PoE) for powered devices.

Advantages

The switch combines high-density 10G copper connectivity with advanced L2/L3 management features and QoS support, enabling efficient traffic handling in demanding environments. Its compact form factor allows desktop placement or wall mounting, while an included AC/DC power supply and PoE capability simplify deployment of powered devices. A 200 Gbit/s switching capacity and a 32,000-entry MAC table support large, high-throughput networks.

Suitable for

• Small to medium enterprise core and aggregation switching
• High-performance office networks requiring 10G connectivity
• Video and storage networks with high bandwidth demands
• Deployments needing PoE to power devices such as access points and cameras

Key specifications

• Switch type: Managed (L2/L3)

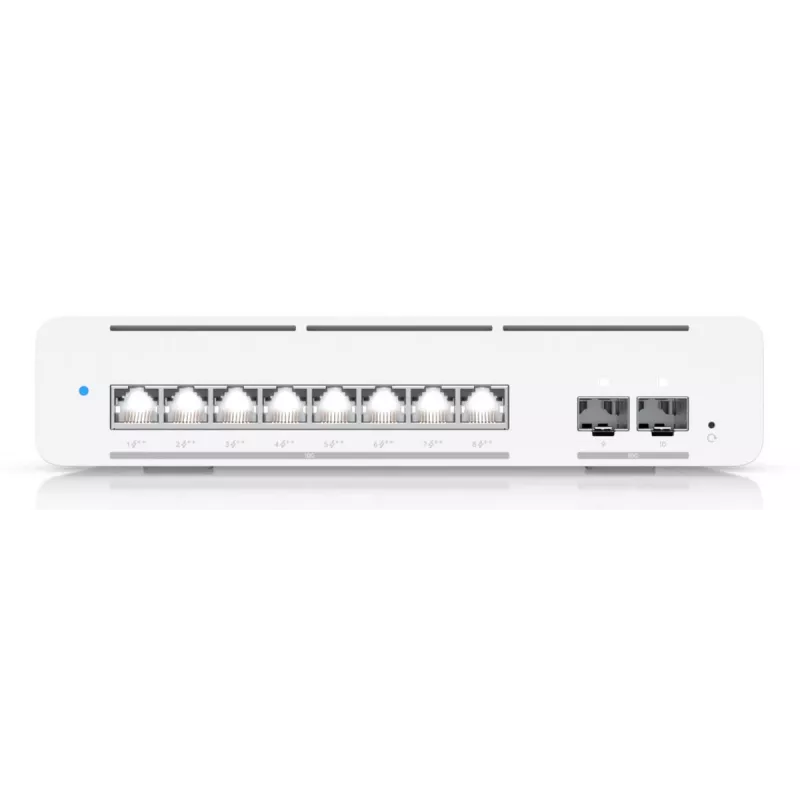

• Ports: 8 × 10G RJ-45, 2 × 10G SFP+
• Switching capacity: 200 Gbit/s
• MAC address table: 32,000 entries
• PoE: Supported (Power over Ethernet)

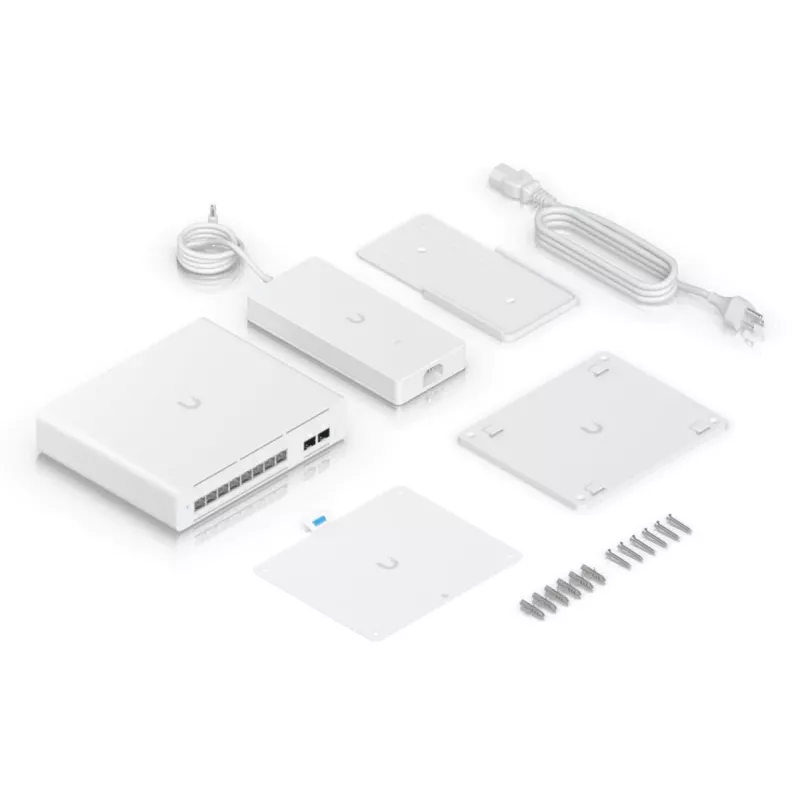

• Power: AC/DC power supply included
• Weight: 1.6 kg
• Colour: Grey

How to use

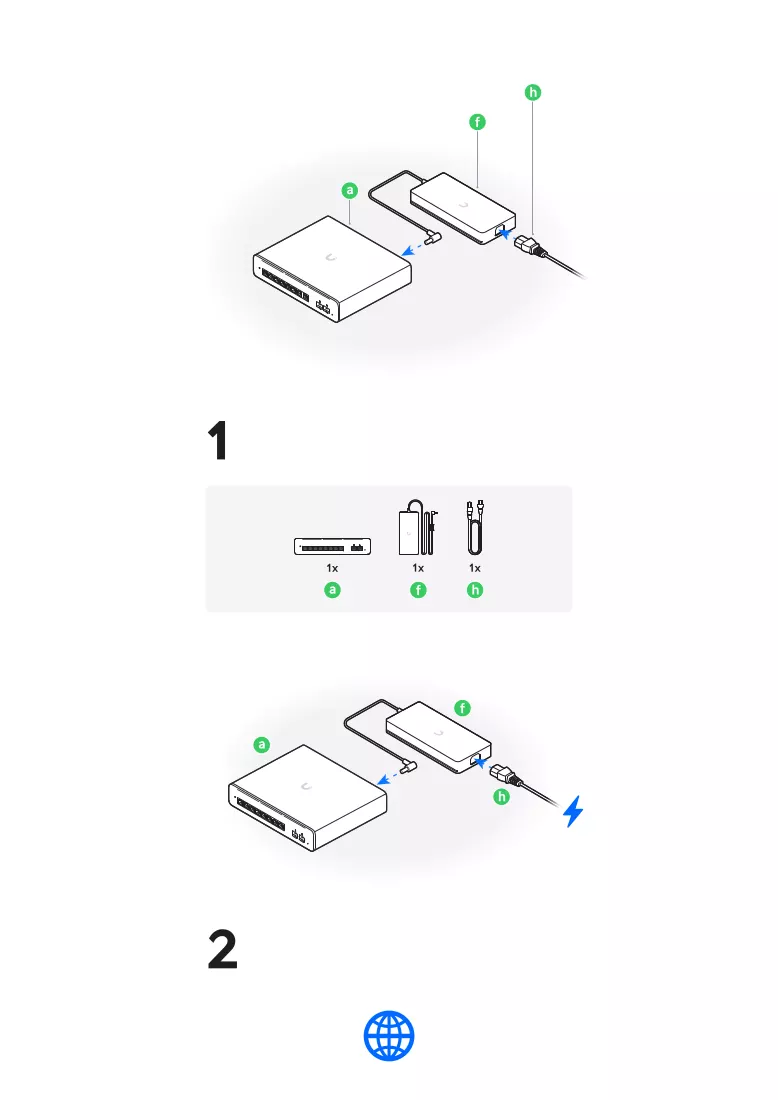

Mount the switch on a desktop or secure it to a wall using appropriate hardware. Connect uplinks and devices to the 10G RJ-45 or SFP+ ports depending on cabling and transceiver choice. Attach the included AC/DC power supply and configure the device through the management interface to set VLANs, L2/L3 routing, QoS and PoE provisioning according to network requirements. Monitor MAC table and traffic statistics via the management console.

Recommendations

Place the switch in a ventilated location with ambient temperature within the manufacturer's specified range, use shielded Cat6a/Cat7 cabling for full 10G performance over copper, and plan PoE power budget when connecting multiple powered devices.
