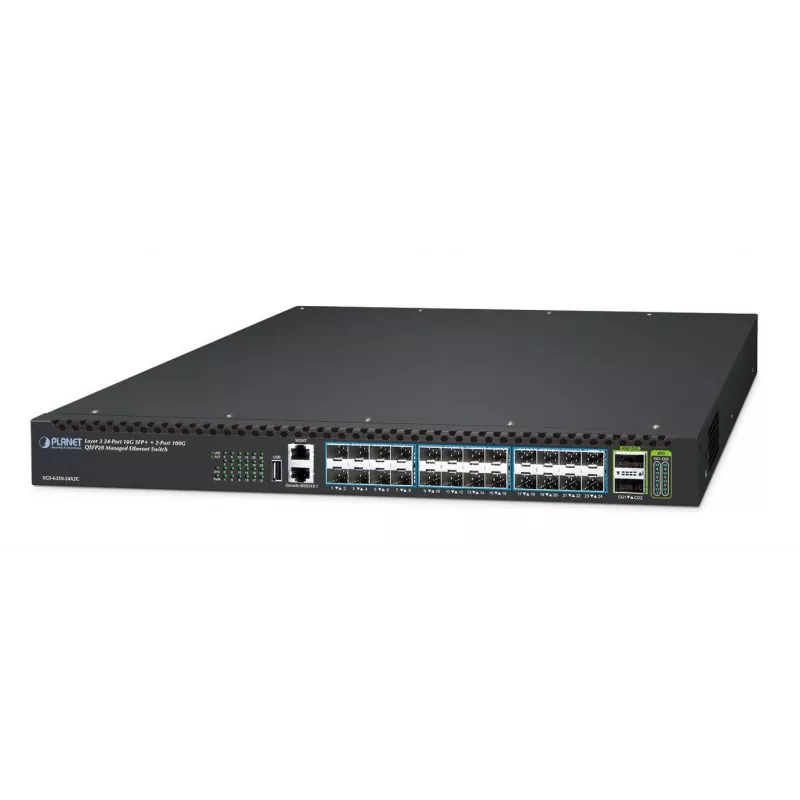

Managed Switch PLANET XGS-6350-24X2C L3 Gigabit Ethernet 1U Μαύρο

PLANET XGS-6350-24X2C is a high-performance Layer 3 managed switch in a 1U rugged chassis, offering 24 10G SFP+ ports and 2 QSFP28 ports that support 40G/100G. With 880 Gbps switching capacity and flexible transceiver options, the switch is designed for metro, data center, campus and enterprise long-reach network deployments requiring high throughput and extensible fiber connectivity.

Advantages

The XGS-6350-24X2C provides a non-blocking 880 Gbps switching architecture, comprehensive Layer 3 routing (RIP, OSPF, BGP and related protocols), full IPv6 support and advanced multicast capabilities (IGMP/MLD snooping, PIM-DM/SM/SSM). It supports redundant and hot-swappable modules including extractive AC power with an optional second AC/DC slot, in-service software upgrade (ISSU), graceful restart and fast failure detection (BFD). Management interfaces include console, web GUI, SNMP, SSH and TLS for secure remote control.

Suitable for

• Metro, carrier and telecom aggregation
• Enterprise and campus core or distribution layers
• Data center top-of-rack or leaf switches in virtualized environments
• High‑capacity servers, audio/video streaming and multicast services

Key specifications

• Form factor: 1U rack-mount, black chassis
• Ports: 24 × 10G SFP+ (dual-speed 1G/10G), 2 × QSFP28 (40G/100G, or 4×10G breakout)
• Switching capacity: 880 Gbps
• Layer: Managed Layer 3 with RIP/RIPng, OSPFv2/v3, BGP/BGP4+, PIM-DM/SM/SSM
• Multicast: IGMP v1/v2/v3 snooping, MLD v1/v2 snooping, MVR
• IPv6: Neighbor Discovery, DHCPv6, IPv6 tunnels (ISATAP), IPv6 management (Telnet/SSH/ACL)
• Redundancy: Hot-swap modules, extractive AC power supply, optional second AC/DC power, ERPS (G.8032), MSTP
• VLANs: 1K VLAN interfaces, 4K VLAN IDs, 802.1Q, Q-in-Q, voice VLAN
• Link aggregation: Up to 32 groups, 8 ports per group
• Management: Console, Web GUI, SNMP, SSHv1/v2, TLSv1.3
• Weight: 5.716 kg

How to use

Install the XGS-6350-24X2C in a standard 19-inch rack and connect SFP+/QSFP28 transceivers appropriate for the desired distance and speed. Configure basic switch settings through the Web GUI, console or CLI and register the device in your network management system via SNMP. Use the Layer 3 routing and multicast settings to define routing domains and multicast groups, and configure VLANs, link aggregation and QoS/WRR policies to match traffic and tenant requirements. For redundant power, insert the extractive AC power supply and optionally add a second AC or DC unit in the reserved slot.

Recommendations

Choose SFP+/QSFP28 transceivers based on required distance (multi-mode for short reach, single-mode or WDM for long reach) and enable ISSU, graceful restart and BFD in critical environments to minimize service interruption during upgrades or failures.
