Managed Switch LevelOne Hilbert 10-Port Industrial Gigabit PoE Smart Lite Switch

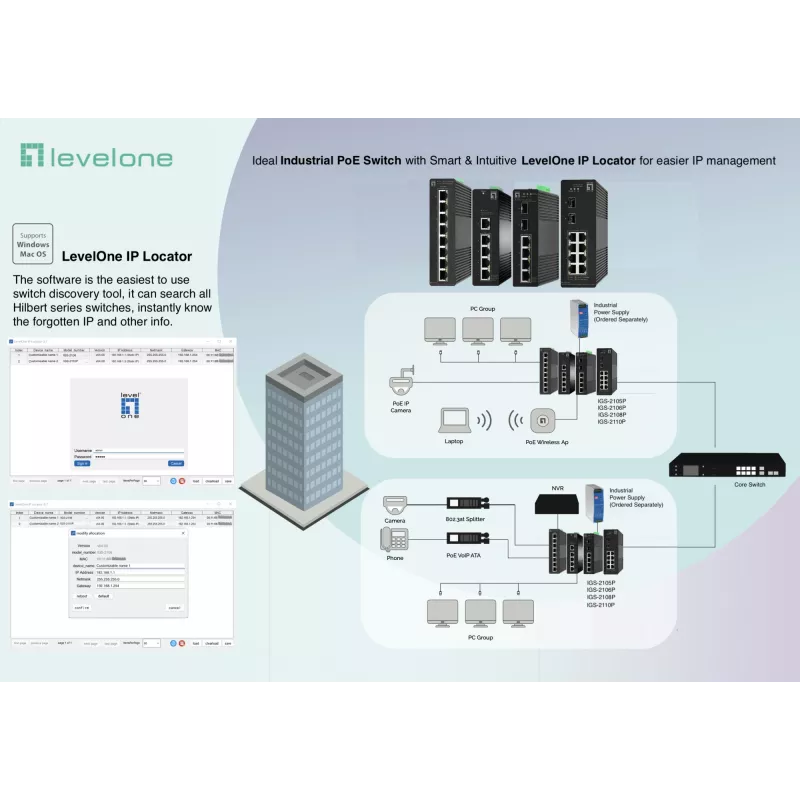

The LevelOne IGS-2110P Hilbert Industrial Gigabit PoE Smart Lite Switch is a managed L2 Ethernet switch designed for industrial environments. It provides eight Gigabit RJ45 ports with PoE+ support (802.3at/af) and two Gigabit SFP ports, a switching capacity of 20 Gbit/s and a MAC address table for up to 4000 entries. The switch supports DIN-rail mounting, operates from a 44–57 V DC input and is compatible with LevelOne IP Locator software for device discovery on Windows and macOS.

Advantages

The switch combines PoE+ power delivery and fiber uplink flexibility in a compact industrial form factor with clear status LEDs for easy monitoring. As a managed L2 device it supports common Ethernet standards (VLAN, QoS, STP) for improved network segmentation and traffic handling while maintaining a modest total cost of ownership for enterprise and industrial deployments.

Suitable for

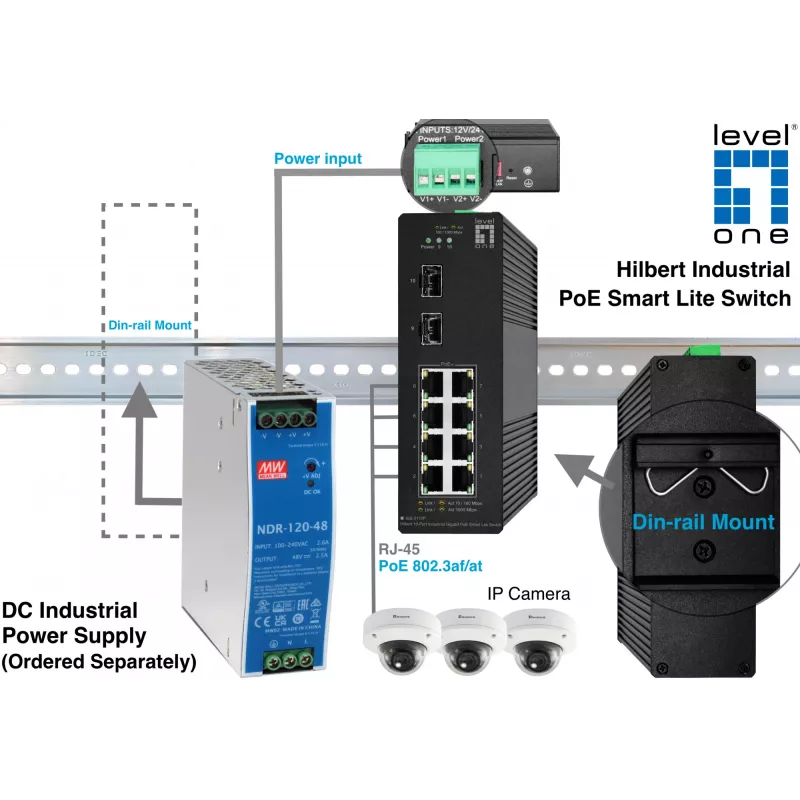

• Powering and connecting IP cameras and access points with PoE+
• Industrial automation networks requiring DIN-rail installation
• Small to medium enterprise edge switching with fiber uplink
• Environments needing managed L2 features such as VLANs and QoS

Key specifications

• Model: LevelOne IGS-2110P (Hilbert series)

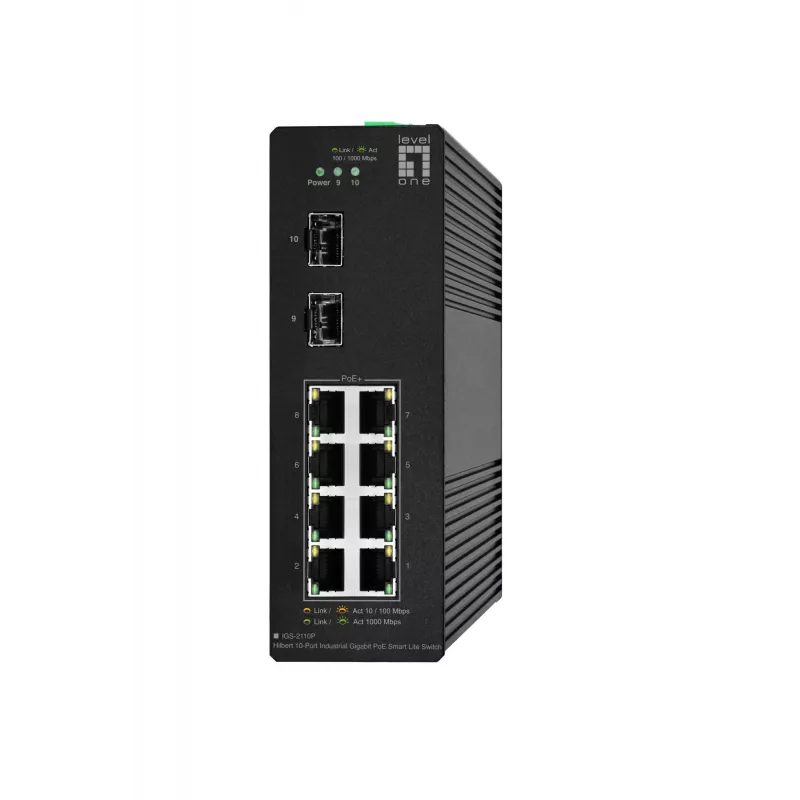

• Ports: 8 × Gigabit RJ45 with PoE+ (802.3at/af), 2 × Gigabit SFP
• Switching capacity: 20 Gbit/s
• MAC address table: 4000 entries
• Switch type: Managed, Layer 2

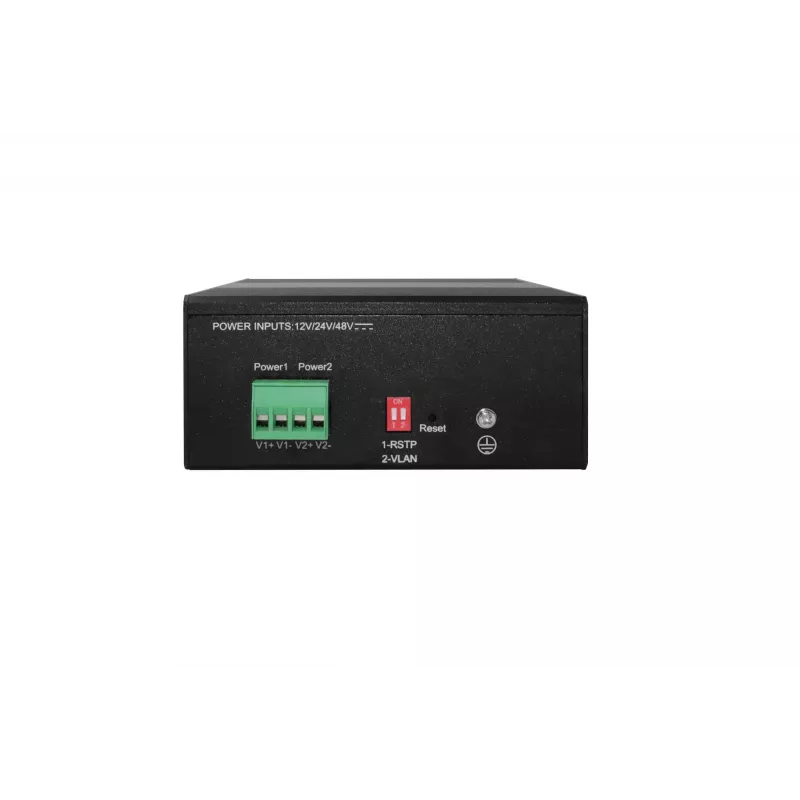

• Power input: DC 44–57 V

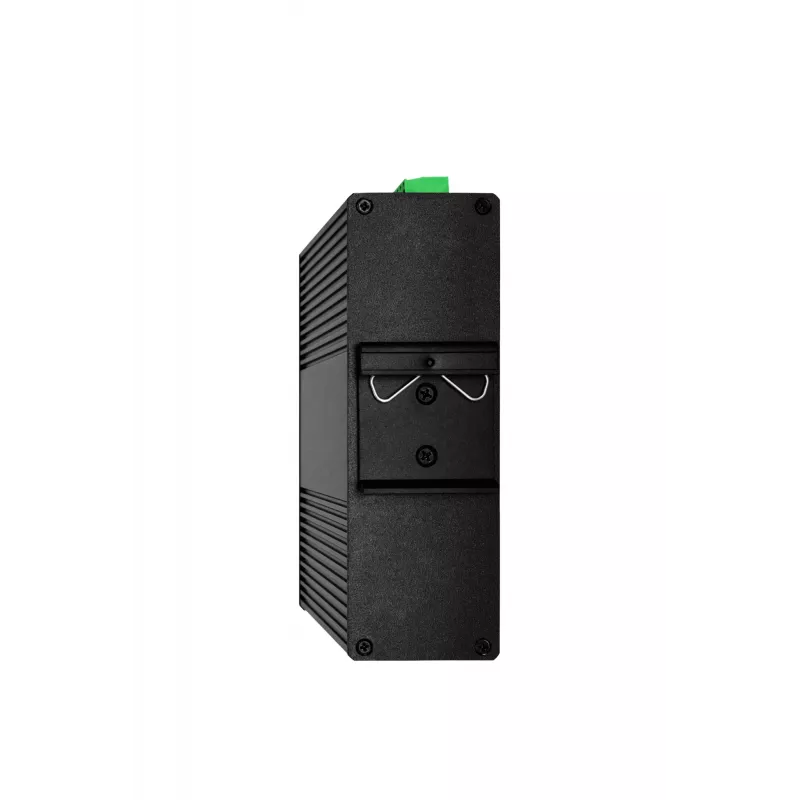

• Mounting: DIN-rail
• Weight: 0.55 kg
• Color: Black

How to use

Mount the IGS-2110P on a DIN rail in a suitable industrial enclosure and connect a compatible 44–57 V DC power source. Connect end devices to the RJ45 PoE ports and use the SFP ports for fiber uplinks where required. Access the managed interface via the network using the LevelOne discovery software or a direct IP address; configure VLANs, QoS and PoE settings according to your network design. Monitor port LEDs for link and activity status during setup and operation.

Recommendations

For reliable PoE operation, ensure the total PoE power budget meets the connected devices’ requirements and use certified SFP modules and industrial-grade power supplies. Keep firmware up to date and configure security features (management access control, VLAN segmentation) for deployments in production environments.
